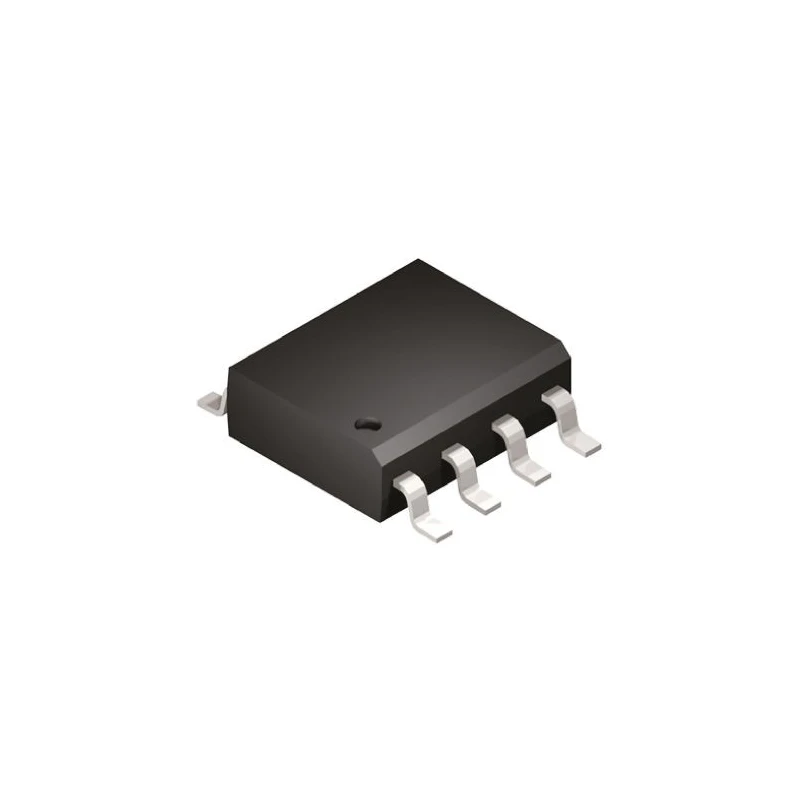

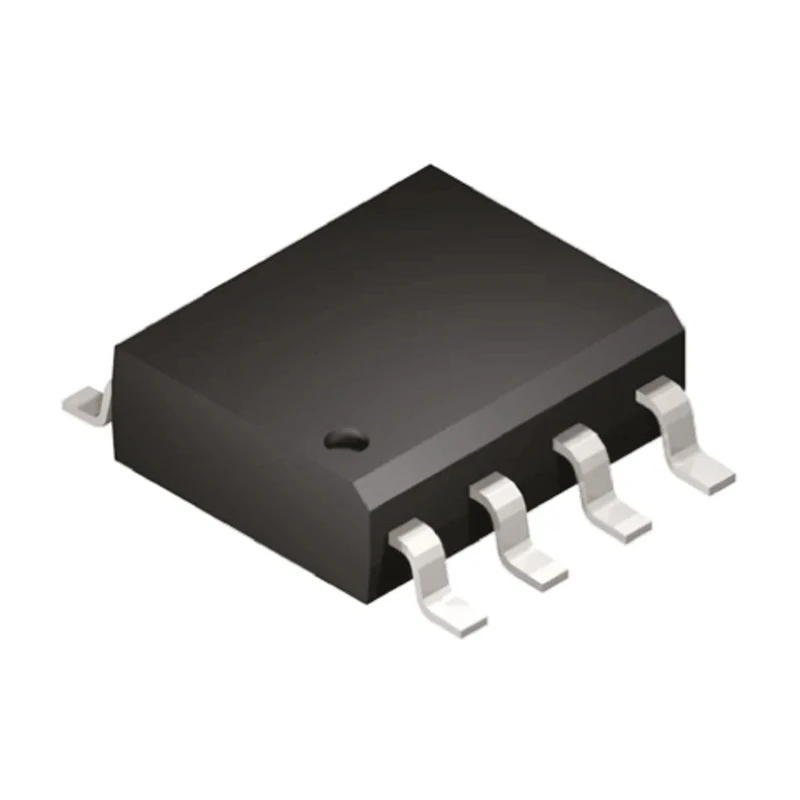

onsemi 8-Pin SOP 5-Channel Current Mode PWM Controller, 190 kHz, 10-25 V Supply FAN6300AMY
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.75mm |
| Length | 4.9mm |
| Model | FAN6300AMY |
| Width | 3.9mm |
| Mount Type | Surface |
| Output Current | 150mA |
| Topology | Flyback |
| Maximum Operating Temperature | 150°C |
| Package Type | SOP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Output Voltage | 4.5V |
| Maximum Switching Frequency | 190kHz |
| Pin Count | 8 |
| Maximum Supply Voltage | 25V |
| Minimum Supply Voltage | 10V |
| Supply Current | 4mA |
| Start-up Supply Current | 1.5mA |
| PWM Controller Type | Current Mode |
Key Features
- Maximum switching frequency is 190 kHz ensuring efficient power conversion.
- Start-up supply current is low at 1.5 mA for energy savings.
- Output voltage is 4.5 V with a 150 mA output current capable of driving diverse loads.
- Surface mount 8-pin SOP package type designed for compact PCB layouts.
- Wide operating temperature range from -40°C to 150°C supports diverse environments.
- Current mode PWM control topology for precise power regulation.
- Includes integrated soft-start and protection features for overload and short circuit conditions.
- Suitable for flyback and forward off-line and isolated DC-DC power supply designs.
Product Description
onsemi FAN6300AMY is a high-performance 8-pin SOP packaged 5-channel current mode PWM controller designed for power management applications. It supports a maximum switching frequency of 190 kHz and operates from a supply voltage range of 10 V to 25 V, making it versatile for various DC-DC converter designs.
This controller features integrated protection mechanisms including soft-start, over-voltage protection, overload protection, output short-circuit protection, overcurrent protection, voltage brownout, and undervoltage lockout. The output voltage is rated at 4.5 V with a maximum output current of 150 mA, suitable for driving power outputs efficiently.
Compact in size with dimensions 4.9 mm length, 3.9 mm width, and 1.75 mm height, the surface-mount SOP package allows for space-saving PCB integration. The operational temperature range from -40°C up to 150°C enables usage in industrial, commercial, and automotive applications where reliable power control is essential.
The PWM controller is optimized for flyback and forward topologies in switch mode power supplies (SMPS), providing line level control (LLC) and primary-side regulation features, enabling crucial energy savings.
Maximum switching frequency of 190 kHz enhances power supply efficiency. Low start-up supply current of 1.5 mA reduces power consumption at startup. Output voltage of 4.5 V and output current rating of 150 mA. Surface mount 8-pin SOP package facilitates compact design.
Wide operating temperature from -40°C to 150°C ensures durability. Advanced safety features protect against over-voltage, overcurrent, and brownout. Suitable for use in industrial and electronic power supply applications.
This product is part of onsemi's reliable power management IC portfolio, suitable for electronics manufacturing, industrial power supplies, and embedded system power regulation. It complies with no specific automotive standards but is designed for robust industrial use.
Explore more Power Management ICs and PWM controllers at EnvMart for your industrial, laboratory, and commercial power electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching frequency of this model is 190 kHz, which enhances power supply efficiency.
It operates within a supply voltage range of 10 V to 25 V, making it versatile for various applications.
The output voltage is rated at 4.5 V with a maximum output current of 150 mA, suitable for driving diverse loads efficiently.
This PWM controller has dimensions of 4.9 mm in length, 3.9 mm in width, and 1.75 mm in height.
It has a wide operating temperature range from -40°C to 150°C, supporting diverse environments.
It is available in a surface mount 8-pin SOP package type, designed for compact PCB layouts.
It includes integrated soft-start, over-voltage protection, overload protection, output short-circuit protection, overcurrent protection, voltage brownout, and undervoltage lockout.
This model supports flyback topology, making it suitable for various DC-DC converter designs.
The start-up supply current is low at 1.5 mA, contributing to energy savings during startup.
It features 5 outputs, allowing for multiple load management.
The supply current is rated at 4 mA during operation, which is efficient for power management applications.
The country of origin for this model is India.
