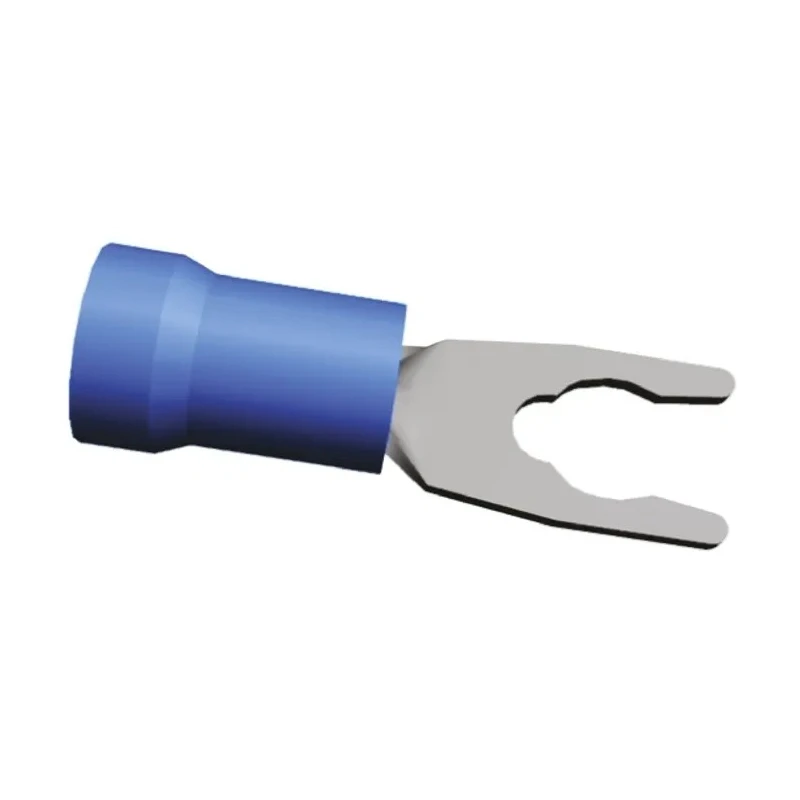

TE Connectivity PIDG Insulated Fork Terminal 16 AWG to 14 AWG M3 Stud Size Nylon Blue 52934
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.84mm |
| Model | 52934 |
| Width | 6.35mm |
| Insulation | Insulated |
| Overall Length | 20.29mm |
| Contact Material | Phosphor Bronze |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3 |
Key Features
- Precision-formed high conductivity copper body for optimal electrical performance.
- Nylon insulated sleeve provides excellent wire insulation support and protection.
- Colour-coded blue sleeve for easy wire size identification.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Funnelled wire entry design facilitates quick and reliable wire insertion.
- Suitable for use in instruments, lighting, power supplies, panel boxes, motors, aerospace, and appliances.
- Contact plating with tin enhances corrosion resistance and conductivity.
- Contact material made from phosphor bronze for durability and reliability.
Product Description
TE Connectivity 52934 PIDG insulated fork terminal is designed for reliable and uniform crimping in demanding circuit environments. It supports wire sizes from 16 AWG to 14 AWG and features an M3 stud size for versatile terminal connections. The terminal includes a precision-formed high conductivity copper body and barrel with a copper sleeve surrounded by a blue nylon insulation sleeve to provide enhanced wire insulation support and durability.
The terminal's wire barrel contains serrations that maximize contact and tensile strength, ensuring secure and long-lasting electrical connections. The funnelled wire entry prevents wire strand damage and facilitates fast insertion during production. The blue nylon sleeve is colour-coded for easy wire size and tooling identification, simplifying installation and maintenance.
These terminals meet or exceed MIL-T-7928, Type II, Class 1 and 2 specifications, making them suitable for a wide range of applications including industrial instrumentation, lighting fixtures, power supply panels, transportation equipment, lifting machinery, motors, aerospace components, and household appliances.
High conductivity copper body and barrel for excellent electrical performance. Copper sleeve enhances wire insulation support after crimping. Colour-coded nylon sleeves aid in fast identification and correct tooling. Serrated barrel ensures maximum contact and tensile strength.
Funnelled wire entry supports easy and secure wire insertion. Suitable for diverse industrial, aerospace, and commercial applications. Tin-plated contacts to prevent corrosion and improve conductivity. Constructed with durable phosphor bronze contact material for long-term use.
Compact design with a 20.29 mm overall length and 0.84 mm thickness. Blue nylon insulation for wire size 16 AWG to 14 AWG with M3 stud compatibility.
This TE Connectivity PIDG insulated Fork Terminal is a robust and reliable solution for wire termination needs in demanding electrical assemblies, offering excellent mechanical strength and electrical performance. Explore more connectors and wire terminals in our Electronics & Electricals category for comprehensive wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal supports wire sizes from 16 AWG to 14 AWG, which corresponds to a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
The terminal is compatible with M3 stud size connections, making it versatile for various applications.
The terminal features a high conductivity copper body and barrel, with a contact material made from phosphor bronze. It also has a tin plating for enhanced corrosion resistance and conductivity.
The overall length of this terminal is 20.29 mm, and it has a thickness of 0.84 mm.
The funnelled wire entry design facilitates quick and reliable wire insertion while preventing damage to wire strands during the crimping process.
The terminal is insulated with a nylon sleeve, which provides excellent wire insulation support and protection.
This terminal is suitable for a wide range of applications including industrial instrumentation, lighting fixtures, power supply panels, transportation equipment, motors, aerospace components, and household appliances.
The nylon sleeve is colour-coded blue for easy identification of the wire size, which aids in installation and maintenance.
This terminal meets or exceeds MIL-T-7928, Type II, Class 1 and 2 specifications, ensuring reliability in demanding circuit environments.
The serrated wire barrel maximizes contact and tensile strength after crimping, ensuring secure and long-lasting electrical connections.
The terminal is manufactured in India.
Key features include a precision-formed copper body, nylon insulation, a funnelled wire entry, and a serrated wire barrel for secure connections.
