Molex 2759 Series Female Crimp Terminal, 30 AWG Min, 22 AWG Max, Gold Plated Brass, Crimp Termination 08-55-0102

Free Delivery in India | Lowest Global Shipping Charges

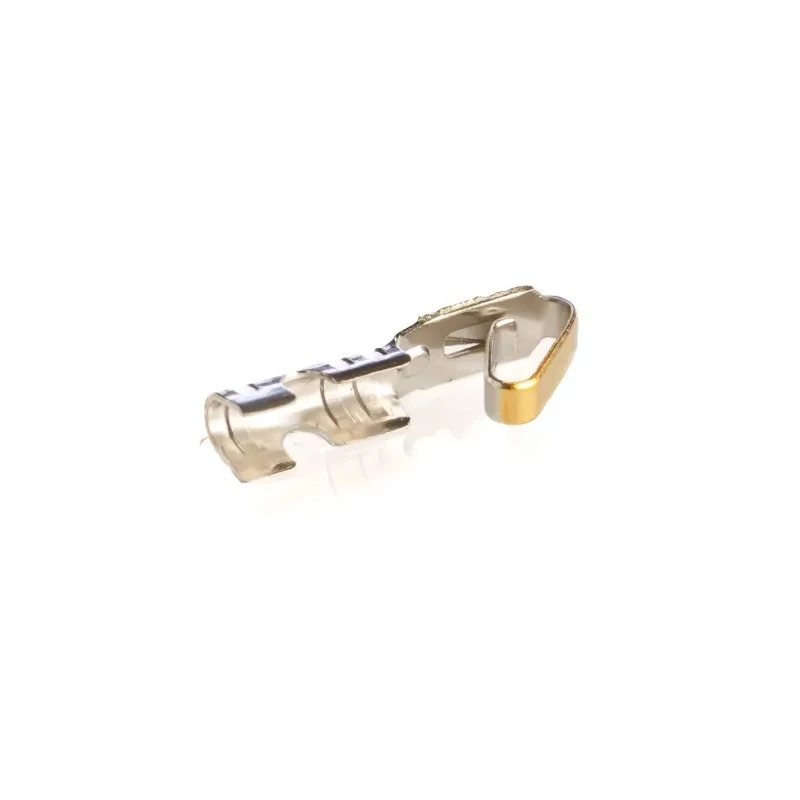

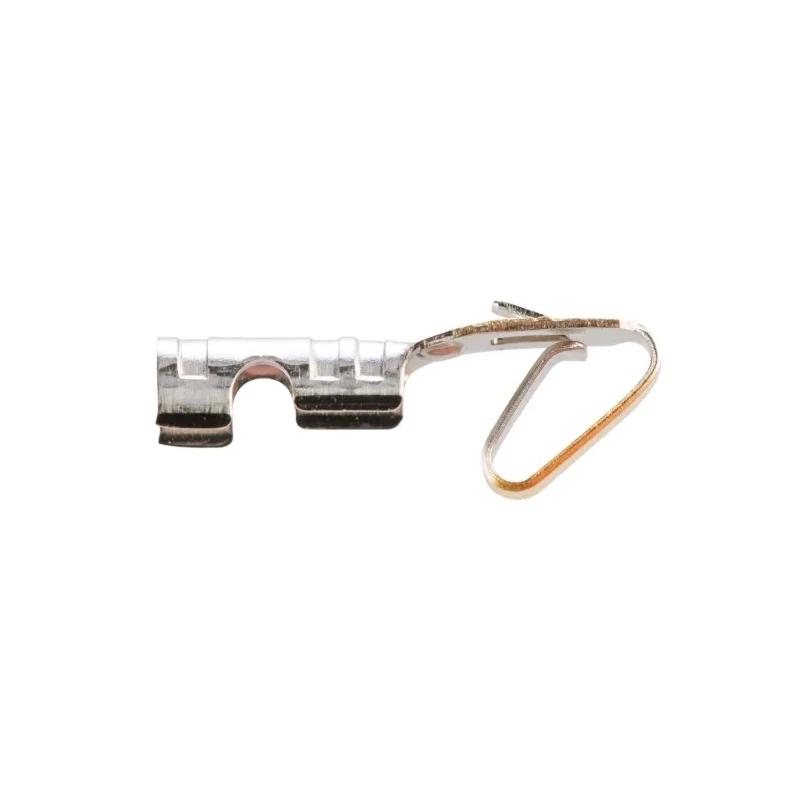

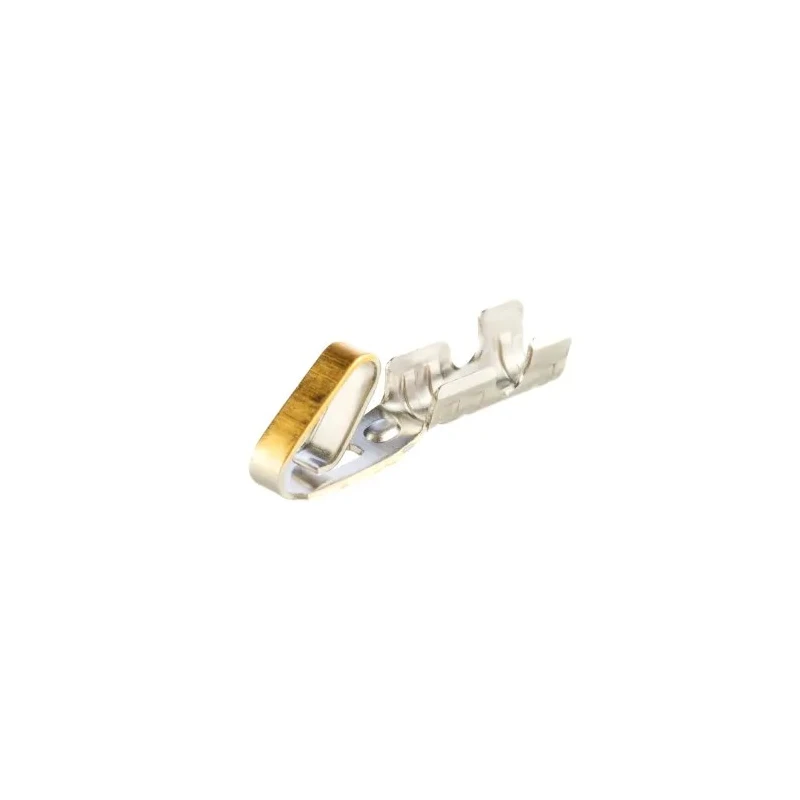

Molex 2759 Series Female Crimp Terminal, 30 AWG Min, 22 AWG Max, Gold Plated Brass, Crimp Termination 08-55-0102

Name: Molex 2759 Series Female Crimp Terminal, 30 AWG Min, 22 AWG Max, Gold Plated Brass, Crimp Termination 08-55-0102
Brand: Molex
SKU: 126020
Price: 0.1 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	India
Brand	Molex
Current	4A
Gender	Female
Contact Material	Brass
Series	2759
Termination Type	Crimp
Maximum Operating Temperature	75°C
Minimum Operating Temperature	-40°C
For Use With	KK 254 Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10

Key Features

Compatible with KK 254 Connector Housing for secure wire termination.
Rated for 4A current carrying capacity.
Gold plated contacts ensure corrosion resistance and dependable conductivity.
Brass contact material offers mechanical strength and durability.
Operates reliably between -40°C and 75°C temperature range.
Termination is achieved by crimping for efficient and firm wire connection.
Ideal for board-to-board and wire-to-board signal connections in automotive and electronic devices.
A reel of 100 units supports assembly lines and repair workshops.

Product Description

Molex 08-55-0102 Female Crimp Terminal, part of the 2759 Series, is designed for crimp termination of wires sized from 30 AWG minimum to 22 AWG maximum. It is gold plated on the contact surface and constructed with brass material to offer high conductivity, corrosion resistance, and mechanical durability. This crimp contact is intended for reliable use with KK 254 connector housings in a variety of industrial and electronic applications.

The terminal supports current ratings up to 4A and features a termination type that uses crimping to secure the wire connection effectively. It operates efficiently under temperature conditions ranging from -40°C to 75°C, suitable for varying environments.

The dual cantilever contact design provides spring-like multiple contact points enhancing the electrical connection reliability. The gold plating on mating sections enhances corrosion resistance and durability in harsh conditions. This product also uses low-halogen materials improving safety for sensitive consumer and medical electronic products.

Available in reels of 100 units, this terminal is suitable for high-volume assembly lines, providing consistent quality and ease of use in manufacturing, repair, and prototyping workshops.

Typical applications include automotive wiring systems, domestic appliances, machine building, and communications and networking equipment. Its robust construction and precise contact system make it ideal for board-to-board and wire-to-board signal connections in diverse industrial and electronic scenarios.

Compatible with KK 254 Connector Housing. Gold plated brass contacts for conductivity and durability. Crimp termination type for secure wire attachment. Current rating up to 4A. Operates between -40°C and 75°C. Low-halogen materials enhance safety.

Designed for 30 to 22 AWG wire sizes. Reel of 100 units for assembly use. Dual cantilever contact design for reliable connection. Explore more Molex electronic connectors at EnvMart to find compatible components and tools for your industrial and electronic projects.
