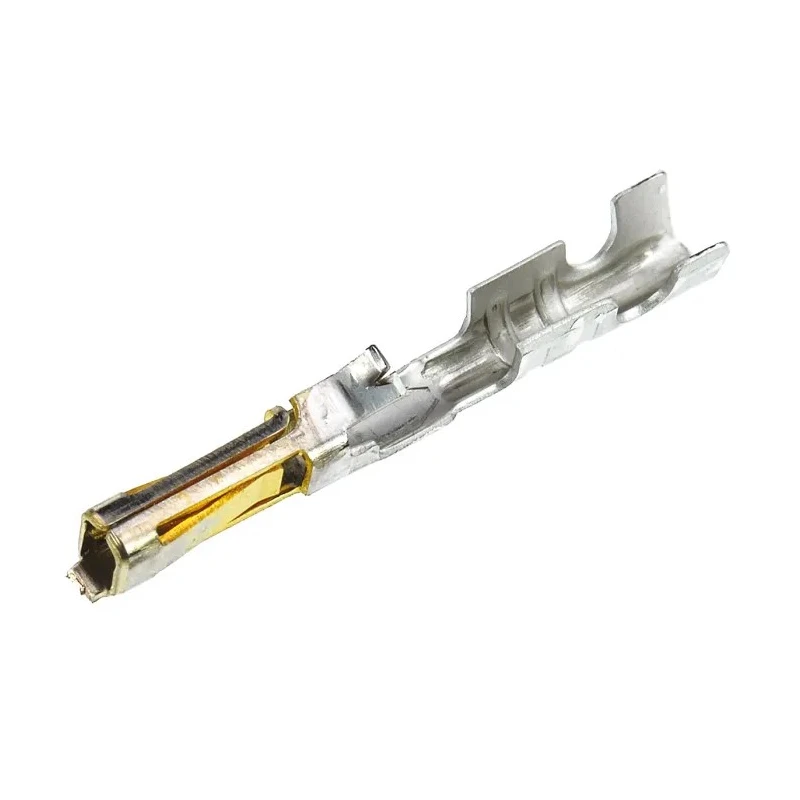

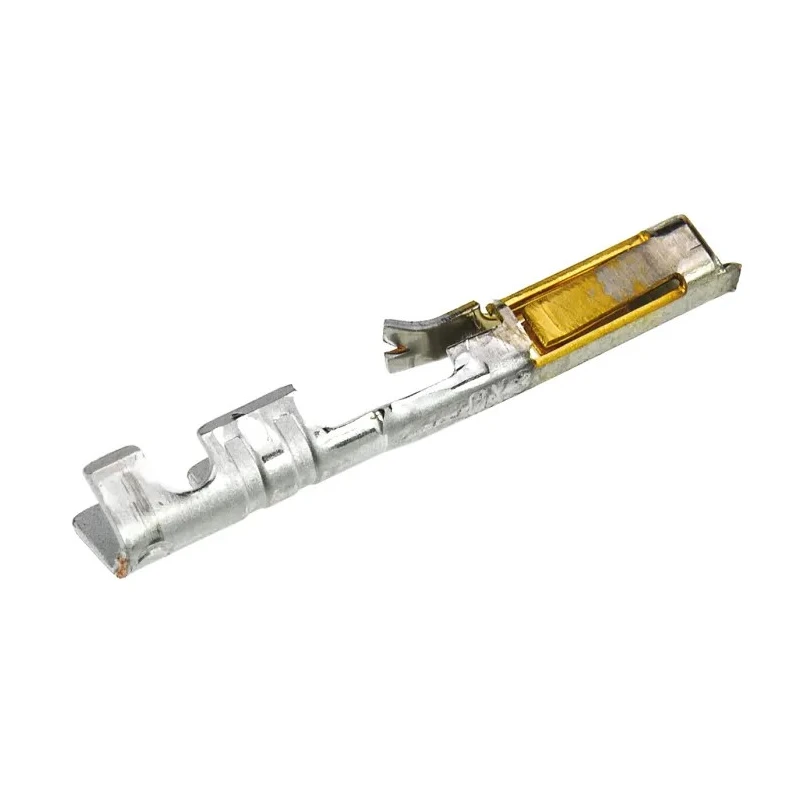

Molex 70058 Series Female Crimp Terminal, 3A Current, 24 AWG Min, 22 AWG Max, Gold Plated, Phosphor Bronze 16-02-0088
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Standards/Approvals | EU RoHS, CHINA RoHS |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Compatible with SL Connector Housing for versatile applications.
- Accommodates wire sizes from 24 AWG minimum to 22 AWG maximum for flexibility.
- Gold-plated contact plating provides corrosion resistance and reliable conductivity.
- Loads currents up to 3 amperes safely and efficiently.
- Operates reliably between -40°C and 105°C for a wide range of environments.
- Phosphor bronze contact material ensures strength and excellent electrical performance.
- Low maximum contact resistance of 15 milliohms reduces signal loss.
- Designed with a crimp termination type for secure and easy installation.
Product Description
Molex 16-02-0088 female crimp terminal, part of the 70058 series, provides a high-quality electrical connection specifically engineered for linking wires to printed circuit boards (PCBs) reliably. This terminal supports wire gauges from 24 AWG minimum to 22 AWG maximum, enabling versatile use across various electronic assembly applications.
Constructed with phosphor bronze, this terminal combines mechanical strength with excellent electrical conductivity. The gold-plated contact surfaces ensure robust resistance to corrosion, oxidation, and wear, crucial for maintaining signal integrity over time.
The terminal is rated for a maximum current capacity of 3 amperes and functions effectively within an operational temperature range of -40°C to 105°C, suitable for consumer electronics, automotive equipment, and industrial machinery environments.
Installation is simplified via the crimp termination method that guarantees secure wire retention and stable electrical contact. The product complies with stringent RoHS environmental directives, including EU RoHS and China RoHS standards, reassuring users of eco-friendly manufacture.
This terminal is compatible with SL Connector Housings, facilitating integration into existing connector systems without requiring additional modification. Compatible with SL Connector Housing for a flexible connection solution.
Suitable for wire sizes 24 AWG minimum to 22 AWG maximum for application diversity. Gold plating protects contacts against oxidation for long-term reliability. Supports a maximum current of 3A ensuring safe power delivery.
Phosphor bronze material offers durability and excellent conductivity. Operates reliably across harsh temperature ranges from -40°C to 105°C. Low maximum contact resistance of 15mΩ minimizes power losses. Crimp-type termination supports secure and fast installation.
Meets EU and China RoHS standards for environmental compliance. Manufactured in the United States guarantees premium quality control.
This Molex crimp terminal is widely applicable in industries such as consumer electronics manufacturing, automotive electrical systems, HVAC controls, and general industrial equipment requiring reliable wire-to-board connections. Its robust construction and precision design make it an ideal choice for engineers and technicians seeking durable and efficient connectors.
Explore more Molex connectors and crimp terminals on EnvMart for high-performance electronic assembly solutions.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a maximum current capacity of 3 amperes.
It accommodates wire sizes from 24 AWG minimum to 22 AWG maximum, providing flexibility for various applications.
This terminal operates reliably within a temperature range of -40°C to 105°C.
The contacts are made of phosphor bronze, which ensures strength and excellent electrical performance.
It features a crimp termination type, which allows for secure and easy installation.
The maximum contact resistance is 15 milliohms, which helps minimize signal loss.
Yes, it complies with EU RoHS and China RoHS standards, ensuring eco-friendly manufacture.
This terminal is compatible with SL Connector Housings, facilitating integration into existing systems.
This crimp terminal is manufactured in the United States.
The contacts are gold plated, providing corrosion resistance and reliable conductivity.
It is suitable for applications in consumer electronics, automotive equipment, HVAC controls, and general industrial equipment.
Specific dimensions and weight details are not provided in the available data.
