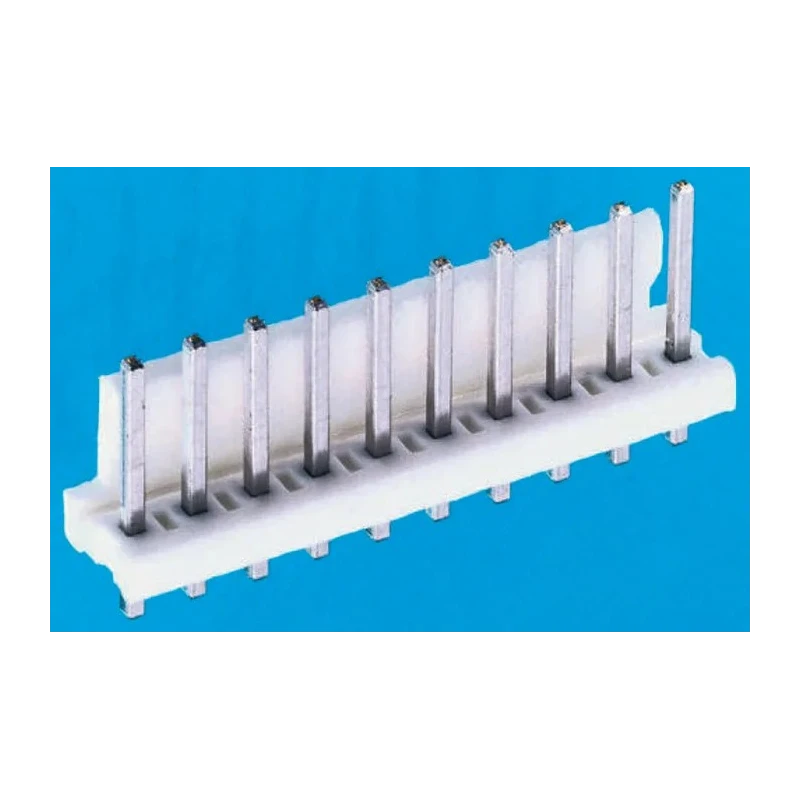

TE Connectivity MTA-156 Series Straight Through Hole Pin Header 10 Contacts 3.96 mm Pitch 1 Row Unshrouded 1-644752-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 4.45mm |
Key Features
- This pin header features a single row with unshrouded male contacts for easy soldering.
- Constructed with a glass filled polyester housing for enhanced durability and insulation.
- The copper alloy contact material is plated with tin for corrosion resistance.
- Rated for 7A current and designed for operation between -65°C and 105°C temperatures.
- Mount type is through hole, allowing secure PCB insertion and solder termination.
- The tail pin length is 4.45 mm, supporting standard PCB mounting depths.
- End-to-end stackable with friction lock mechanism ensures secure mating with IDC connectors.
- Ideal for automotive body, chassis, driver safety systems, and consumer electronics like PCs and servers.
Product Description
TE Connectivity 1-644752-0 MTA-156 Series straight through hole pin header is a high-quality PCB connector designed for efficient mass termination of wires in wire-to-board applications. Featuring a 3.96 mm pitch and 10 male contacts arranged in a single row, this unshrouded pin header enables easy and reliable solder termination through its through hole mount type.
The housing is made from glass filled polyester, offering robust insulation and mechanical strength suitable for industrial and electronic environments. Contacts are manufactured from copper alloy and finished with tin plating to ensure optimal conductivity and resistance to corrosion.
Electrical specifications include a current rating of 7 amps and a voltage rating of 600 volts, with operational temperature range from -65°C to 105°C, supporting a wide variety of demanding applications. The tail pin length of 4.45 mm facilitates secure mechanical and electrical connection to printed circuit boards.
This MTA-156 series header is end to end stackable and includes a friction lock mechanism for secure mating with the corresponding IDC connectors, simplifying and speeding up assembly processes while minimizing wiring errors.
Typical applications span automotive body and chassis systems, driver information and safety systems, as well as computer and consumer electronics including desktop PCs, notebooks, servers, storage units, and workstations.
This product enables cost-effective mass termination of wires with consistent connection quality. Durable materials ensure long service life under industrial operating conditions. Designed for compatibility in the TE Connectivity MTA-156 IDC connector system.
The unshrouded format allows direct access to male contacts for flexible PCB designs. Supports a broad range of discrete wire gauges from 26 AWG to 18 AWG when used with appropriate IDC connectors.
Select this pin header for reliable, industry-standard connections in demanding electronic and automotive applications. Browse EnvMart’s extensive catalog of PCB connectors and electronic components for more options.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header is rated for a current of 7 amps.
It has a voltage rating of 600 volts.
The contact pitch is 3.96 mm.
The tail pin length is 4.45 mm, suitable for standard PCB mounting depths.
The housing is made from glass filled polyester, and the contacts are copper alloy plated with tin.
It operates within a temperature range of -65°C to 105°C.
This model features 10 male contacts arranged in a single row.
It uses a through hole mount type for secure PCB insertion and solder termination.
Yes, it is designed for end-to-end stacking and includes a friction lock mechanism for secure mating with IDC connectors.
It supports solder termination for reliable connections.
This pin header is suitable for automotive body and chassis systems, driver safety systems, and consumer electronics like PCs and servers.
The country of origin for this pin header is India.
