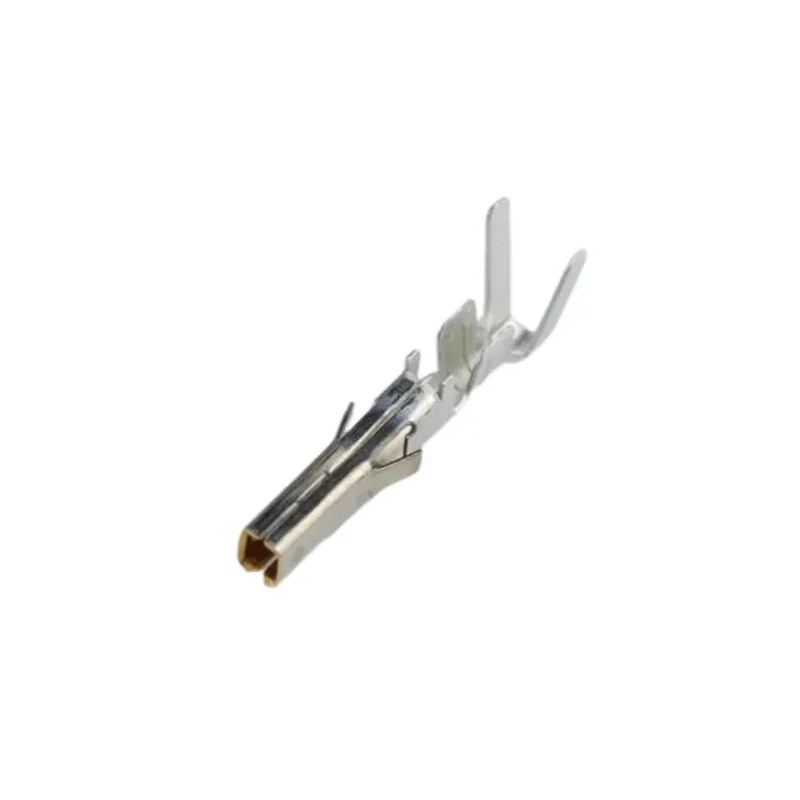

Molex 5556 Series Female Crimp Terminal for Mini-Fit TPA and Mini-Fit BMI Connector Housings, 28 AWG Min, 22 AWG 39-00-0183
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
| Molex 5556 Series Female Crimp Terminal, 28 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Suitable for 9A current applications in Mini-Fit Junior connectors.
- Gold plated contacts ensure reliable electrical connectivity.
- Phosphor Bronze contact material provides durability and conductivity.
- Operating temperature range from -40°C to 105°C for various environments.
- Crimp termination type with locking tangs for secure housing fitment.
- Maximum contact resistance is 10 milliohms for efficient conduction.
- Designed for automotive, industrial, medical, communication and consumer electronics applications.
Product Description
Molex 39-00-0183 is a female crimp terminal from the 5556 Series, engineered for use with Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Junior plugs and receptacles. The crimp terminal supports wire sizes from 28 AWG minimum to 22 AWG maximum, facilitating current up to 9A.
The terminal features gold plating on phosphor bronze contacts, ensuring a reliable electrical connection with low contact resistance of 10 milliohms. Locking tangs secure the contact firmly within the connector housing, contributing to mechanical stability and consistent conductivity.
Its operating temperature range spans from -40°C to 105°C, making it suitable for a range of industrial and automotive environments. The crimp termination facilitates quick and effective wire attachment with consistent performance.
These Crimp Contacts are widely used in industries including automotive, industrial automation, medical devices, communications, networking, and consumer electronics. Their reliable design supports demanding applications requiring secure and efficient electrical connections.
Suitable for 9A current applications in Mini-Fit Junior connectors. Gold plated contacts ensure reliable electrical connectivity. Phosphor Bronze contact material provides durability and conductivity. Operating temperature range from -40°C to 105°C for various environments.
Crimp termination type with locking tangs for secure housing fitment. Maximum contact resistance is 10 milliohms for efficient conduction. Designed for automotive, industrial, medical, communication and consumer electronics applications.
These Molex 5556 Series terminals provide dependable performance across industrial, automotive, medical, and communication sectors. Check related products and categories at EnvMart for compatible connectors and crimping tools.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 9A.
This terminal supports wire sizes from 28 AWG minimum to 22 AWG maximum.
The contact material used in this crimp terminal is phosphor bronze.
The operating temperature range for this crimp terminal is from -40°C to 105°C.
This terminal uses a crimp termination type with locking tangs for secure fitment.
The maximum contact resistance for this terminal is 10 milliohms.
This crimp terminal is designed for use with Mini-Fit TPA and Mini-Fit BMI connector housings, as well as Mini-Fit Junior plugs and receptacles.
The contacts of this terminal are gold plated, ensuring reliable electrical connectivity.
This terminal is suitable for applications in automotive, industrial, medical, communication, and consumer electronics sectors.
This crimp terminal is female in gender.
This crimp terminal is manufactured in the United States.
This crimp terminal belongs to the Molex 5556 Series.
