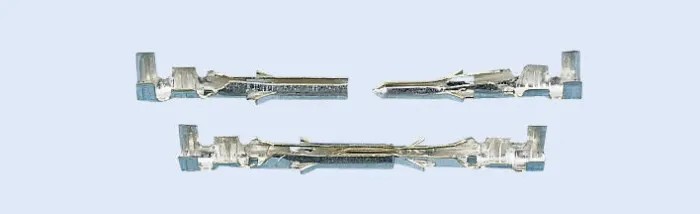

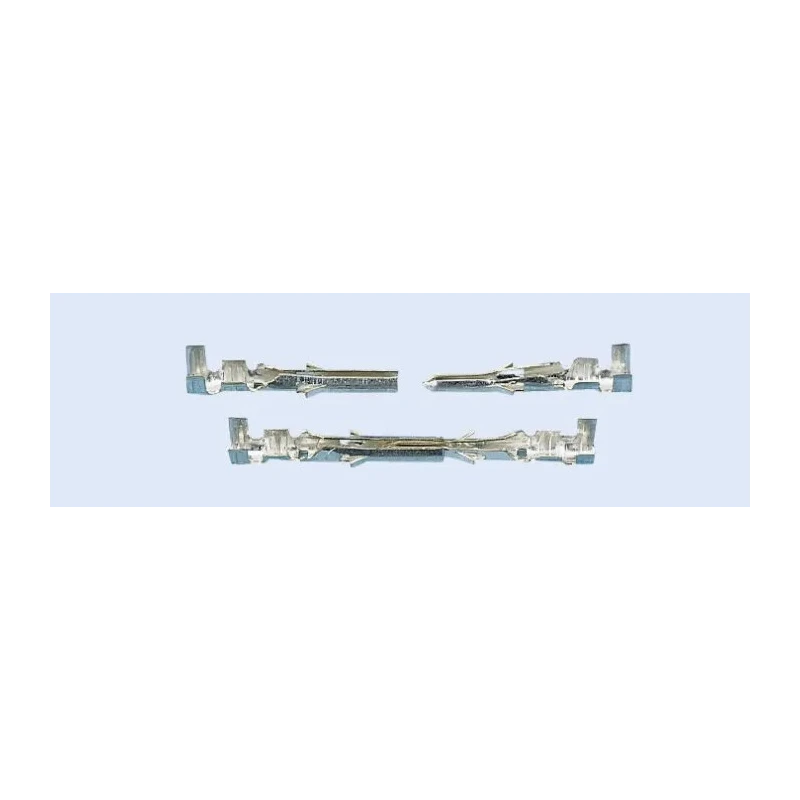

Molex 1560 Series Male Crimp Terminal for STANDARD .062 in Connector Housing 24 AWG Min Crimp, 18 AWG Max 02-06-6102

Molex 02-06-6102 is a male crimp terminal specifically engineered for use with STANDARD .062 inch connector housings, widely used in electronics manufacturing and assembly. This crimp terminal accommodates wire sizes from 24 AWG (0.2 mm²) minimum to 18 AWG (0.8 mm²) maximum, providing compatibility with a variety of wiring needs.

The contact is made of brass with a gold plating finish that enhances electrical conductivity and resists corrosion, ensuring longevity in demanding electrical environments. The terminal features a termination type of crimp, secured by a passive friction lock mechanism for reliable engagement without additional locking hardware.

Designed to operate safely within a voltage rating of 250 volts and a current rating of 5 amperes, it is suitable for power as well as signal applications. The operating temperature range spans from -40°C to 105°C, enabling usage in harsh environmental conditions.

The terminal contains a nylon shell material compliant with UL 94-V2 flammability standards, with a neutral natural nylon color for universal application aesthetics. Its round terminal design allows installation at any orientation, offering flexibility in assembly processes.

Typical applications include consumer electronics, communications, networking equipment, and portable devices, supporting efficient and durable wire-to-board connections. This product is manufactured in the United States, maintaining high quality standards.

Note that specialized hand crimp and insertion tools are recommended for optimal installation and are available separately. Constructed with brass contact material and gold plating for excellent conductivity and corrosion resistance.

Suitable for crimp termination with a friction (passive) lock design for secure connection. Rated for currents up to 5A and voltages up to 250V. Operating temperature range from -40°C to +105°C for reliable performance in diverse environments.

Shell material is nylon UL 94-V2 in a neutral (natural) color ensuring insulation and durability. Compatible with a range of receptacle and plug housings in the 1560 series. Versatile orientation with round terminals allowing flexible installation directions.

Ideal for use in consumer electronics, communications, networking, and portable device applications. Explore the extensive range of Molex electronic connector components and accessories in the EnvMart catalog to enhance your industrial and commercial electronics projects.
