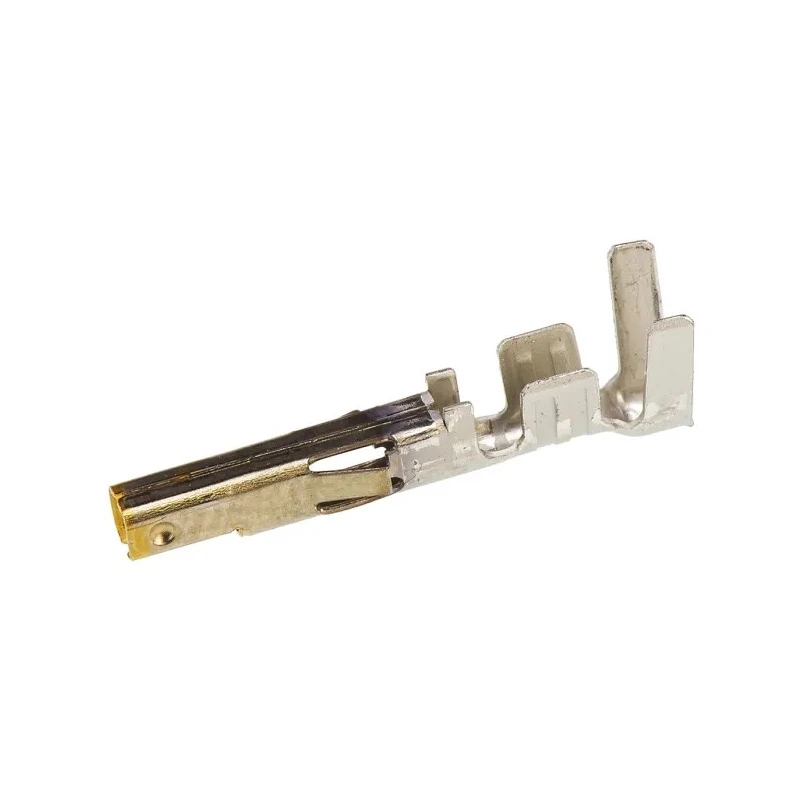

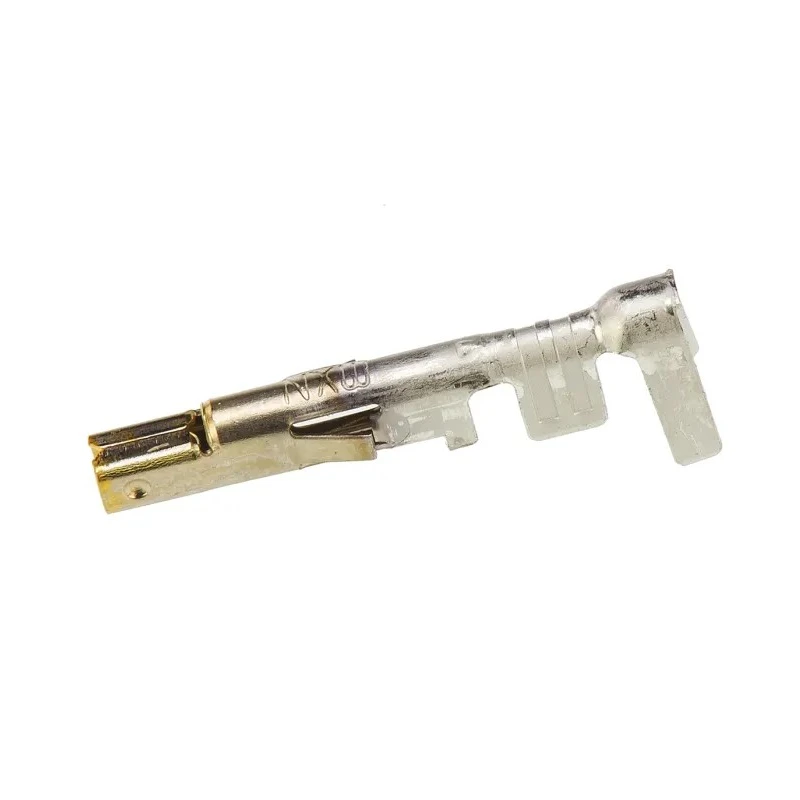

Molex 5556 Series Female Crimp Terminal for Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings, 16 AWG 39-00-0090
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings |
| Contact Plating | Gold |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- This crimp terminal is gold plated ensuring excellent corrosion resistance for durable performance.
- Constructed with brass contact material for reliable electrical conduction.
- Rated for a current of 9A and a voltage of 600V suitable for medium-voltage applications.
- Operates reliably between -55°C and 125°C temperature range.
- Features locking tangs for secure placement in connector housings.
- Has a maximum contact resistance of 10 milliohms ensuring minimal power loss.
- Compatible with Mini-Fit Jr series connectors for versatile industrial use.
- This terminal supports wire sizes from 16 AWG with a maximum 1.3 mm² cross section.
Product Description
Molex 39-00-0090 Female Crimp Terminal is specifically engineered for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, accommodating a minimum and maximum wire size of 16 AWG. This crimp terminal provides a secure and reliable electrical connection in a compact design with gold plated brass contacts for superior corrosion resistance and conductivity.
Operating at a current rating of 9A and a voltage rating of 600V, this terminal is suitable for applications in medical equipment, communication and networking systems, and automotive manufacturing plants. The terminal's locking tangs ensure secure insertion in housings preventing unintended disconnects.
Rated for harsh environments, the Molex 5556 series terminal can function effectively within a temperature range from -55°C up to 125°C. It boasts a low maximum contact resistance of 10 milliohms which contributes to high-efficiency signal transmission and power delivery. The gold plating further ensures extended durability and consistent electrical performance.
This product is made in the United States and complies with industry standards, although no specific certifications are listed. Gold plating ensures corrosion resistance for long-term performance. Brass contact material provides excellent conductivity and mechanical strength.
Current rated at 9A, suitable for medium power circuits. Temperature operating range from -55°C to 125°C allows for varied industrial environments. Maximum contact resistance of 10mΩ ensures efficient electrical connection.
Designed for Mini-Fit Jr connector series for compatibility and versatility. Locking tangs secure the terminal firmly to prevent contact loss. Ideal for use in medical, automotive, industrial automation, and communications applications.
This Molex crimp terminal enhances connectivity solutions in industrial, medical, and commercial electronic assemblies. Explore our extensive range of electronics components and connectors at EnvMart for efficient sourcing and quality assurance.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current of 9A, making it suitable for medium power circuits.
The voltage rating for this crimp terminal is 600V, allowing it to be used in medium-voltage applications.
It supports wire sizes from 16 AWG with a maximum cross-section of 1.3 mm².
This model operates reliably within a temperature range of -55°C to 125°C.
The terminal is constructed with brass contact material and features gold plating for corrosion resistance and enhanced conductivity.
It is specifically designed for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
The maximum contact resistance is 10 milliohms, ensuring minimal power loss during operation.
Yes, it features locking tangs that ensure secure placement in connector housings, preventing unintended disconnects.
This terminal is suitable for applications in medical equipment, communication and networking systems, and automotive manufacturing plants.
This product is made in the United States.
It uses a crimp termination type, ensuring a secure electrical connection.
This terminal belongs to the Molex 5556 series.
