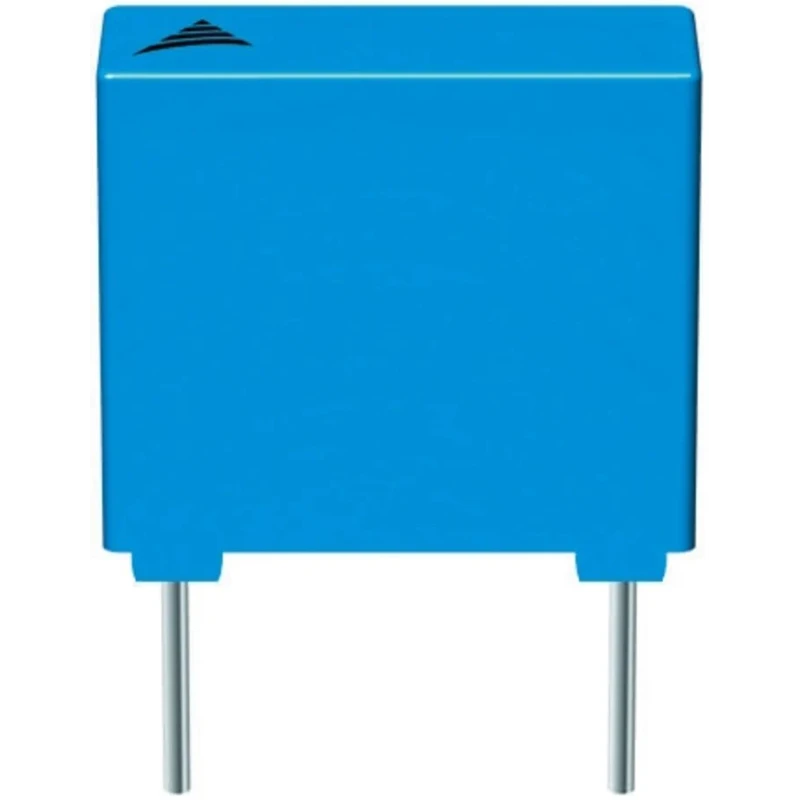

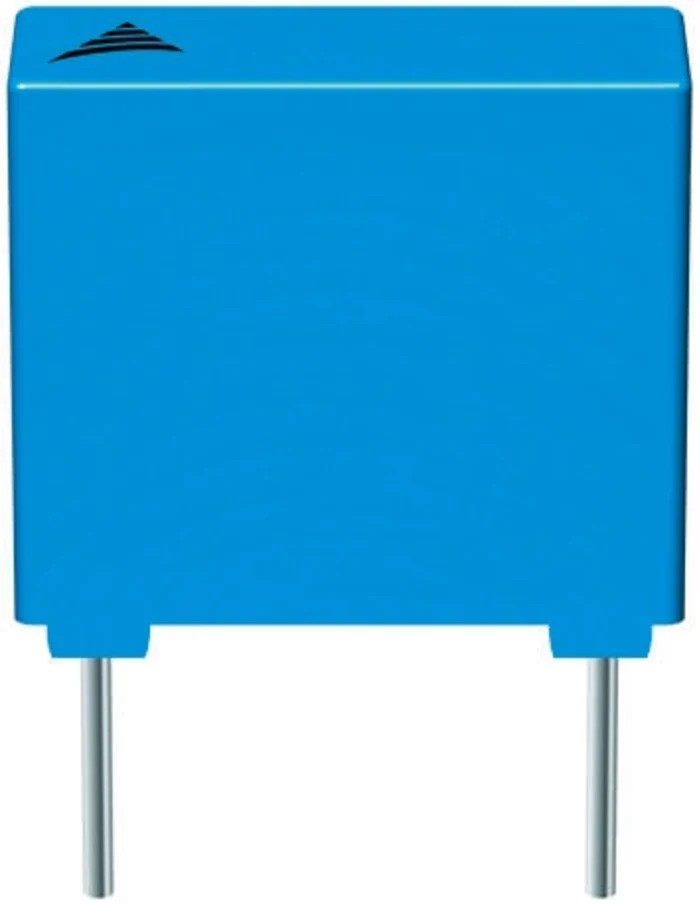

TDK Film Capacitor 68 nF 300V AC 300 V DC Through Hole 2 Pin B32022A3683M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	17.5mm
Length	18mm
Model	B32022A3683M000
Width	9mm
Mount Type	Through Hole
Series	B32022
Maximum Operating Temperature	110°C
Capacitance	68nF
Standards/Approvals	UL, CSA
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with polypropylene and a plastic case for durability.
Epoxy resin sealing complies with UL 94 V-0 flame retardant standard.
Operating temperature range from -40 to 110 °C for reliability under varying conditions.
Designed for interference suppression as Y2 class capacitor.
Compact dimensions of 18mm length, 17.5mm height, and 9mm width enable space-saving PCB layouts.
Lead pitch of 15mm with 0.8mm lead diameter for stable mounting.
Compliant with standards UL, CSA, and IEC 60384-14 for quality assurance.
High voltage capability suitable for line to ground applications.

Product Description

TDK B32022A3683M000 film capacitor is a high-quality passive electronic component designed for reliable performance in industrial and electronic applications. This capacitor has a capacitance of 68 nanofarads and is rated for 300 volts AC and DC voltage, making it suitable for power electronics requiring interference suppression and line-to-ground filtering.

Constructed using polypropylene film with a plastic case rated UL 94 V-0 and epoxy resin sealing also rated UL 94 V-0, this capacitor ensures excellent safety and flame retardant properties. Its compact physical dimensions of 18 mm length, 17.5 mm height, and 9 mm width allow integration in compact PCB designs.

The device features a through-hole mount type with two pins spaced at a lead pitch of 15 mm and a lead diameter of 0.8 mm, facilitating stable mechanical and electrical connections on printed circuit boards.

Operating temperature extends from -40 °C up to 110 °C, ensuring stable performance in harsh environments. It meets industry standards including EN 132400, IEC 60384-14 (for 300 V AC), UL1414 for 250 V AC, UL1283 for 400 V AC, and CSA C22.2 No.1 and No.8 for safety compliance.

This Y2 class capacitor is optimized for interference suppression and line to ground applications as part of industrial, manufacturing, HVAC, and electrical equipment. It provides good self-healing properties and is built for high voltage applications.

Constructed of polypropylene with plastic case and epoxy sealing. Through hole mounting with 2 pins and 15mm lead pitch. Capacitance 68nF, rated 300V AC and 300V DC. Operating temperature from -40 to 110 °C. Complies with UL, CSA, and IEC safety standards.

Suitable for interference suppression and line to ground. Compact 18x17.5x9 mm dimensions. High voltage capability and good self-healing.

This product is ideal for electronic component assemblies requiring reliable film capacitors meeting high safety standards in industrial and electronic manufacturing applications. Explore more Film Capacitors and electrical components in the EnvMart catalog.
