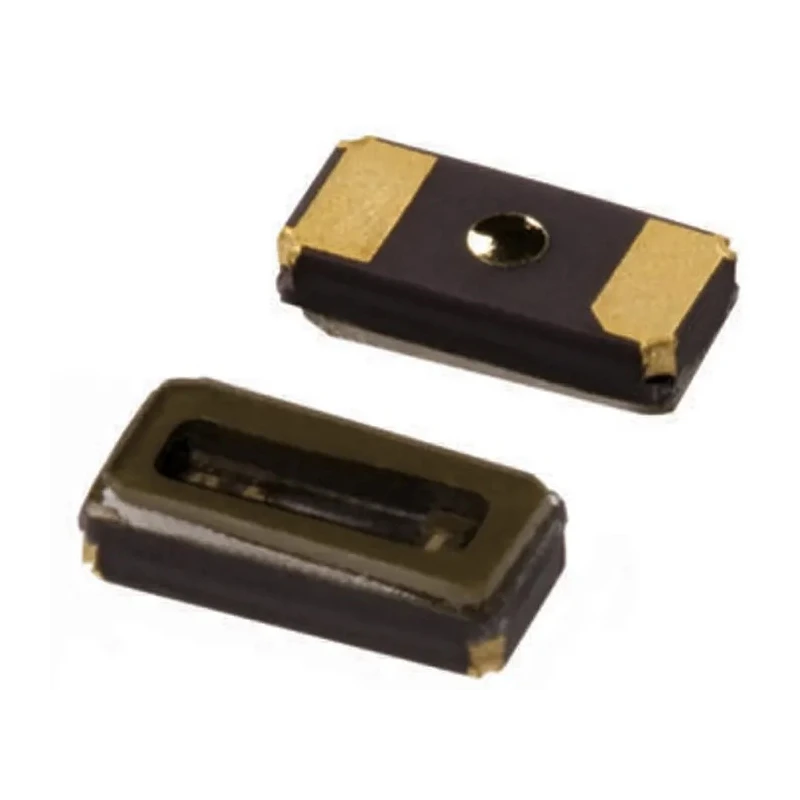

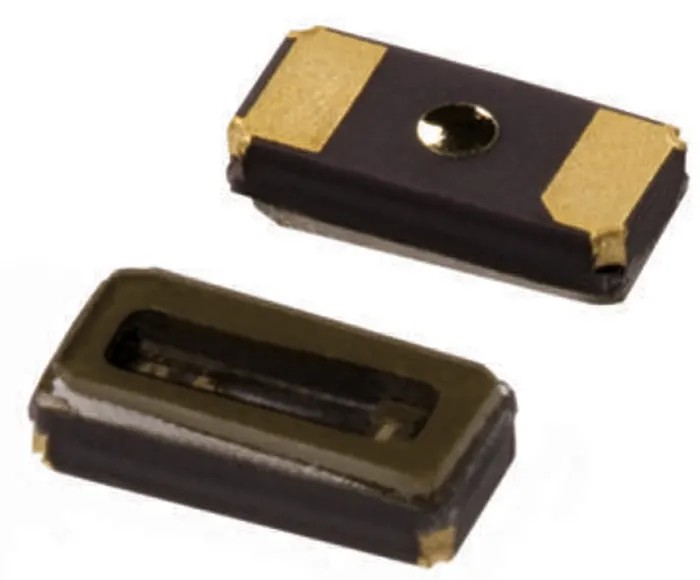

Epson 32.768 kHz Crystal ±20 ppm Surface Mount 2-Pin 0.8 mm Height, 3.2 mm Length, 1.5 mm Width Q13FC1350000212

Epson Q13FC1350000212 is a high-precision 32.768 kHz crystal unit designed for surface mount applications. With a tight frequency tolerance of ±20 ppm, this crystal provides excellent stability and reliability for timing and oscillator circuits used in electronic and communication devices.

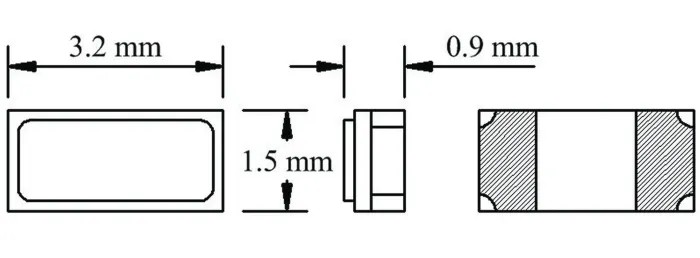

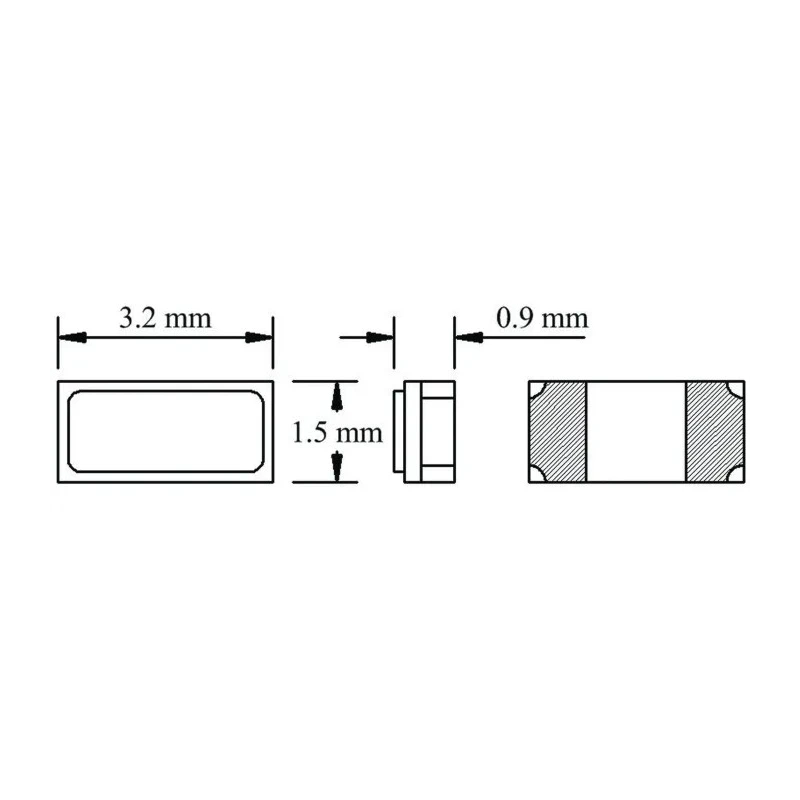

Its compact dimensions of 3.2 mm length, 1.5 mm width, and a low profile height of 0.8 mm allow easy integration into compact electronic assemblies. The 2-pin surface mount package supports automated PCB assembly processes, enhancing manufacturing efficiency.

The load capacitance of 7 pF is optimized to match typical oscillator circuits, enabling stable frequency generation. The wide operating temperature range from -40°C to 85°C ensures dependable operation in industrial, commercial, and consumer electronic applications.

The crystal exhibits a series resistance of 70 kΩ, consistent with FC-135 series characteristics, allowing low power consumption suitable for battery-powered devices.

Manufactured under stringent quality management systems certified to ISO9001, ISO14001, ISO/TS 16949, and compliant with EU RoHS directives, this product assures compliance with global environmental and quality standards.

This crystal unit is ideal for use in industrial electronics, communications equipment, consumer electronics, and instrumentation requiring precise timekeeping and frequency reference with surface mount technology.

This crystal features a standard frequency of 32.768 kHz suitable for timing applications. It has a compact surface mount package with dimensions 3.2 mm length, 1.5 mm width, and 0.8 mm height. Load capacitance is specified at 7 pF ensuring optimal oscillation performance.

Operating temperature range is -40°C to 85°C for reliable use in diverse environments. Series resistance is 70 kΩ compliant with FC-135 series specifications for low power consumption. Meets international quality and environmental standards including ISO9001, ISO14001, ISO/TS 16949, and EU RoHS.

Designed for surface mount technology with 2 pins enabling automated assembly. Non-automotive standard component suitable for small communication and timing devices. Explore similar Epson products in the Crystal Units category at EnvMart for your electronic component requirements.
