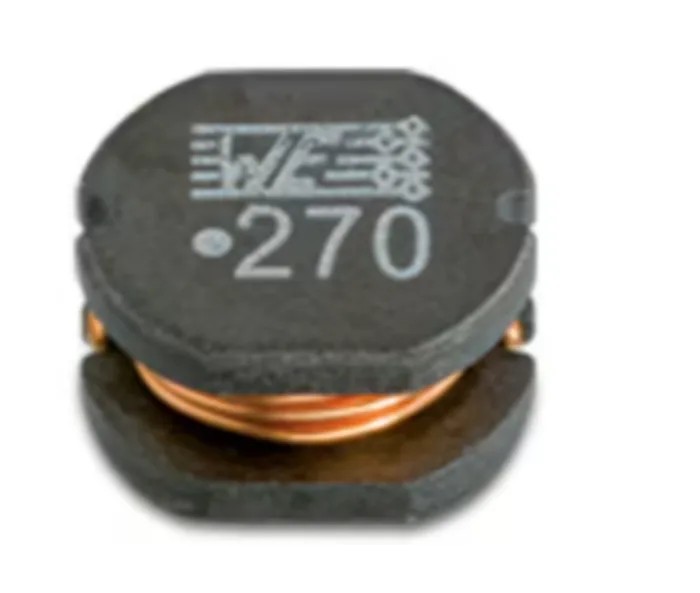

Wurth Elektronik Unshielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 1.45 A Idc 74477310

Wurth Elektronik 74477310 is an unshielded wirewound surface mount inductor featuring a ferrite core with an inductance value of 10 μH ±20 % and a maximum DC current rating of 1.45 A. This inductor is designed for efficient switching regulators and DC/DC converter applications found in computers, laptops, mobile phones, and other portable devices.

The WE-PD2 series is well known for its open frame construction, suitable for reflow soldering processes commonly used in automated surface mount technology (SMT) assembly lines. Its ferrite core provides high permeability, while the wirewound construction ensures stable current handling up to 1.45 A with minimal resistance losses.

This component supports a wide operating temperature range from -40°C to 125°C and adheres to the AEC-Q200 automotive standard, highlighting its robust performance under harsh automotive and industrial environments. The maximum DC resistance is rated at 182 mΩ, aiding in energy efficiency by minimizing power dissipation.

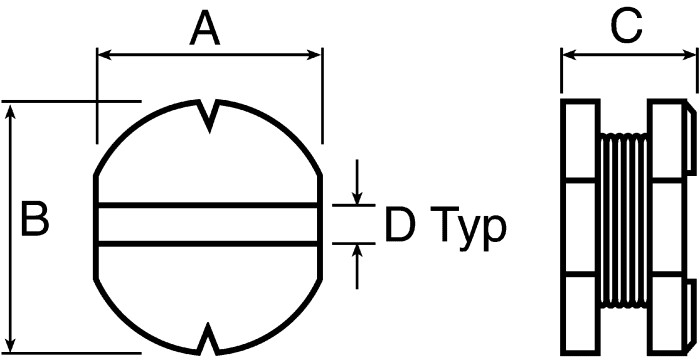

The compact dimensions of 4.5 mm length, 3.2 mm height, and 4 mm depth make it suitable for space-sensitive electronic designs. Its termination style of tin and copper ensures reliable solder joints and durability during assembly and operation.

The inductor's maximum self-resonant frequency of 30 MHz makes it appropriate for high-frequency circuits, enhancing circuit performance in filtering and energy storage functions in power electronics.

Constructed with a ferrite core for high magnetic permeability and performance. Surface mount package suitable for automated PCB assembly. Wirewound inductor construction ensures stable inductance under current load. Maximum DC resistance of 182 mΩ to minimize power loss.

Meets AEC-Q200 automotive standard for reliable use in automotive electronics. Rated for operation over a temperature range from -40°C to 125°C. Termination style includes tin and copper for optimal solderability. Maximum self-resonant frequency of 30 MHz supports high-frequency applications.

Packaging in tape and reel format for efficient manufacturing integration.

This inductor is ideal for industrial, automotive, electronics manufacturing, and commercial applications requiring Surface Mount Inductors with assured quality and stable electrical characteristics.
