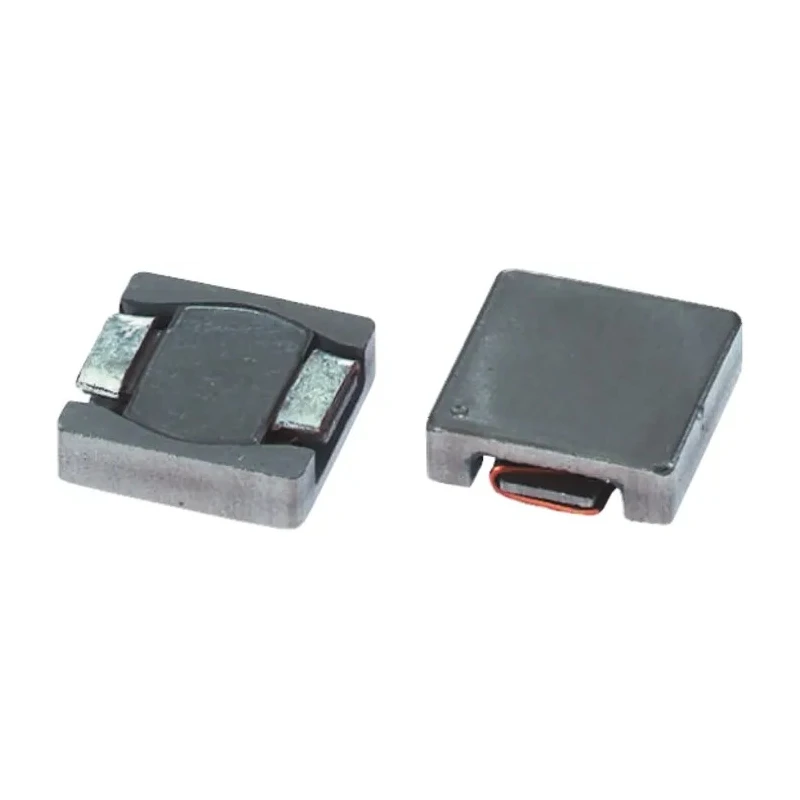

Wurth Elektronik Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±30 % 1.72 A Idc 744042004
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 4.8mm |
| Depth | 4.8mm |
| Packaging | Tape & Reel |
| Series | WE-TPC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Package/Case | 4818 |
| Maximum DC Current | 1.72A |
| Pin Count | 2 |
| Maximum DC Resistance | 82mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 70MHz |
| Inductor Construction | Wirewound |
| Standards/ApprovalsJEDEC JS709B, REACH, RoHS, IEC 60286-3 | 2013, IEC 61249-2-21, IPC/JEDEC J-STD-020E |
Key Features
- The inductor supports a maximum DC current of 1.72 A.
- It has a compact 4818 package size with dimensions 4.8 mm × 4.8 mm × 1.8 mm.
- The device is magnetically shielded, minimizing leakage fields.
- It operates between -40°C and 125°C maximum temperature.
- Inductor construction is wirewound and the component is RoHS and REACH compliant.
- Maximum DC resistance is 82 mΩ ensuring efficiency.
- Packaging type is tape and reel for automated assembly.
- Meets JEDEC JS709B and other international standards.
Product Description
Wurth Elektronik 744042004 is an advanced wirewound surface mount inductor designed to provide stable inductance of 4.7 μH with a ferrite core. This component features a compact 4818 package size measuring 4.8 mm in length, 4.8 mm in depth, and 1.8 mm in height, making it ideal for space-constrained applications.
The inductor supports a maximum DC current of 1.72 A and offers an inductance tolerance of ±30 %, suitable for robust performance in power electronics circuits. Its magnetically shielded construction reduces electromagnetic interference and leakage fields, enhancing circuit reliability. The inductor has a maximum DC resistance of 82 mΩ, contributing to low power loss in operation.
Designed for surface mount technology (SMT), this inductor is packaged in tape and reel format, facilitating efficient automated PCB assembly. It complies with multiple international standards including JEDEC JS709B, REACH, RoHS, IEC 60286-3:2013, IEC 61249-2-21, and IPC/JEDEC J-STD-020E, ensuring safety and environmental compliance.
The operating temperature range extends from -40°C to 125°C, making it suitable for a variety of harsh industrial environments. Its wirewound construction and ferrite core material provide excellent performance in filtering, energy storage, and noise suppression applications within electronic, power supply, automotive, and communication systems.
The inductor supports a maximum DC current of 1.72 A. Compact 4818 package ensures ease of integration into SMT designs. Magnetically shielded design minimizes EMI and leakage fields. RoHS and REACH compliant for environmentally friendly manufacturing.
Wide operating temperature range from -40°C to 125°C. Low maximum DC resistance of 82 mΩ for efficient power handling. Packaging in tape and reel for automated handling. Conforms to major standards for reliability and safety.
Ideal for industrial electronics, power management, and communication devices.
This Wurth Elektronik shielded wirewound Surface Mount Inductor is an excellent choice for engineers requiring a reliable, compact inductive component with high current capability and environmental compliance. Browse the Electronics Components category on EnvMart for more inductors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 4.7 μH with an inductance tolerance of ±30%.
It supports a maximum DC current of 1.72 A.
The dimensions of the 4818 package are 4.8 mm in length, 4.8 mm in depth, and 1.8 mm in height.
The maximum operating temperature is 125°C, while the minimum operating temperature is -40°C.
The maximum DC resistance is 82 mΩ, which helps ensure efficient power handling.
This inductor features a wirewound construction with a ferrite core.
It is packaged in tape and reel format, which facilitates automated assembly processes.
It complies with several standards including JEDEC JS709B, REACH, RoHS, IEC 60286-3:2013, IEC 61249-2-21, and IPC/JEDEC J-STD-020E.
The maximum self-resonant frequency is 70 MHz.
The termination style for this inductor is surface mount, suitable for SMT applications.
This inductor is suitable for applications in power electronics, automotive, and communication systems.
This model has a pin count of 2.
