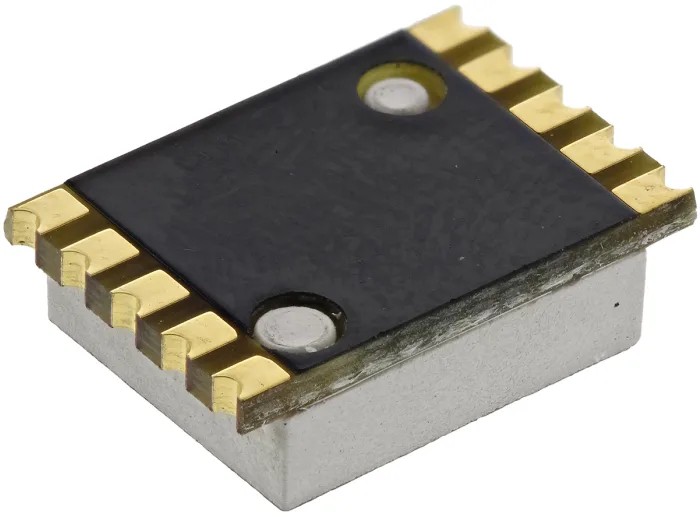

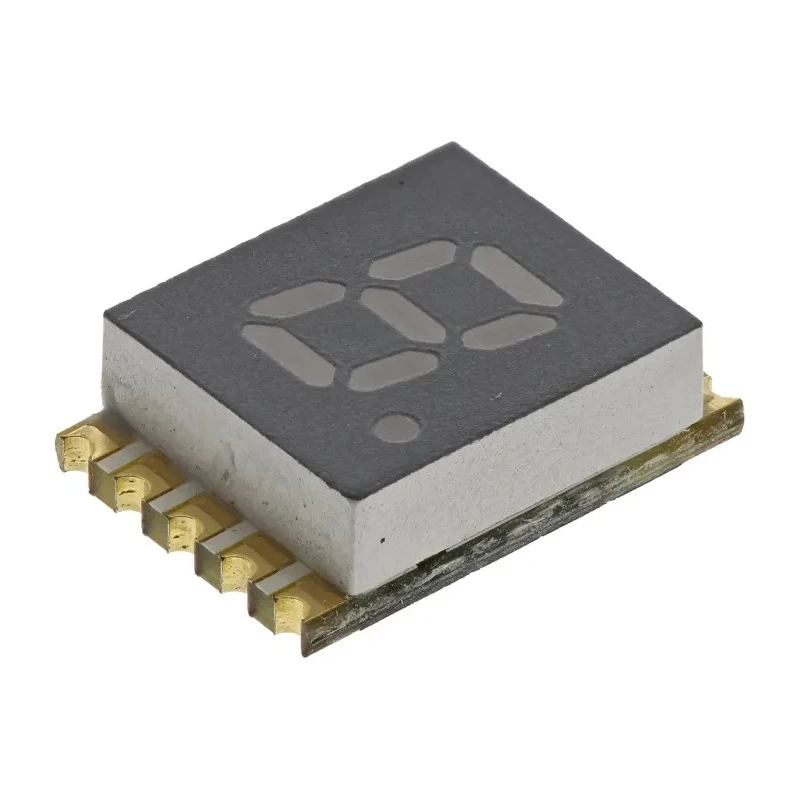

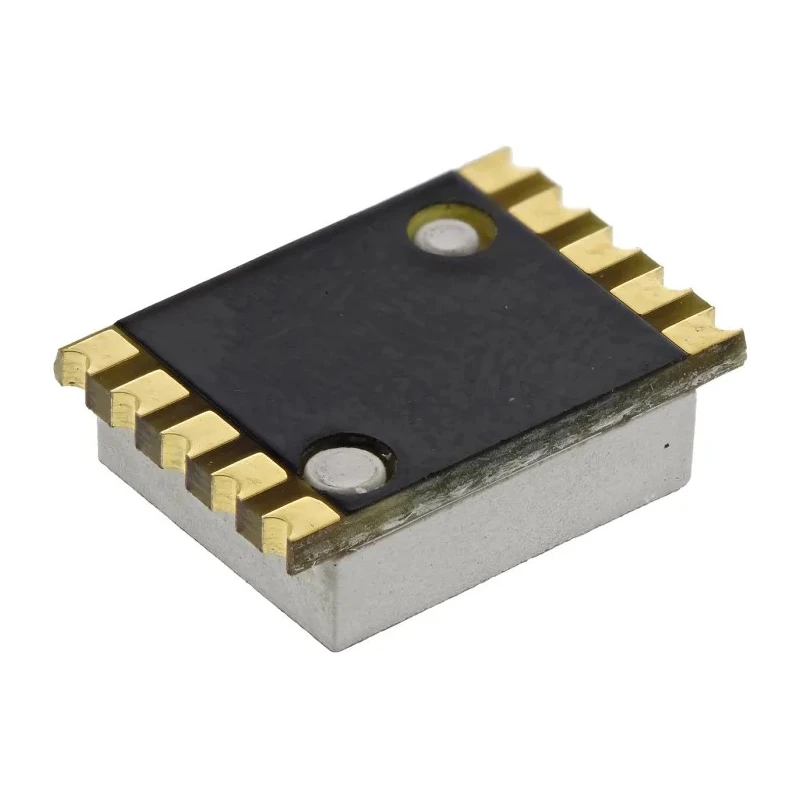

Kingbright Single Digit 7 Segment LED Display Red 5.1mm Character Height Surface Mount Anode KCSA02-105
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSA02-105 |
| Mount Type | Surface |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 6.9mm |
| External Depth | 3mm |
| External Height | 10mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 30mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 635nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Single digit 7 segment design for simplified numeric display.
- Red LED color with a luminous intensity of 30mcd for high visibility.
- Character height of 5.1 mm and width of 3.2 mm for compact size.
- Surface mount type with common anode connection for easy PCB integration.
- Operates reliably between -40°C and 85°C temperatures.
- Power dissipation of 75mW with forward voltage of 2V and forward current of 30mA.
- Grey face color enhances contrast and character appearance.
- Right side decimal orientation for versatile display requirements.
Product Description
Kingbright KCSA02-105 is a high-quality single digit 7 segment LED display designed for electronic component applications requiring clear numeric output. The red LED segments provide a luminous intensity of 30mcd for excellent visibility in various lighting conditions.
This LED display uses a common anode configuration and is suitable for surface mounting on printed circuit boards, offering ease of assembly and durability in industrial environments. The grey face with white segments ensures excellent contrast and character definition, improving readability.
It operates efficiently within a wide temperature range from -40°C to 85°C, supporting reliable performance in harsh environmental conditions. With a power dissipation of 75mW, a forward voltage of 2V, and a forward current rating of 30mA, the component is energy efficient and suitable for extended use.
The decimal point is oriented to the right side, allowing flexible use in decimal numerical displays, essential in instrumentation and control panels. This display is RoHS compliant, reflecting adherence to environmental and safety standards required in modern electronics manufacturing.
Kingbright's KCSA02-105 is ideal for industrial, commercial, and electronic applications such as digital meters, counters, and status indicators in measurement systems, HVAC controls, laboratory equipment, and embedded electronics. Package contents typically include the LED display unit ready for PCB mounting.
Single digit 7 segment design for simplified numeric display. Red LED color with a luminous intensity of 30mcd for high visibility. Character height of 5.1 mm and width of 3.2 mm for compact size. Surface mount type with common anode connection for easy PCB integration.
Operates reliably between -40°C and 85°C temperatures. Power dissipation of 75mW with forward voltage of 2V and forward current of 30mA. Grey face color enhances contrast and character appearance. Right side decimal orientation for versatile display requirements.
RoHS compliant ensuring environmental safety standards. Explore more LED Display components in the Electronics Components category on EnvMart for reliable industrial and electronic manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this display is 30mcd, providing high visibility in various lighting conditions.
This model operates reliably between -40°C and 85°C, making it suitable for harsh environmental conditions.
The forward voltage is 2V and the forward current is 30mA, ensuring efficient operation.
It uses a common anode connection, which simplifies PCB integration.
The external dimensions are 6.9mm in width, 3mm in depth, and 10mm in height.
The character height is 5.1mm and the character width is 3.2mm, providing a compact size for numeric display.
Yes, it is RoHS compliant, adhering to environmental and safety standards required in electronics manufacturing.
The LED color is red, and the face color is grey, which enhances contrast and character appearance.
The power dissipation for this display is rated at 75mW, which contributes to its energy efficiency.
This model is suitable for applications such as digital meters, counters, and status indicators in various electronic systems.
The decimal point is oriented to the right side, allowing for versatile display requirements.
This display features 7 segments, which are used for numeric representation.
