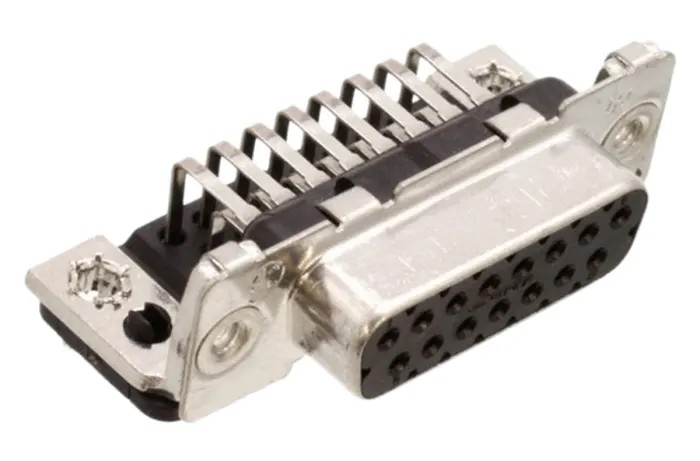

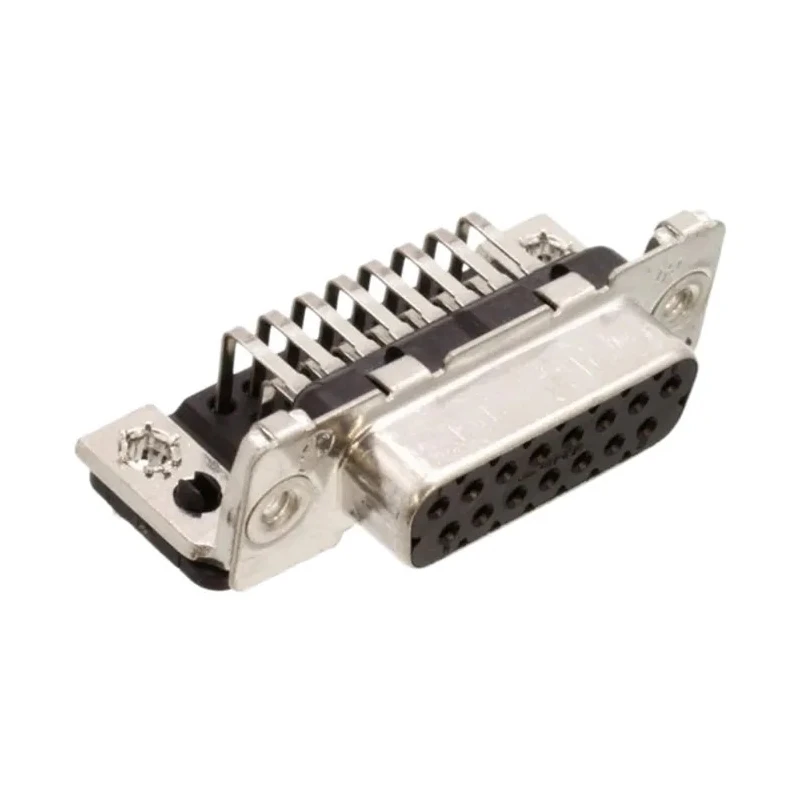

TE Connectivity AMPLIMITE HD-20 15 Way Right Angle Through Hole D-Sub Connector 2.74 mm Pitch 1-106506-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | D |
Key Features
- Designed with a right angle orientation for PCB mounting.
- Features 15 female contacts with gold over nickel plating.
- Constructed using polyethylene terephthalate housing for durability.
- Suitable for solder termination with 4 to 40 UNC threaded insert mounting hardware.
- Operates between -55°C to 105°C for reliable performance.
- Gold plated phosphor bronze contacts ensure excellent conductivity.
- D-sub shell size D provides compatibility with standard applications.
- Maximum current rating is 6A per contact.
Product Description
TE Connectivity 1-106506-2 AMPLIMITE HD-20 is a 15 Way Right Angle Through Hole D-Sub Connector with a 2.74 mm pitch designed for robust and reliable PCB mounting applications. It features a right angle orientation suitable for high-density circuit boards, ensuring efficient space utilization.
The connector housing is made from polyethylene terephthalate, providing resistance to harsh industrial environments. Its contact material is phosphor bronze plated with gold over nickel, which guarantees high electrical conductivity and corrosion resistance. The maximum current rating of 6 amperes supports demanding electronic applications.
Mounting is facilitated via 4 to 40 UNC threaded inserts, offering secure attachment to printed circuit boards. This model operates effectively over a temperature range from -55°C to 105°C, enhancing its versatility across different industrial and electronic conditions. The AMPLIMITE HD-20 series connectors follow a European standard footprint, ensuring compatibility with a wide range of equipment.
This connector type is ideal for industrial electronics, instrumentation, telecommunications, computing hardware, and manufacturing electronics assembly lines. The solder termination type simplifies integration with printed circuit boards and ensures stable electrical connections.
Designed with a right angle orientation for PCB mounting. Features 15 female contacts with gold over nickel plating. Constructed using polyethylene terephthalate housing for durability. Suitable for solder termination with 4 to 40 UNC threaded insert mounting hardware.
Operates between -55°C to 105°C for reliable performance. Gold plated phosphor bronze contacts ensure excellent conductivity. D-sub shell size D provides compatibility with standard applications. Maximum current rating is 6A per contact.
European standard footprint AMPLIMITE D-sub connector with through-hole mount type. Browse more high-quality D-Sub Connectors by TE Connectivity and explore other related electronic components available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this connector is 6A per contact.
The pitch of this connector is 2.74 mm.
It operates effectively between -55°C and 105°C.
The housing is constructed from polyethylene terephthalate.
This model features 15 female contacts.
It uses solder termination for secure electrical connections.
It is suitable for mounting with 4 to 40 UNC threaded inserts.
The contacts are made of phosphor bronze plated with gold over nickel.
This connector is designed with a right angle orientation for PCB mounting.
It conforms to D-sub shell size D, ensuring compatibility with standard applications.
The country of origin for this connector is India.
This model is suitable for industrial electronics, telecommunications, and computing hardware applications.
