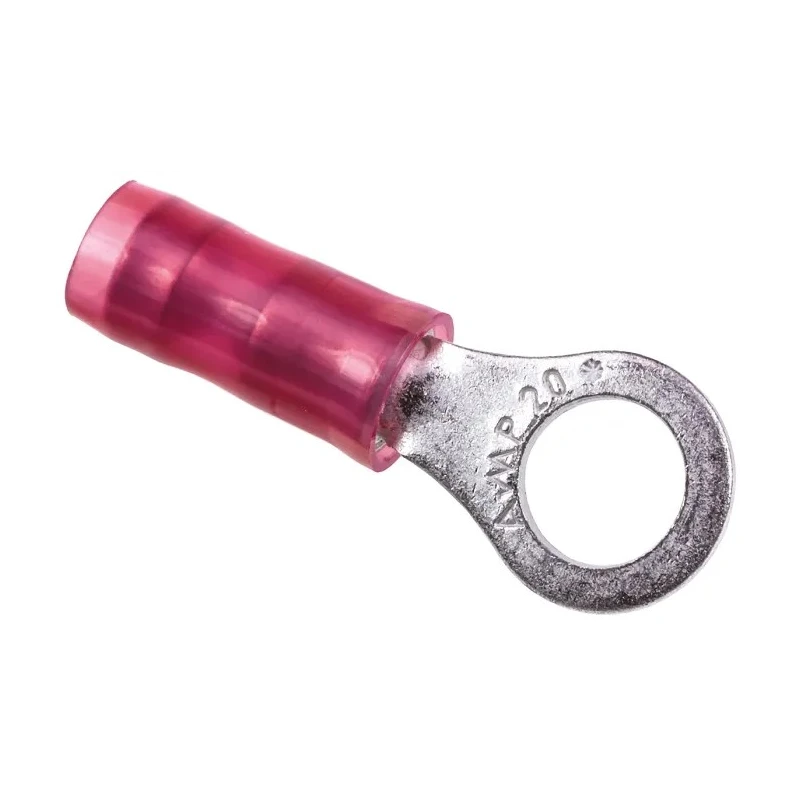

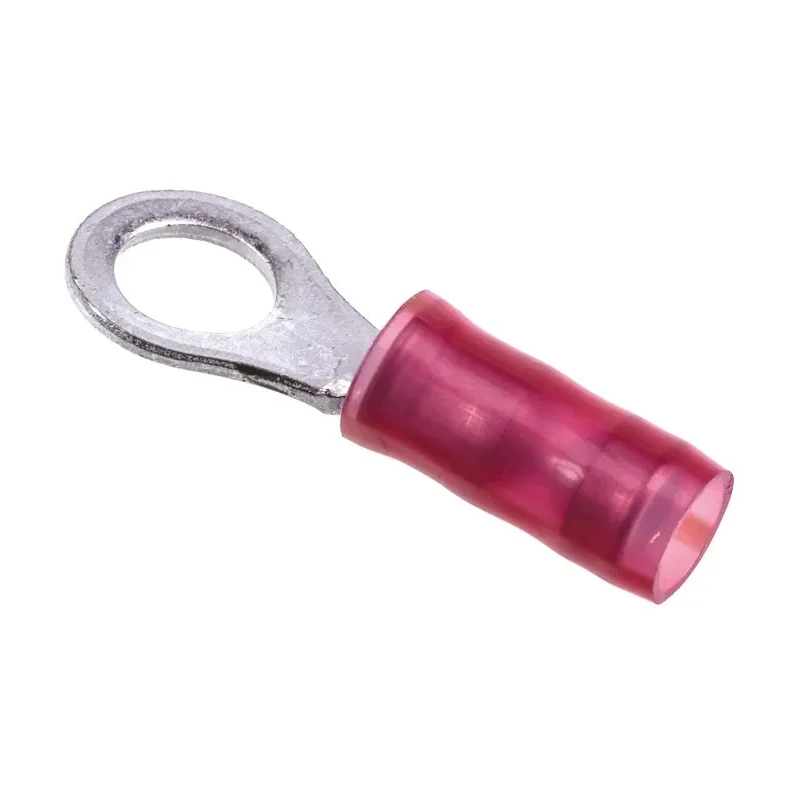

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Wire Size, Red 2-36153-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 23.01mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper construction ensures excellent electrical performance.
- Nylon insulated sleeve, color-coded red for easy wire size identification.
- Precision-formed structure with serrations in wire barrel for maximum contact and tensile strength.
- Funnelled wire entry aids fast insertion and prevents wire strand fraying.
- Suitable for industrial, automotive, aerospace, and appliance wiring applications.
- Maximum operating temperature rating of 105°C for high-temperature environments.
- Contact plating with tin enhances corrosion resistance and durability.
- Overall length of 23.01 mm with thickness of 0.79 mm maintains compact form factor.
Product Description
TE Connectivity 2-36153-4 PIDG Insulated Ring Terminal offers a robust solution for wire termination needs using an M5 stud size compatible with wire gauges from 22 AWG to 16 AWG. This insulated ring terminal utilizes a high conductivity copper body with tin-plated contacts to provide superior electrical performance and resistance to corrosion.
The product features a nylon insulation sleeve that is color-coded red for clear identification aiding installation efficiency. The ring terminal incorporates a precision-formed barrel with serrations that supply strong tensile strength and secure contact after crimping. Additionally, an internal copper sleeve enhances wire insulation support and prevents fraying of wire strands.
The funnelled wire entry design facilitates quick insertion during high-speed production, improving assembly efficiency. Rated for a maximum operating temperature of 105°C, this terminal is suitable for demanding industrial environments including automotive wiring, aerospace electrical assemblies, instrumentation control panels, power supply connections, and household appliances.
Designed to meet or exceed MIL-T-7928 Type II Class 1 and 2 specifications, the 2-36153-4 delivers reliable mechanical and electrical properties for diverse wiring applications. Its compact dimensions with an overall length of 23.01 mm and thickness of 0.79 mm allow for installation in confined spaces.
High conductivity copper body construction. Copper sleeve provides enhanced wire insulation support. Serrations in wire barrel ensure maximum contact and tensile strength. Color-coded nylon insulation sleeve for easy size identification.
Funnelled wire entry prevents wire strand turning back and ensures fast insertion. Suitable for use in automotive, aerospace, industrial, and appliance wiring. Meets MIL-T-7928, Type II, Class 1 and 2 standards. Maximum operating temperature of 105°C.
Tin-plated contacts for improved corrosion resistance. Compact dimensions for versatile application.
Explore EnvMart's extensive range of high-quality electronic components and wire terminals for professional and industrial use, designed to meet stringent performance and safety standards.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this insulated ring terminal is 105°C, making it suitable for high-temperature environments.
This terminal is compatible with wire sizes ranging from 22 AWG to 16 AWG.
The overall length of this terminal is 23.01 mm, and its thickness is 0.79 mm.
The terminal features a high conductivity copper body with tin plating for enhanced corrosion resistance, and it has a nylon insulation sleeve.
The stud size for this insulated ring terminal is M5.
The funnelled wire entry design facilitates quick insertion during assembly, preventing wire strand fraying and improving installation efficiency.
This terminal is designed to meet or exceed MIL-T-7928 Type II Class 1 and 2 specifications, ensuring reliable mechanical and electrical properties.
The insulation is color-coded red, which aids in easy identification of wire sizes during installation.
This terminal is suitable for various applications including automotive, aerospace, industrial, and appliance wiring.
The inner ring diameter is 5 mm, and the outer ring diameter is 7.92 mm.
The terminal features precision-formed serrations in the wire barrel for maximum contact and tensile strength, ensuring excellent electrical performance.
The insulation material used in this terminal is nylon, which provides durability and protection.
