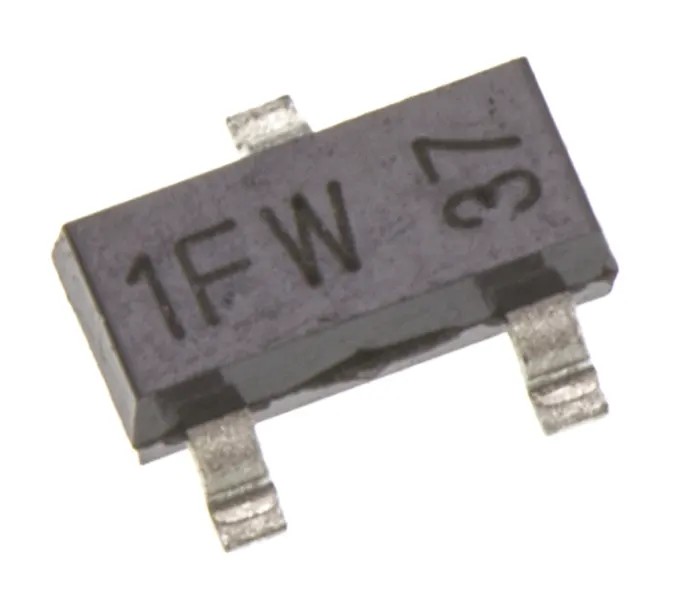

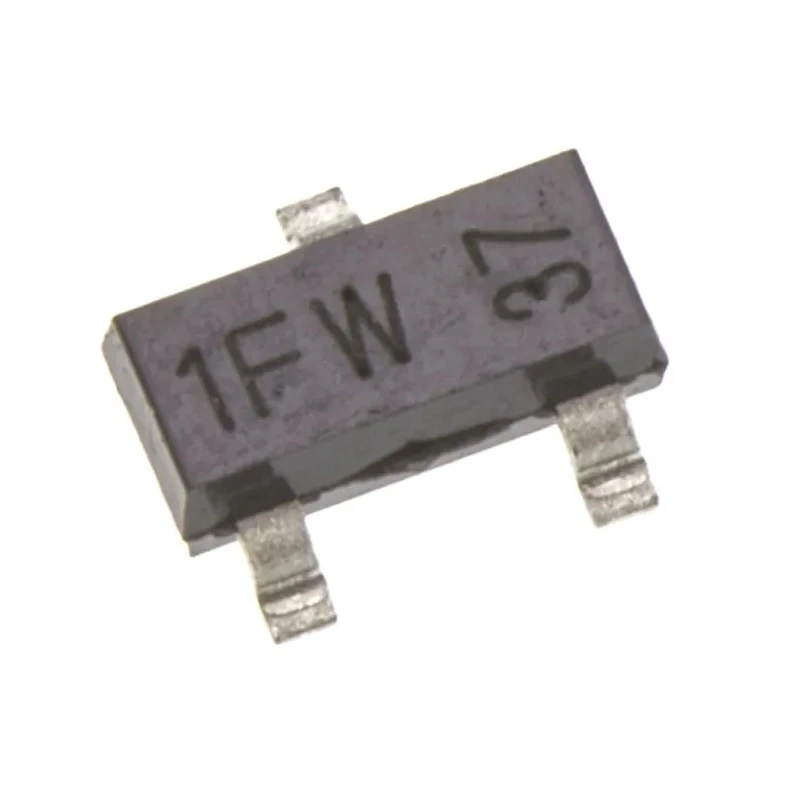

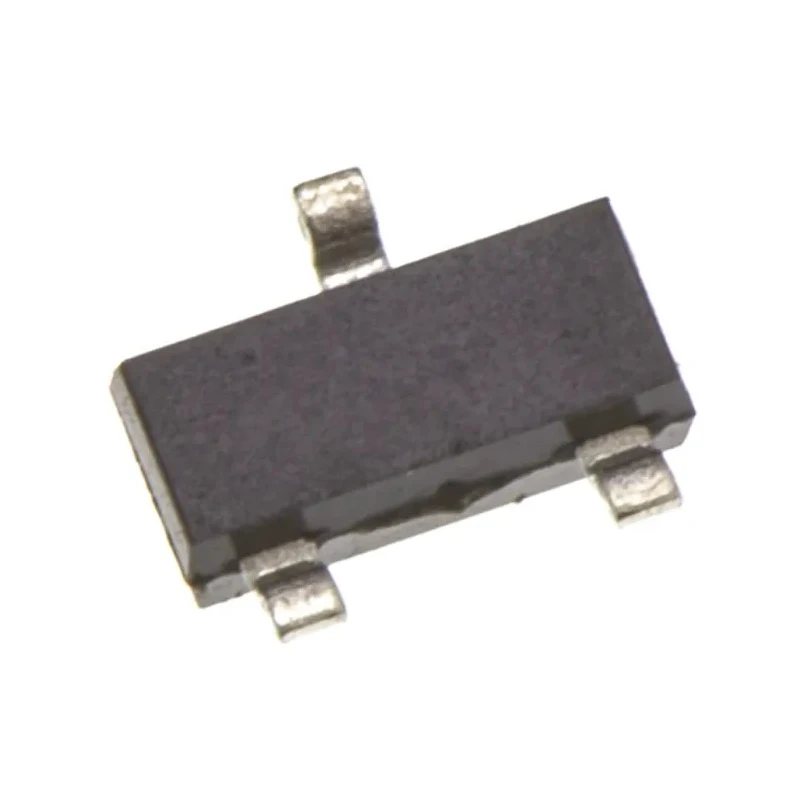

Nexperia Small Signal NPN Transistor BC847B,215 100mA 45V 3-Pin SOT-23 Surface Mount AEC-Q101 BC847B,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Small Signal NPN Transistor BC847B,215 100mA 45V 3-Pin SOT-23 Surface Mount AEC-Q101 BC847B,215

Name: Nexperia Small Signal NPN Transistor BC847B,215 100mA 45V 3-Pin SOT-23 Surface Mount AEC-Q101 BC847B,215
Brand: Nexperia
SKU: 120827
Price: 0.06 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.1mm
Length	3mm
Model	BC847B,215
Width	1.4mm
Mount Type	Surface
Series	BC847
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	45V
Minimum DC Current Gain hFE	200
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
onsemi BC847BLT1G Transistor, 100 mA NPN, 45 V, 3-Pin SOT-23Brand	onsemi

Key Features

Maximum DC collector current of 100mA ensuring efficient switching.
Collector-emitter voltage rating of 45V suitable for medium voltage circuits.
Compact SOT-23 surface mount package with 3 pins for versatile PCB integration.
High current gain hFE minimum value of 200 for excellent amplification.
Compliance with automotive standard AEC-Q101, ensuring reliability.
Operating temperature range from -65°C to 150°C supports harsh conditions.
Maximum power dissipation of 250mW for small signal applications.
Transition frequency of 100MHz beneficial for high-frequency use.

Product Description

Nexperia BC847B,215 is a small signal NPN bipolar transistor packaged in a 3-pin SOT-23 surface mount housing. It supports a maximum collector current of 100mA and can withstand a collector-emitter voltage of up to 45V. This transistor is widely used in electronic circuit designs requiring reliable switching and amplification performance within limited PCB space.

The device features a high DC current gain (hFE) minimum of 200, a power dissipation rating of 250mW, and a maximum transition frequency of 100MHz, making it suitable for low power, high frequency, and switching applications. It complies with the automotive standard AEC-Q101, ensuring it meets rigorous quality and reliability requirements for automotive and industrial use cases.

The transistor’s compact dimensions (3mm length, 1.4mm width, 1.1mm height) and surface mount design enable dense PCB layouts and ease of assembly. It operates over a broad thermal range from -65°C to 150°C, supporting operation in varied environmental conditions.

Typical industrial, automotive, and consumer electronics use includes signal amplification, switching circuits, and interfacing electronic modules. The NPN configuration and single transistor design provide flexibility for diverse circuit topologies.

Maximum collector current 100mA ensures effective low power switching. Collector-emitter voltage 45V supports moderate voltage tolerances in circuits. SOT-23 3-pin package designed for surface mount applications. High current gain hFE of minimum 200 provides strong amplification.

Power dissipation maximum 250mW suitable for small signal operation. Transition frequency 100MHz for high speed switching. Pin count 3 and NPN polarity typical for bipolar transistor usage. Operating temperature range from -65°C up to 150°C.

Automotive qualified to AEC-Q101 for rigorous reliability standards. Explore Nexperia’s range of Bipolar Transistors and discrete semiconductors for reliable performance in your electronics designs on EnvMart.
