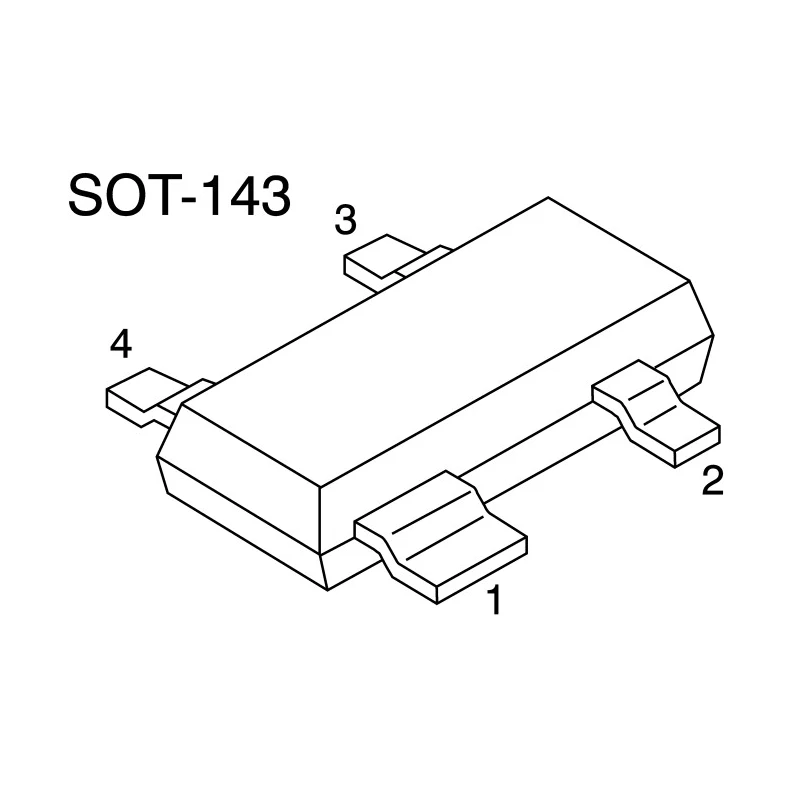

Nexperia Schottky Diode 30 V 200 mA Surface Mount SOT-143 Package 4-Pin BAT74,215

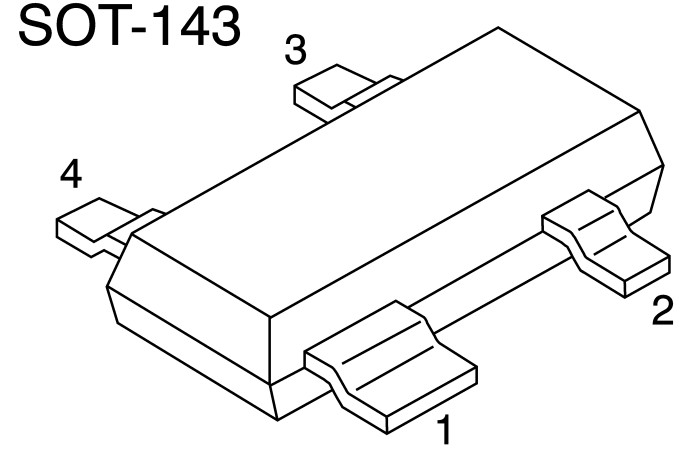

The Nexperia BAT74,215 is a Schottky diode engineered for efficient, reliable operation with its 30 V peak reverse voltage and 200 mA maximum continuous forward current. Encapsulated in a small 4-pin SOT-143 surface-mount package, this diode is ideal for compact electronic designs requiring low forward voltage drop and minimal power losses.

Its construction ensures high efficiency with low capacitance and negligible switching losses, supporting fast switching speeds with a peak reverse recovery time of only 5 nanoseconds. This diode operates over a wide temperature range from -65°C to 150°C, making it suitable for industrial, automotive, and commercial electronics applications.

Certified to the automotive AEC-Q101 standard, the BAT74,215 provides enhanced reliability for automotive electronics. Its isolated diode configuration supports versatile usage in power rectification, voltage clamping, and switching circuits. The device features a low peak reverse current of 2 microamps and can tolerate surge currents up to 600 mA, ensuring robust performance under transient conditions.

The compact dimensions (3 mm length, 1.4 mm width, and 1 mm height) facilitate integration into high-density printed circuit board layouts where space constraints are critical. Its optimized Schottky barrier technology minimizes forward voltage drop to approximately 800 mV, improving power efficiency and thermal performance.

Package contents comprise a single Schottky diode in SOT-143 package format, ready for surface mounting, suitable for automated PCB assembly lines in industrial manufacturing environments.

This component is an ideal choice for applications in power management, voltage regulation, automotive electronic controls, industrial automation, and high-frequency switching power supplies. Nexperia’s BAT74,215 helps optimize circuit performance by reducing power dissipation and enhancing responsiveness to rapid switching demands.

Explore the wide range of high-quality semiconductors and electronic components available on EnvMart for your professional projects and manufacturing needs. Optimized for low forward voltage drop and high junction temperature.

High efficiency with low capacitance and negligible power switching losses. Maximum operating temperature up to 150°C suitable for industrial applications. Automotive grade compliant with AEC-Q101 standard. Peak reverse current of 2 microamps and peak surge current of 600 mA.

Extends device lifetime with low leakage current and fast reverse recovery time of 5 nanoseconds. Designed for isolated diode configuration in rectifier and switching circuits. Compact dimensions: 3 mm length, 1.4 mm width, 1 mm height for space-constrained PCB layouts.

Wide operating temperature range from -65°C to +150°C for rugged environments.
