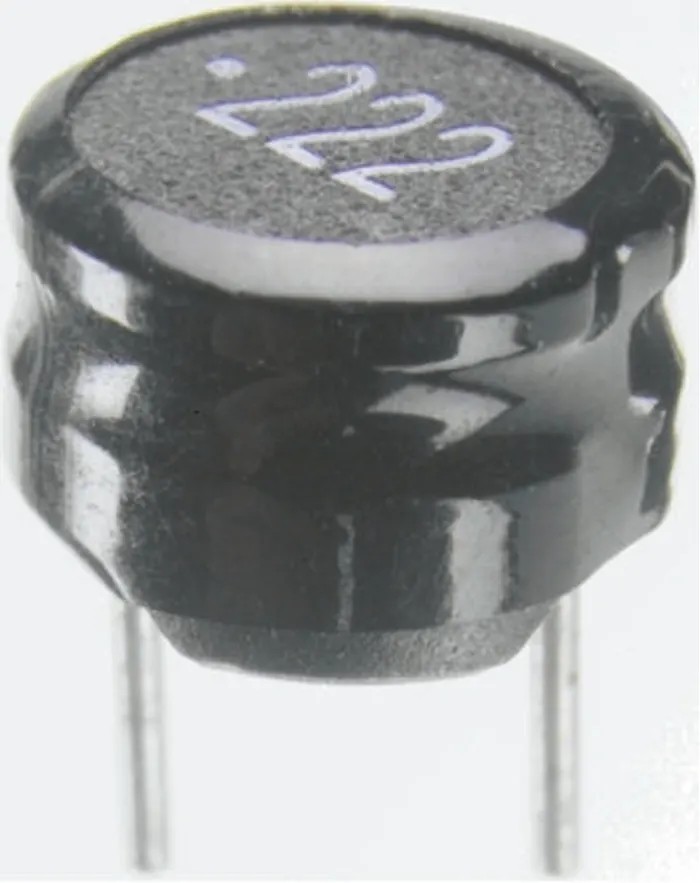

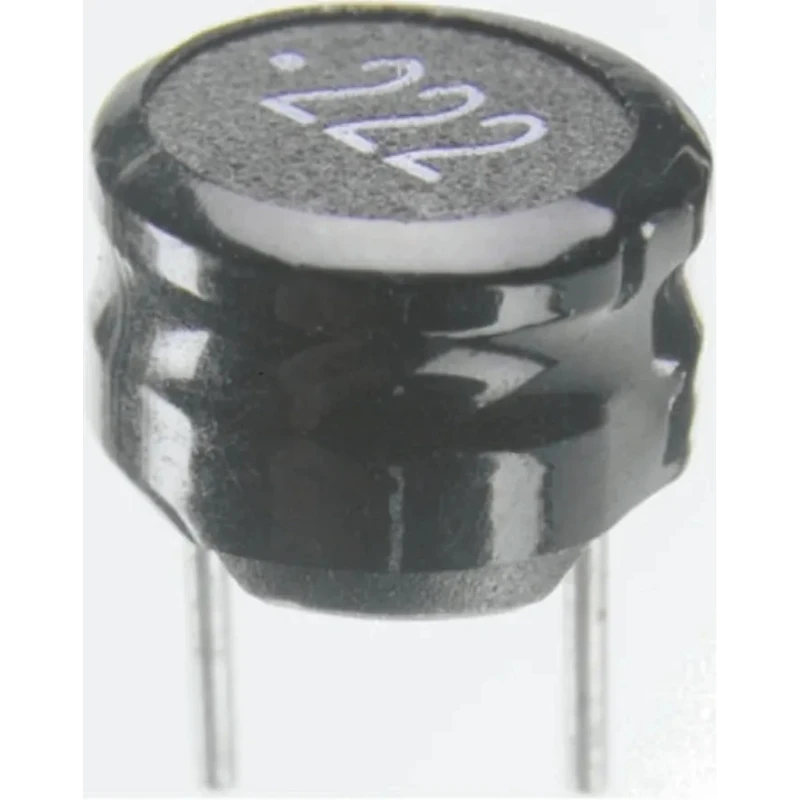

Wurth Elektronik WE-TI Unshielded Wirewound Surface Mount Inductor Ferrite Core 1 mH ±10% 300 mA 744772102
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 8.3mm |
| Brand | Wurth Elektronik |
| Operating Temperature | -25°C → +85°C |
| Height | 10mm |
| Length | 9.5mm |
| Packaging | Tray |
| Series | WE-TI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1mH |
| Standards/Approvals | IEC 61249-2-21, JEDEC JS709B, RoHS, REACH |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.84Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial |
| Maximum Self Resonant Frequency | 1.6MHz |
| Inductor Construction | Wirewound |
Key Features
- Maximum DC current capacity of 300 mA for reliable operation.
- Compact radial through-hole design with 9.5 mm length and 8.3 mm diameter.
- Operating temperature range from -40°C to 125°C for versatile usage.
- Maximum DC resistance of 1.84 Ω ensuring efficiency in filtering applications.
- Core material is ferrite with wirewound construction for enhanced inductance stability.
- Termination style is radial with standardized 2-pin count and 5 mm lead spacing.
- Maximum self-resonant frequency of 1.6 MHz suitable for signal filtering and power supplies.
- Compliant with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards.
Product Description
Wurth Elektronik 744772102 is an unshielded wirewound surface mount inductor featuring a ferrite core with an inductance of 1 mH and a tolerance of ±10%. Designed for robust industrial and electronic component use, this inductor offers a maximum DC current of 300 mA, ensuring reliability in various electronic circuits.
This radial through-hole inductor has a compact size with a length of 9.5 mm, height of 10 mm, and diameter of 8.3 mm. It utilizes a wirewound construction on a ferrite core, optimized for high inductance stability and low DC resistance of 1.84 Ω. The termination style is radial with a 2-pin count and standardized lead spacing of 5 mm.
Operating efficiently over a temperature range of -40°C to 125°C, the WE-TI series is compliant with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards, ensuring environmental and quality certifications suitable for industrial applications.
The inductor’s maximum self-resonant frequency of 1.6 MHz makes it well-suited for signal filtering, switching power supplies, and power supply filtering in small to medium voltage systems. Its compact design enables integration into PCBs and electronic assemblies where space-saving is critical.
Maximum DC current capacity of 300 mA for reliable operation. Compact radial through-hole design with 9.5 mm length and 8.3 mm diameter. Operating temperature range from -40°C to 125°C for versatile usage. Maximum DC resistance of 1.84 Ω ensuring efficiency in filtering applications.
Core material is ferrite with wirewound construction for enhanced inductance stability. Termination style is radial with standardized 2-pin count and 5 mm lead spacing. Maximum self-resonant frequency of 1.6 MHz suitable for signal filtering and power supplies.
Compliant with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards. Manufactured in China with WE-TI series specifications ensuring quality and reliability. Ideal for switching power supplies, signal filtering, and medium voltage applications.
This product is manufactured in China and is new in condition. Ideal applications include industrial electronics, power supply conversions, signal conditioning, and electronic circuit filtering. Explore more Surface Mount Inductors and related electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value is 1 mH with a tolerance of ±10%.
It has a maximum DC current capacity of 300 mA.
The inductor has a length of 9.5 mm, a height of 10 mm, and a diameter of 8.3 mm.
The maximum self-resonant frequency is 1.6 MHz, making it suitable for signal filtering applications.
The operating temperature range is from -40°C to 125°C.
The maximum DC resistance is 1.84 Ω, ensuring efficiency in filtering applications.
The termination style is radial with a standardized 2-pin count and 5 mm lead spacing.
The core material is ferrite, which contributes to enhanced inductance stability.
It complies with IEC 61249-2-21, JEDEC JS709B, RoHS, and REACH standards.
This inductor is suitable for applications such as signal filtering, switching power supplies, and electronic circuit filtering.
The inductor is packaged in a tray for convenient handling and storage.
This inductor belongs to the WE-TI series, designed for robust industrial and electronic component use.
