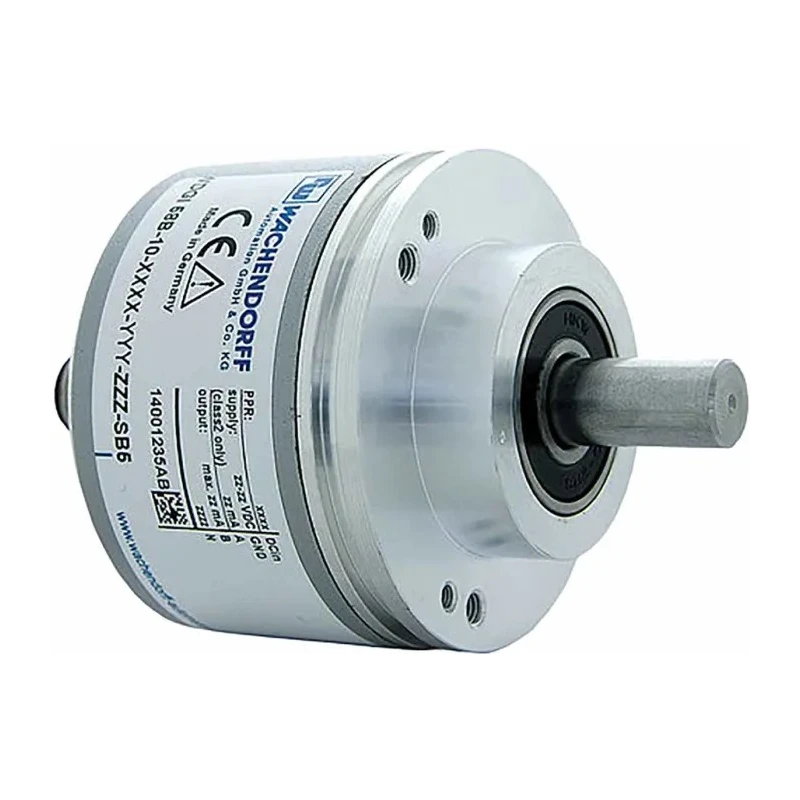

Wachendorff WDGI 58B Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 10 mm WDG58B-500-ABN-G24-K3

Free Delivery in India | Lowest Global Shipping Charges

Wachendorff WDGI 58B Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 10 mm WDG58B-500-ABN-G24-K3

Name: Wachendorff WDGI 58B Series Incremental Encoder 30V DC, 500 PPR, HTL Signal, Solid Shaft 10 mm WDG58B-500-ABN-G24-K3
Brand: Wachendorff
SKU: 120164
Price: 436.38 USD
Availability: InStock



Category Motion Control Sensors Brand Wachendorff Condition New

Specifications

Country of Origin	India
Brand	Wachendorff
Model	WDG58B-500-ABN-G24-K3
IP Rating	IP65, IP67
Mount Type	Clamping Flange Mount
Standards	DIN VDE 0160
Series	WDGI 58B
Overall Width	83mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Shaft Diameter	10mm
Overall height	83mm
Switching Frequency	200kHz
Shaft Type	Solid
Terminal type	Cable and Connector
Pulses per Revolution	500ppr
Maximum Supply Voltage	30V dc
Encoder Technology	Incremental
Maximum Revolutions	8000rpm
Output Signal Type	HTL
High protection class according to DIN 40 050	IP65 (shaft), IP67 (cover)

Key Features

The encoder operates at a maximum speed of 8000 rpm with a switching frequency of 200 kHz.
It features a solid shaft with a 10 mm diameter for durable mechanical coupling.
High protection class with IP65 rating for the shaft and IP67 rating for the cover ensures robustness in industrial environments.
Equipped with a sturdy industrial aluminium housing and clamping flange mount for secure installation.
Suitable for applications requiring reliable rpm, position, distance, or speed measurement in harsh conditions.
Operating temperature range spans from -20°C up to 80°C for extended usability.
The encoder supports a maximum supply voltage of 30V DC to maintain stable operation.

Product Description

Wachendorff WDG58B-500-ABN-G24-K3 incremental encoder is a high-precision rotary transducer designed for industrial motion control applications. It provides 500 pulses per revolution (PPR) with a HTL output signal, enabling accurate measurement of rpm, position, distance, or speed.

This model features a robust solid shaft with a diameter of 10 mm, housed in a sturdy aluminium enclosure that offers excellent protection under challenging industrial conditions. The encoder includes a clamping flange mount for easy and secure installation on machinery.

Designed to withstand harsh environments, the encoder boasts IP65 protection on the shaft and IP67 protection on the cover, ensuring resistance against dust and water ingress as per DIN 40 050 standards. It operates reliably across a wide temperature range of -20°C to 80°C and supports a maximum rotational speed up to 8000 rpm, with a switching frequency of 200 kHz.

The device runs on a supply voltage of up to 30V DC and features cable and connector type terminals for interface compatibility. Additionally, it supports very high axial and radial loads and includes an early warning output with highly precise chip analysis for predictive maintenance.

The encoder technology employed is incremental, compliant with DIN VDE 0160 standards. Its compact dimensions include an overall height and width of 83 mm, making it suitable for a variety of mechanical setups. The WDGI 58B series encoder is ideal for industrial automation, manufacturing machinery, and process control where precise motion feedback is critical.

Its durable construction and environmental ratings make it suitable for applications in industrial, automotive, and laboratory environments.

For enhanced control and reliability in automation systems, the Wachendorff WDGI 58B delivers performance and ruggedness tailored for demanding industrial settings. Explore more Motion Control Sensors and automation solutions at EnvMart.
