Molex C-Grid III Series Right Angle Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded 90121-0780

Free Delivery in India | Lowest Global Shipping Charges

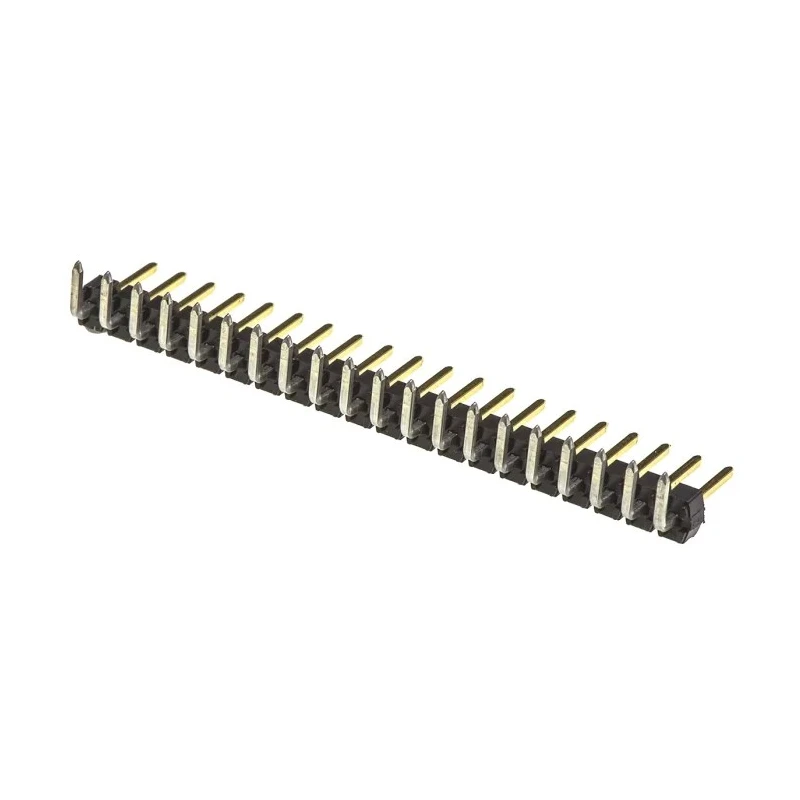

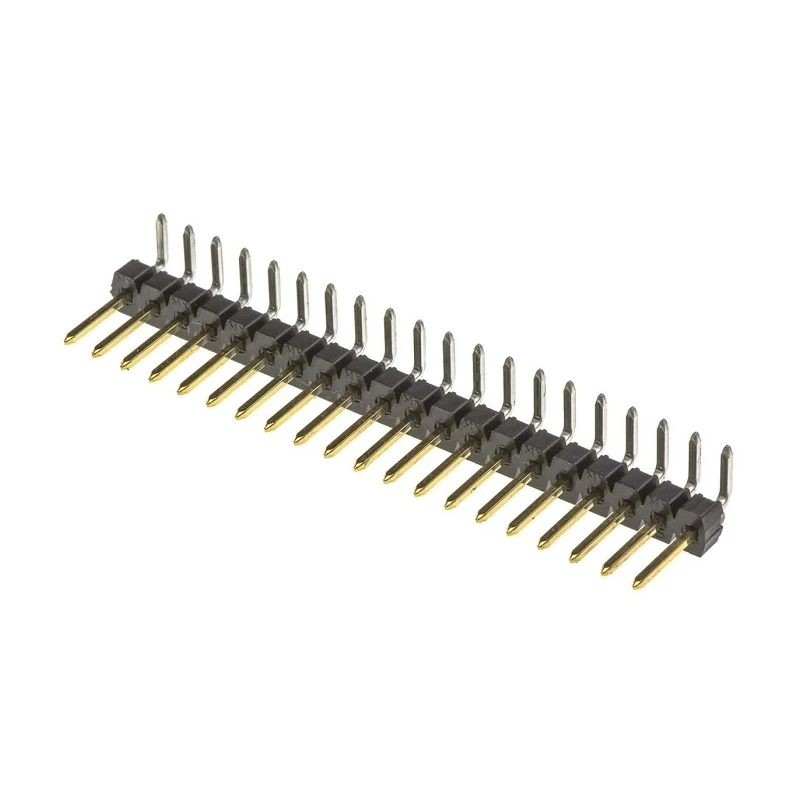

Molex C-Grid III Series Right Angle Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded 90121-0780

Name: Molex C-Grid III Series Right Angle Through Hole Pin Header 20 Contacts 2.54 mm Pitch 1 Row Unshrouded 90121-0780
Brand: Molex
SKU: 119745
Price: 4 USD
Availability: InStock



Category PCB Pin Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polyester
Contact Material	Brass
Series	C-Grid III
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	2.9mm
Mating Pin Length	6.75mm

Key Features

Part of the C-Grid III series engineered for secure and flexible board interconnections.
Right angle orientation enables compact PCB designs.
Gold-plated brass contacts ensure high conductivity and corrosion resistance.
Through hole mount type for robust mechanical stability.
Rated for 3A current and 350V voltage applications.
Breakaway design allows pin header length customization.
Suitable from -55°C to 125°C operating temperatures.
Ideal for industrial, computer, medical, telecommunications, and automotive electronics.

Product Description

Molex 90121-0780 C-Grid III Series Right Angle Through Hole Pin Header features 20 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch. This unshrouded wire-to-board connector supports currents up to 3A and voltages up to 350V, making it suitable for a broad range of electronic applications from industrial equipment to consumer electronics.

The right angle orientation facilitates efficient PCB layouts and cable routing. The headers utilize a through-hole mounting style for enhanced mechanical strength once soldered to circuit boards. Designed to operate reliably within a temperature range from -55°C to 125°C, this pin header delivers high electrical performance and mechanical stability.

These pin headers come with a breakaway feature, allowing easy resizing to meet design specifications. The high retention force of the contacts ensures secure mating with C-Grid III series sockets and crimp housings for dependable board-to-board and wire-to-board connections.

Commonly used across diverse sectors such as telecommunications, medical devices, computing, industrial automation, and automotive electronics, this Molex product supports critical electronic connectivity requirements.

Part of the robust C-Grid III interconnection system. Right angle orientation for space-efficient PCB assembly. Gold-plated brass contacts for conductivity and corrosion resistance. Through hole mount for mechanical durability.

3A current and 350V voltage rated connector. Temperature rated from -55°C to 125°C. High pin retention force and solder joint stability. Breakaway pins for size customization. Unshrouded design for straightforward mating operations.

Versatile use in industrial, medical, IT, telecommunications, and automotive sectors. Explore more high-quality PCB headers and connectors from Molex in the Electronics Components category at EnvMart for reliable and efficient electronic assemblies.

Explore more products in our PCB Pin Header category.
