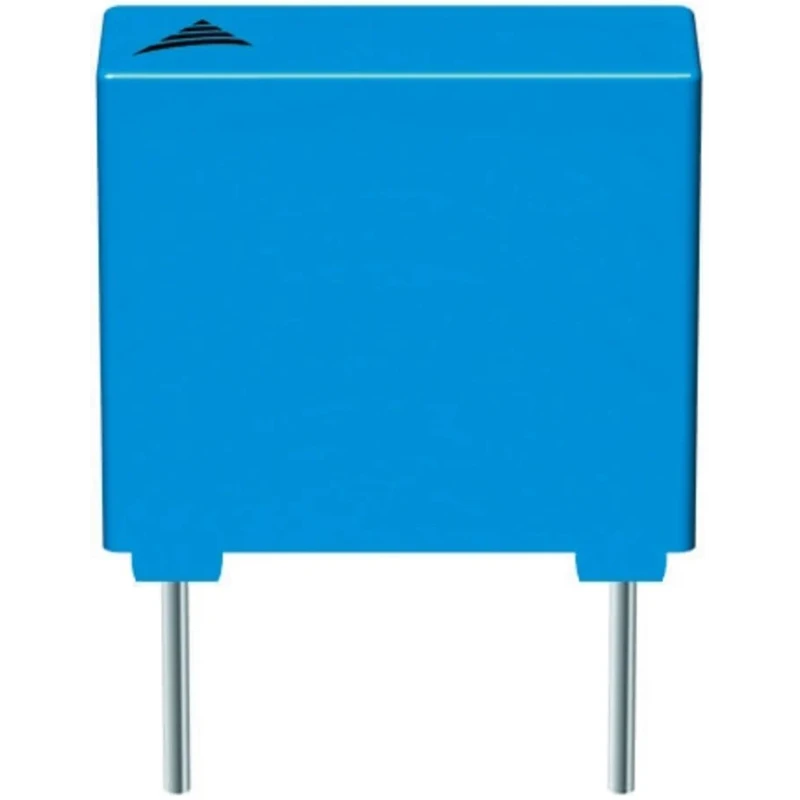

TDK B32023 Film Capacitor 68 nF 300V AC 300 V DC Through Hole 2 Pin Pitch 22.5mm B32023A3683M000

The TDK B32023A3683M000 film capacitor is a high-quality electronic component constructed with polypropylene film and a plastic case sealed with epoxy resin, both rated UL 94 V-0 for safety and reliability. It features a capacitance of 68 nF and is rated for 300 V AC and DC operation, making it suitable for diverse electronics applications requiring stable and dependable capacitance.

This capacitor uses through hole mounting technology with a lead pitch of 22.5 mm and lead diameter of 0.8 mm, ensuring secure PCB connections. Its compact dimensions of 26.5 mm length, 16 mm height, and 7 mm width enable integration in tight circuit board layouts.

With a maximum operating temperature of 110°C and an operating temperature range from -40°C to 110°C, this component functions reliably in challenging industrial, automotive, and consumer electronics environments. It provides good self-healing properties and meets key industry standards and approvals including UL and CSA certifications.

Typical use cases include applications as a Y2 class capacitor for interference suppression and line to ground protection circuits, where high voltage endurance and safety are critical. The two-pin configuration allows straightforward incorporation in various designs.

Polypropylene construction with plastic case and epoxy sealing. Compact size with 26.5 x 7 x 16 mm dimensions. Rated voltage 300 V AC and 300 V DC. Lead pitch 22.5 mm and lead diameter 0.8 mm. Operating temperature range -40°C to 110°C.

Certified to UL and CSA standards. Suitable for Y2 class interference suppression and line to ground applications.

This product is widely used in electronic component assemblies for industrial, laboratory, HVAC, and general purpose electronic manufacturing. Its reliable construction and approvals make it a trusted choice for demanding capacitor applications.
