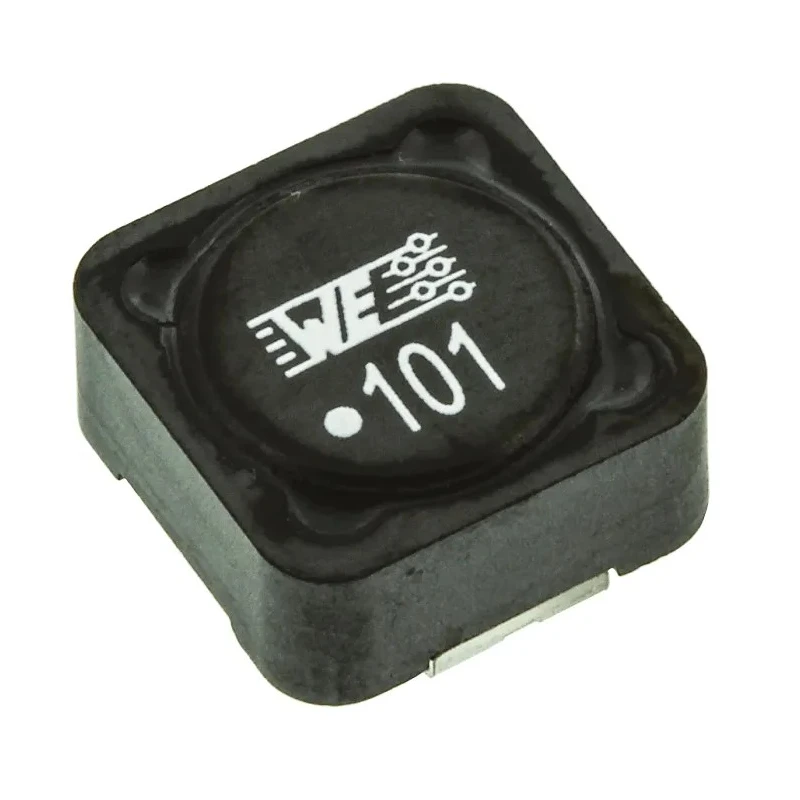

Wurth Elektronik WE-PD 1260 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±20 % 1.53 A IDC 74477120

Wurth Elektronik 74477120 is a shielded wirewound surface mount inductor designed with a ferrite core to provide 100 μH inductance with a tolerance of ±20 %. This component supports a maximum DC current of 1.53 A and features a compact 1260 package size (12 mm length, 8 mm diameter, 6 mm height) suitable for surface mount technology (SMT) assembly.

The magnetically shielded construction minimizes electromagnetic interference and leakage fields, making it ideal for use in sensitive electronic environments. It is engineered for applications in switching regulators, integrated DC/DC converters, and high-efficiency voltage conversion systems such as graphic cards and other advanced consumer and industrial electronics.

Rated for operation in temperature ranges from -40°C up to 125°C, this inductor ensures reliable performance under demanding thermal conditions. Its wirewound design and ferrite core construction provide low self-losses and excellent saturation characteristics. The maximum DC resistance of 160 mΩ allows for efficient current handling with minimal losses.

This product complies with the AEC-Q200 automotive standard, ensuring suitability for automotive electronics and other rugged applications. Additionally, it meets international regulatory standards including RoHS, REACH, JEDEC JS709B, and IEC 62024-2-2020, reflecting its environmental compliance and quality assurance.

The inductor is supplied in tape and reel packaging to support efficient automated placement in manufacturing processes. The recommended solder profile is reflow soldering, which aligns with standard surface mount assembly techniques.

Magnetically shielded to reduce electromagnetic interference and leakage fields. High current handling capability with a maximum DC current of 1.53 A. Wide operating temperature range from -40°C to +125°C. Compact 1260 package size optimizing PCB real estate.

Wirewound ferrite core construction ensures low losses and stability. Compliant with AEC-Q200 automotive and international safety standards. Suitable for switching regulators and integrated DC/DC converters. Sourced from China with rigorous quality control.

Supports advanced electronic designs requiring high efficiency and reliable inductors. Explore more Surface Mount Inductors and related electronic components at EnvMart for your industrial and commercial applications.
