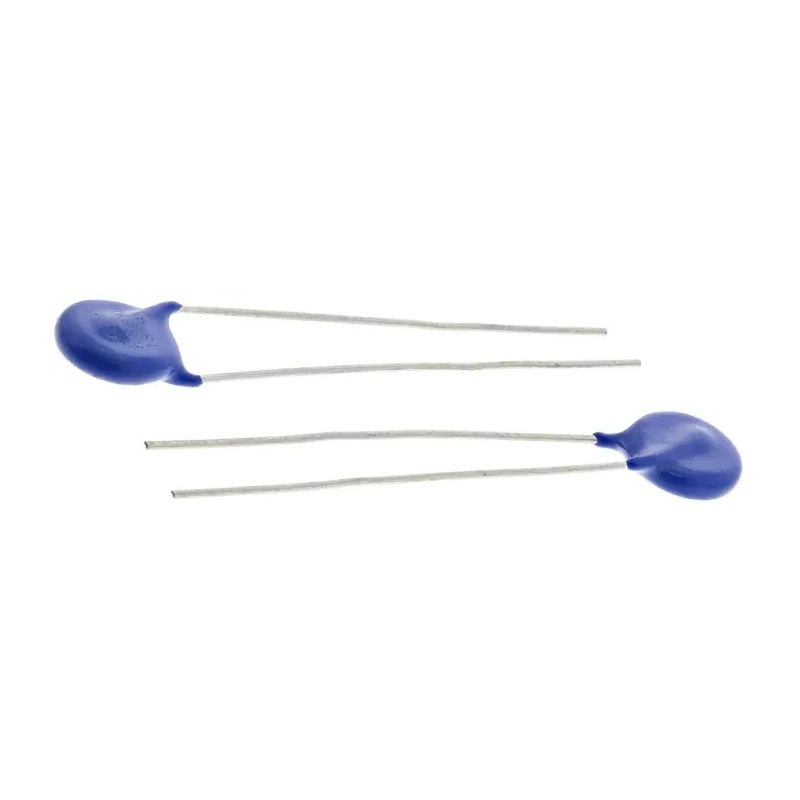

TDK Standard Metal Oxide Varistor 1.05nF 2.5A 35V Radial Leaded Epoxy-Coated B72207S0350K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 1.05nF 2.5A 35V Radial Leaded Epoxy-Coated B72207S0350K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	9mm
Brand	TDK
Material	Metal
THICKNESS	3.9mm
Length	36mm
Model	B72207S0350K101
Depth	3.9mm
Mount Type	Lead
Series	Standard
Maximum Operating Temperature	85°C
Capacitance	1.05nF
Minimum Operating Temperature	-40°C
Standards/Approvals	S10, UL, CSA, S14 K11 ... K680, IEC, S20 K11 ... K1000, 07 K11 ... K460, CQC S05, VDE
Pin Count	2
Termination Style	Radial
Lead Pitch	5mm
Clamping Current	2.5A
Maximum Surge Current	250A
Varistor Voltage	35 V
Panasonic, V Surge Absorber 1.5 nF 2.5 A, Clamping 1355 V, Varistor 56 VBrand	Panasonic

Key Features

Designed for reliable surge protection in electronic circuits.
Epoxy-coated ceramic body with tinned copper leads for durability.
Rated for maximum 250A surge current (8/20 μs impulse).
Operating temperature range from -40°C to 85°C.
Standard radial mount with 5mm lead pitch for easy PCB insertion.
Complies with safety approvals including UL, CSA, and VDE standards.
Provides stable voltage clamping to protect devices from voltage spikes.

Product Description

TDK B72207S0350K101 is a Standard Metal Oxide Varistor specifically engineered for surge protection in electronic components and circuits. This varistor features a capacitance of 1.05nF, a clamping current rating of 2.5A, and a varistor voltage of 35V, making it suitable for protecting sensitive equipment against transient voltage spikes and surges.

The device is constructed with a radial lead epoxy-coated ceramic body and tinned copper leads, ensuring long-lasting mechanical stability and excellent electrical performance. It supports a maximum surge current of 250A (8/20 µs waveform) and operates efficiently within temperatures ranging from -40°C to 85°C.

With a compact form factor having dimensions of 36mm in length, 9mm diameter, and 3.9mm thickness, it fits conveniently into standard PCB layouts with a 5mm lead pitch. The varistor meets international safety standards and approvals including UL, CSA, and VDE, endorsing its reliability and compliance in industrial and commercial electronic applications.

Applications include surge protection in power supplies, industrial controls, automotive electronics, and general electronic devices requiring suppression against voltage surges. The robust construction and material choice enable it to absorb transient energy efficiently and provide stable clamping voltage performance.

Designed for reliable surge protection in electronic circuits. Epoxy-coated ceramic body with tinned copper leads for durability. Rated for maximum 250A surge current (8/20 μs impulse). Operating temperature range from -40°C to 85°C.

Standard radial mount with 5mm lead pitch for easy PCB insertion. Compact dimensions: 36mm length, 9mm diameter, 3.9mm thickness and depth. Complies with safety approvals including UL, CSA, and VDE standards. Provides stable voltage clamping to protect devices from voltage spikes.

This varistor is an essential component in the electronics industry for enhancing device longevity and preventing damage caused by transient voltage. It is widely used in industrial, manufacturing, telecommunications, and consumer electronic applications.
