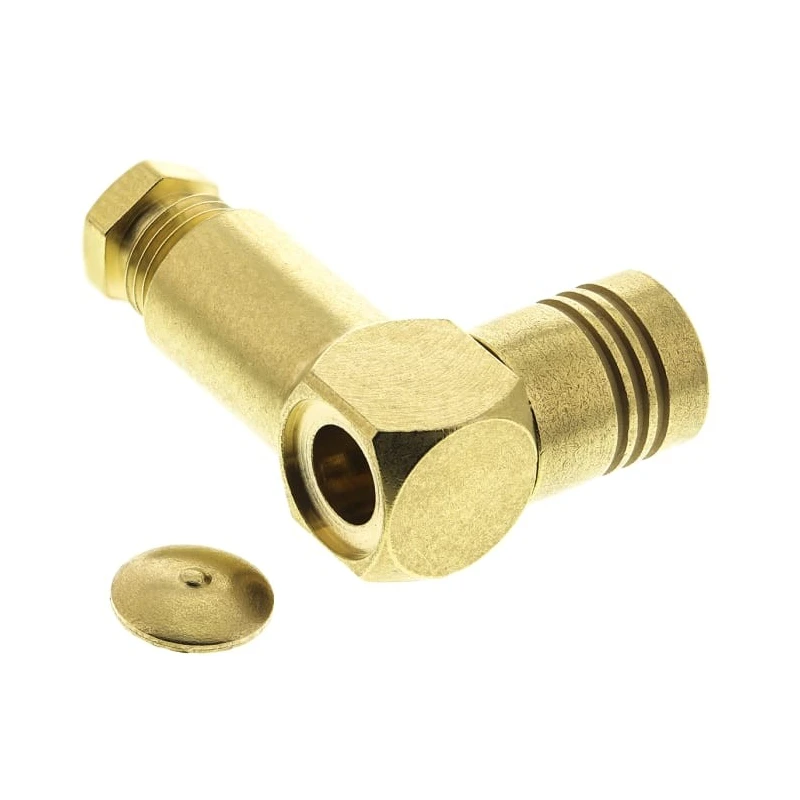

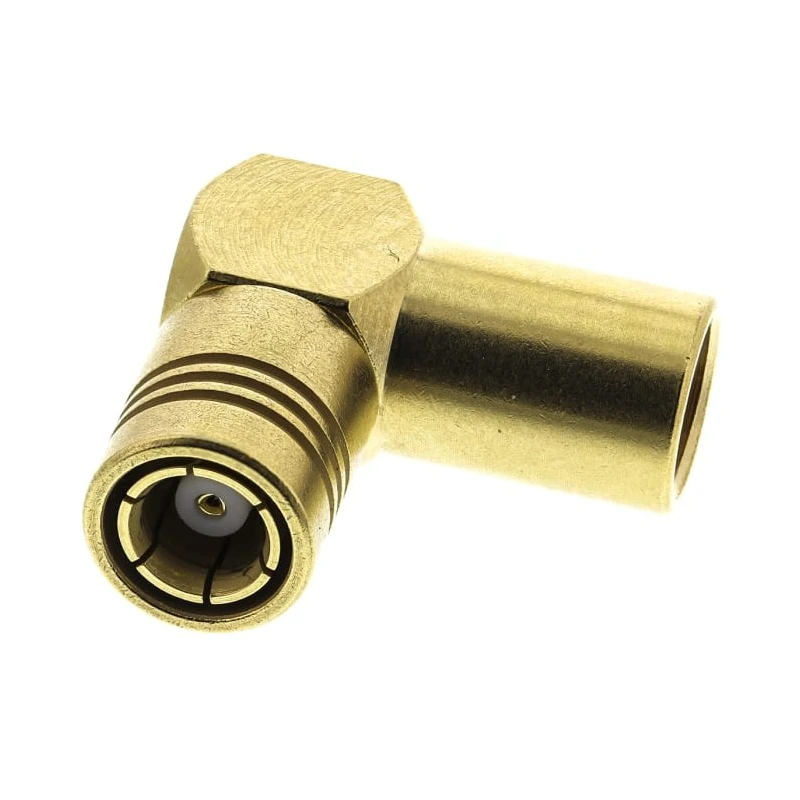

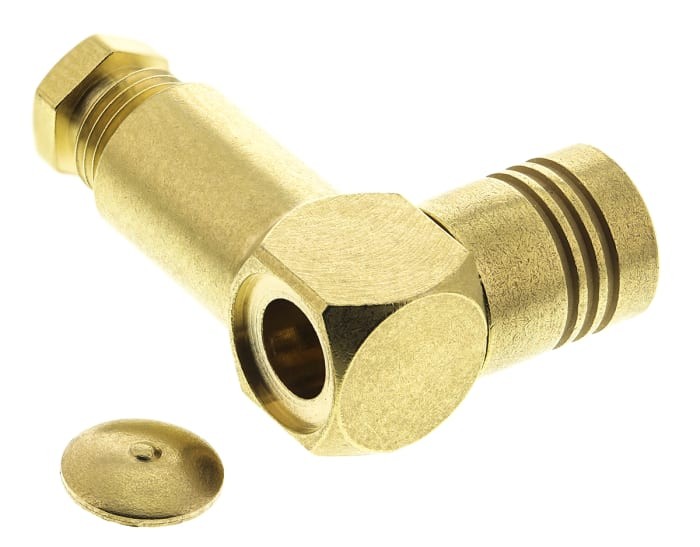

Radiall SMB Series 50 Ω Coaxial Connector Cable Male SMB Right Angle Body Clamp R114165000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Right Angle |
| Model | R114165000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Clamp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG-316, RG179, RG187, RG188 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
Key Features
- This coaxial connector supports an impedance of 50 ohms, suitable for RF applications.
- It is designed with a gold-plated body and contact plating for superior conductivity and corrosion resistance.
- The connector is compatible with RG-316, RG179, RG187, and RG188 cable types, offering versatile usage.
- The right-angle orientation allows compact installation in constrained spaces.
- Operational frequency supports up to 4 GHz, suitable for high-frequency signal transmission.
- The clamp termination ensures a robust mechanical connection without soldering.
- The connector operates reliably between -65°C and 165°C, accommodating various environmental conditions.
- Beryllium copper contact material enhances electrical performance and durability.
Product Description
Radiall R114165000W SMB Series 50 Ω Coaxial Connector Cable is a high-quality male SMB coaxial connector with a right angle body and clamp termination designed for cable mounting. The gold-plated nickel body and gold over nickel plated beryllium copper contacts provide excellent electrical conductivity and corrosion resistance, ensuring reliable signal transmission in demanding environments.
This connector supports a stable impedance of 50 ohms and is suitable for use with RG-316, RG179, RG187, and RG188 cable types, making it versatile across various RF coaxial cable applications. It features a snap-on coupling mechanism for quick and secure connections.
Operating frequency up to 4 GHz makes it ideal for radio frequency communications, instrumentation, and other high-frequency applications. The device can operate in extreme temperatures ranging from -65°C to 165°C, making it suitable for industrial, telecommunications, laboratory, and manufacturing environments.
The clamp termination style eliminates the need for soldering, simplifying installation while ensuring mechanical robustness. The right angle body orientation facilitates connections in confined spaces, optimizing system design and assembly.
Beryllium copper contacts with gold plating over nickel improve durability and maintain signal integrity over time. The connector complies with industry standards like MIL-C-39012, ensuring high-quality performance.
This coaxial connector supports an impedance of 50 ohms, suitable for RF applications. Gold plated nickel body and gold over nickel contact plating enhance conductivity. Compatible with multiple coaxial cable types including RG-316 and RG179.
Right angle body design enables compact and space-saving installations. Operates reliably at frequencies up to 4 GHz. Clamp termination provides secure mechanical connection without soldering. Temperature range from -65°C to 165°C suits harsh environments.
Beryllium copper contact material ensures excellent electrical performance. Meets MIL-C-39012 standards for dependable RF connections.
This Radiall SMB Coaxial Connector cable is essential for professionals in electronics manufacturing, telecommunications, aerospace, and laboratory instrument assembly needing reliable RF coaxial connections. Browse the Electronics Components category on EnvMart for related Radiall connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a stable impedance of 50 ohms, making it suitable for RF applications.
It operates reliably at frequencies up to 4 GHz, which is ideal for high-frequency signal transmission.
This unit is compatible with RG-316, RG179, RG187, and RG188 cable types, providing versatility in usage.
It can operate in temperatures ranging from -65°C to 165°C, accommodating various environmental conditions.
This model features a clamp termination style, which ensures a secure mechanical connection without the need for soldering.
The body is made of gold-plated nickel, while the contacts are beryllium copper with gold over nickel plating, enhancing conductivity and corrosion resistance.
It has a right-angle orientation, allowing for compact installation in constrained spaces.
Yes, it complies with industry standards like MIL-C-39012, ensuring high-quality performance in RF applications.
This connector features a male contact gender, suitable for various applications requiring male connections.
The body of this model is plated with gold, which enhances its conductivity and corrosion resistance.
It is classified as a standard size connector, suitable for typical applications in electronics.
The connector is manufactured in India, ensuring adherence to quality standards.
