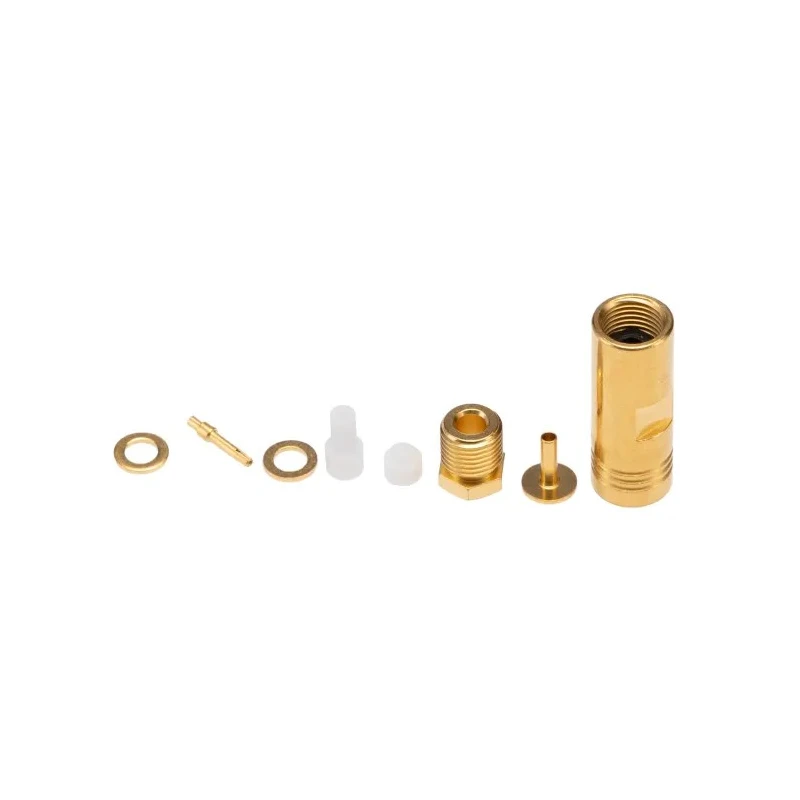

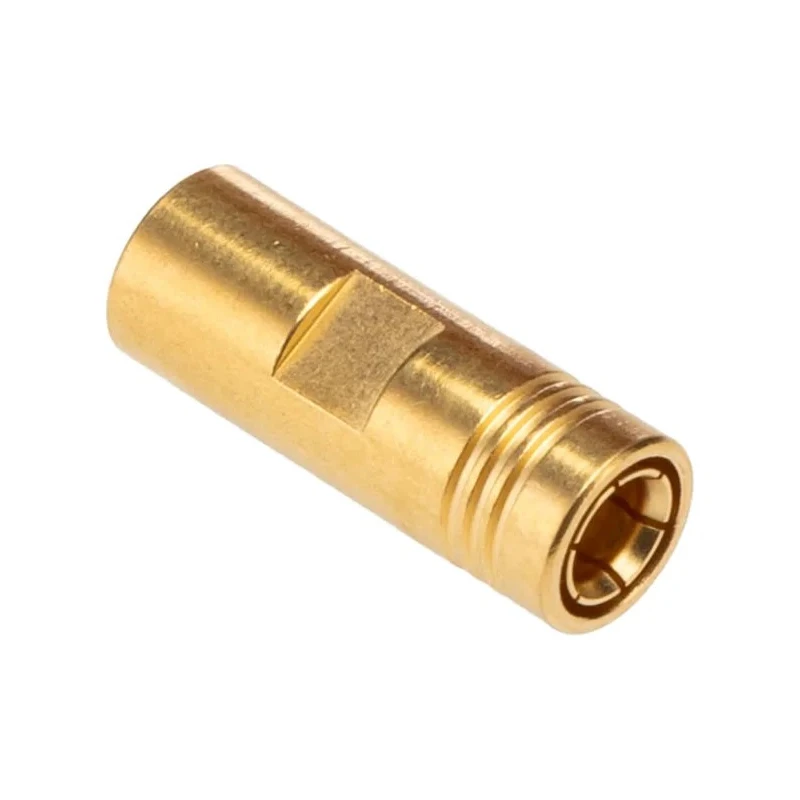

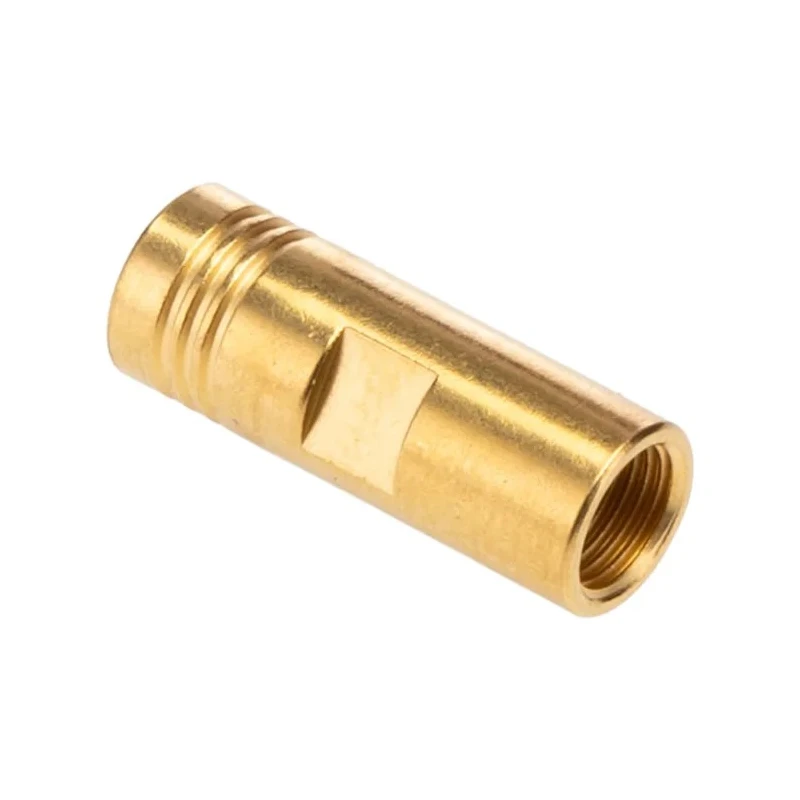

Radiall SMB Series 50 Ω Coaxial Connector Cable Male SMB, Straight Body Clamp R114003000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Straight |
| Model | R114003000W |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | SMB |
| Termination Type | Clamp |
| Maximum Operating Temperature | 100°C |
| Cable Type | RG178, RG196 |
| Minimum Operating Temperature | -55°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMB |
| Body Plating | Gold |
| RG178 SOLDER PLUGBrand | IMS |
Key Features
- Designed for use with RG178 and RG196 cable types providing reliable impedance matching of 50 Ω.
- Gold plated body and contact plating for enhanced conductivity and corrosion resistance.
- Operating frequency up to 4 GHz suitable for RF applications.
- Clamp termination ensures firm retention on coaxial cables.
- Operating temperature range from -55°C to 100°C for versatile environmental conditions.
- Contact material made from beryllium copper for high durability and performance.
- Compatible with MIL-C-39012 standard connectors ensuring industry compliance.
- Reverse polarity design to avoid mismating in applications.
Product Description
Radiall R114003000W SMB Series 50 Ω Coaxial Connector Cable Male SMB features a straight body clamp termination designed for RG178 and RG196 coaxial cables. This connector provides robust mechanical and electrical performance for RF applications up to 4 GHz operating frequency.
The connector body is gold plated nickel to offer superior corrosion resistance, while the male contact is gold plated over nickel on beryllium copper for reliable signal transmission. Its clamp termination type offers a secure and stable attachment to the cable, supporting industrial and laboratory uses where dependable impedance and signal integrity are critical.
Designed with a reverse polarity and meeting MIL-C-39012 standards, this product ensures compatibility and reliability in specialized communication and testing equipment. It operates reliably in a broad temperature range of -55°C to 100°C, suitable for varying environmental conditions.
Compatible with RG178 and RG196 coaxial cable types. Gold plated body and contact plating provide excellent corrosion resistance. Operating frequency supports RF signal transmission up to 4 GHz. Clamp termination affords firm cable retention and effective electrical contact.
Durable beryllium copper contact material ensures long service life.
This connector is ideal for applications in telecommunications, radio-frequency engineering, test instruments, and industrial electronics where precise impedance matching and low signal loss are required.
Explore more high-performance Coaxial Connectors and related components in the Electronics & Electricals category at EnvMart for your professional and industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this coaxial connector is 4 GHz, making it suitable for RF applications.
This model is compatible with RG178 and RG196 coaxial cable types, ensuring reliable impedance matching.
The operating temperature range for this connector is from -55°C to 100°C, allowing it to function in various environmental conditions.
It features a clamp termination type, which ensures firm retention on coaxial cables for stable connections.
The connector body is made of gold-plated nickel, while the male contact is gold plated over nickel on beryllium copper for enhanced conductivity and durability.
Yes, it is compatible with MIL-C-39012 standard connectors, ensuring compliance with industry specifications.
The contact gender of this connector is male, designed for secure connections with compatible devices.
The body of this connector is plated with gold, providing excellent corrosion resistance.
The impedance rating of this connector is 50 Ω, suitable for various RF applications.
The orientation of this connector is straight, designed for direct cable connections.
The size classification of this connector is standard, making it versatile for various applications.
The contact material is beryllium copper, known for its high durability and performance in electrical applications.
