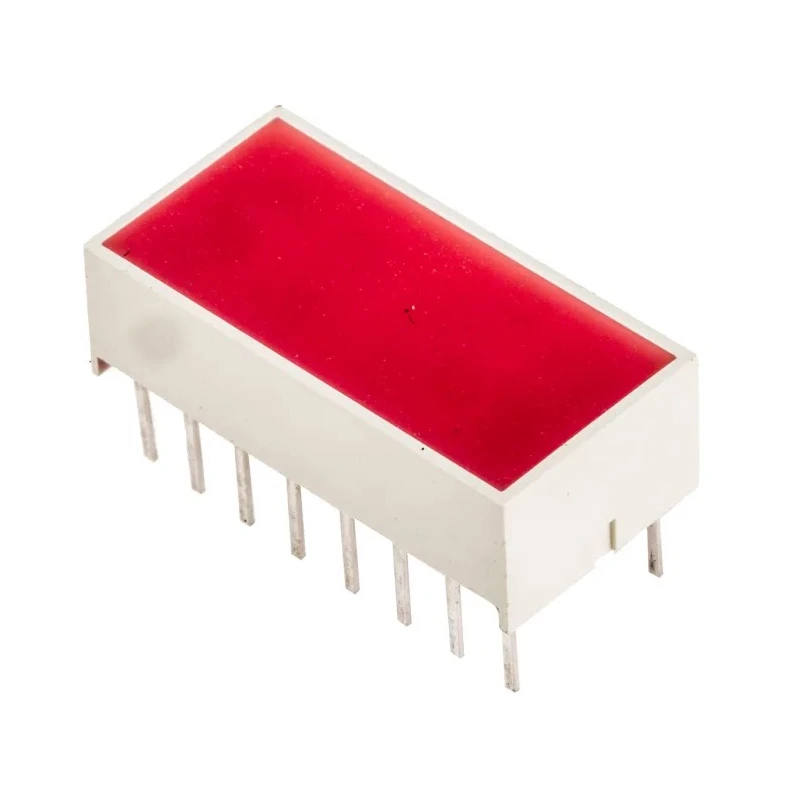

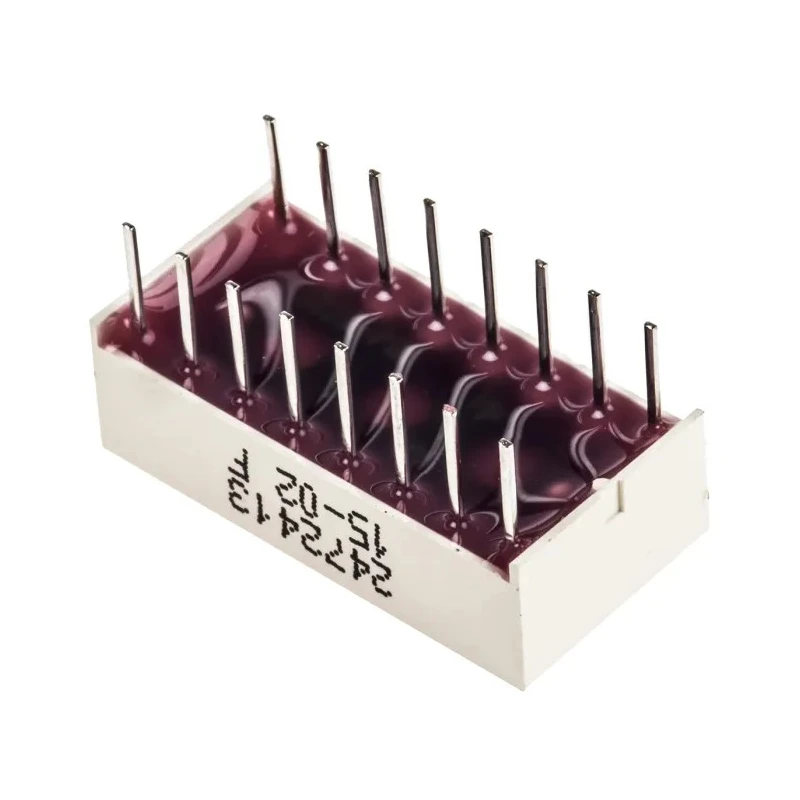

Kingbright Light Bar LED Display Red 25mcd 9.9 mm KB-2685 ID
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Light Bar |
| Brand | Kingbright |
| Model | KB-2685 ID |
| Mount Type | Through Hole |
| Character height | 9.9mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 1 |
| External Width | 20mm |
| External Depth | 6.1mm |
| External Height | 9.9mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 25mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 625nm |
| Colour of Face | White |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| KB-2655ID Kingbright Light Bar LED Display Red 20mcd 9.9 mmBrand | Kingbright |
| Character Width | 20mm |
Key Features
- The LED features a dominant wavelength of 625nm for vivid red color.
- Character dimensions are 20mm width and 9.9mm height ensuring clear display characters.
- Designed for through-hole mounting with external dimensions 20mm (W) x 9.9mm (H) x 6.1mm (D).
- Operates within a temperature range of -40°C to 85°C for robust performance.
- Forward voltage is 2V with power dissipation of 75mW and forward current rated at 30mA.
- White face color provides enhanced visibility and contrast.
- RoHS compliant, suitable for environmentally conscious applications.
Product Description
Kingbright KB-2685 ID Light Bar LED Display in red color, rated at 25mcd luminous intensity and featuring a compact 9.9 mm character height, is designed for use in electronic display modules requiring clear single-segment indicators. It operates reliably within a wide temperature range from -40°C up to 85°C, making it suitable for industrial, laboratory, manufacturing, and consumer electronics applications.
This LED light bar has a dominant wavelength of 625nm providing vibrant red illumination. The character width of 20mm and height of 9.9mm offer optimal size for displays requiring clear numeric or status indications. Designed with through-hole mount type, it measures 20mm in width, 9.9mm in height, and 6.1mm depth, facilitating easy installation on printed circuit boards.
The device features a white face color that enhances contrast for improved legibility in various lighting conditions. Electrical characteristics include a forward voltage of 2V, forward current of 30mA, and a power dissipation of 75mW ensuring efficient operation with minimal power loss.
Kingbright’s KB-2685 ID is compliant with RoHS standards, supporting environmentally friendly manufacturing and application. It is ideal for integration into LED displays used in electronic components, instrumentation, measurement devices, instrumentation panels, and automotive dashboards.
The LED features a dominant wavelength of 625nm for vivid red color. Character dimensions are 20mm width and 9.9mm height ensuring clear display characters. Designed for through-hole mounting with external dimensions 20mm (W) x 9.9mm (H) x 6.1mm (D).
Operates within a temperature range of -40°C to 85°C for robust performance. Forward voltage is 2V with power dissipation of 75mW and forward current rated at 30mA. White face color provides enhanced visibility and contrast.
RoHS compliant, suitable for environmentally conscious applications. Browse our wide selection of Kingbright LED Displays and electronic components at EnvMart for reliable and high-quality electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the KB-2685 ID LED display is rated at 25mcd.
This LED display has a dominant wavelength of 625nm, providing a vivid red color.
The external dimensions of the KB-2685 ID are 20mm in width, 9.9mm in height, and 6.1mm in depth.
The forward voltage is 2V, and the forward current is rated at 30mA.
It operates within a temperature range of -40°C to 85°C, suitable for various environments.
This model is designed for through-hole mounting, facilitating easy installation on printed circuit boards.
The face color of this LED display is white, which enhances visibility and contrast.
Yes, it is RoHS compliant, supporting environmentally friendly applications.
The power dissipation rating for this LED display is 75mW.
This LED display is ideal for use in electronic components, instrumentation, measurement devices, and automotive dashboards.
The character height is 9.9mm, and the character width is 20mm, ensuring clear display characters.
The KB-2685 ID features a single segment design.
