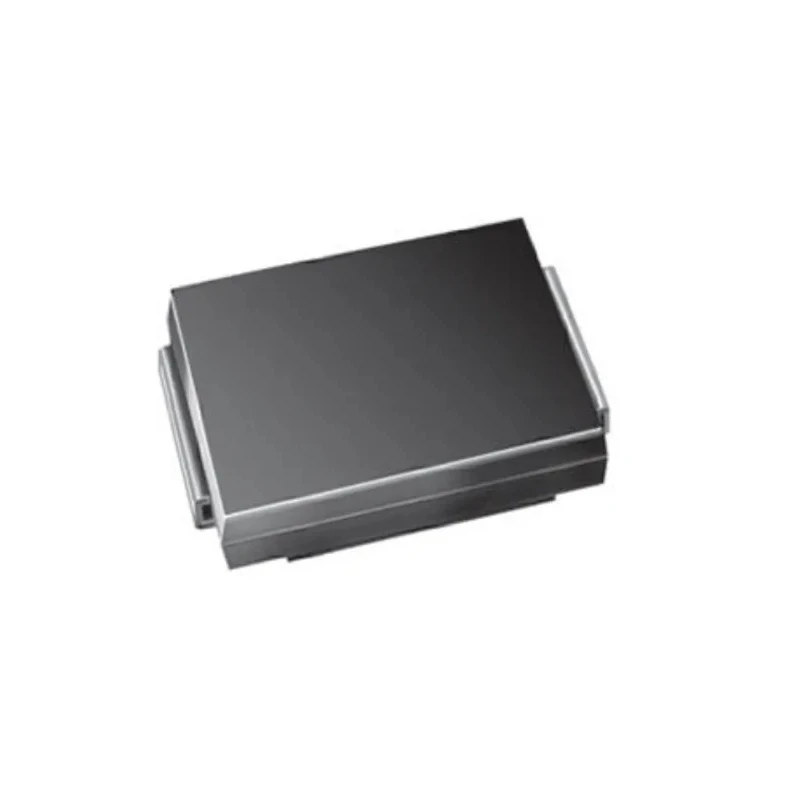

Vishay Bi-Directional TVS Diode 3000 W Peak Pulse Power, Surface Mount DO-214AB SMC3K85CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SMC3K85CAHM3_A/H |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Clamping Voltage VC | 137V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 94.4V |
| Maximum Reverse Stand-off Voltage Vwm | 120V |
| Peak Pulse Power Dissipation Pppm | 3000W |
| Maximum Peak Pulse Current Ippm | 21.9A |
| Maximum Reverse Leakage Current | 1μA |
| Standards/ApprovalsJ-STD-002, RoHS, UL 94, ISO 16750-2, ISO 7637-2 | 2011, JESD 22-B102 |
Key Features
- Provides bidirectional transient voltage protection for sensitive electronic circuits.
- Features minimum breakdown voltage of 94.4 V and maximum reverse stand-off voltage of 120 V.
- Capable of handling peak pulse current of 21.9 A and clamping voltage of 137 V.
- Operates reliably within a temperature range of -55°C to 175°C.
- Complies with automotive standard AEC-Q101 ensuring high reliability in automotive applications.
- Conforms to multiple industry standards including J-STD-002, RoHS, UL 94, and ISO certifications for quality and safety.
- Optimized for protection against voltage transients caused by inductive load switching and lightning spikes.
- Designed with low incremental surge resistance and very fast response time for effective circuit protection.
Product Description
Vishay SMC3K85CAHM3_A/H Bi-Directional TVS Diode is a high-performance transient voltage suppressor designed to protect electronic circuits from voltage spikes caused by inductive load switching and lightning surges. Rated at 3000 W peak pulse power with a 10/1000 µs waveform, this surface-mount device (DO-214AB package) provides robust bidirectional clamping capability for sensitive components including ICs, MOSFETs, and sensor lines.
With a minimum breakdown voltage of 94.4 V and a maximum reverse stand-off voltage of 120 V, the diode efficiently diverts transient energy while maintaining integrity at elevated operating temperatures from -55°C up to 175°C. It supports a peak pulse current of 21.9 A, featuring a clamping voltage of 137 V which limits voltage spikes to safe levels.
This device complies with automotive quality standard AEC-Q101 and a variety of industry standards such as J-STD-002, RoHS, UL 94, ISO 16750-2, ISO 7637-2:2011, and JESD 22-B102, ensuring reliability and environmental compliance. Its low incremental surge resistance and fast response minimize transient stress on protected circuits.
The Vishay SMC3K85CAHM3_A/H is ideal for applications in consumer electronics, industrial control systems, automotive electronics, and telecommunications infrastructure where protection from transient voltages is critical to maintaining device performance and longevity.
Key attributes include surface mount package type DO-214AB, minimal reverse leakage current of 1 μA, and bidirectional polarity. This device meets Moisture Sensitivity Level (MSL) 1 requirements per J-STD-020 with a peak lead temperature of 260 °C, making it suitable for standard PCB assembly processes.
Bidirectional transient voltage suppression with 3000 W peak pulse power dissipation. Minimum breakdown voltage of 94.4 V and maximum reverse stand-off voltage of 120 V. Maximum peak pulse current of 21.9 A with clamping voltage of 137 V.
Wide operating temperature range from -55°C to 175°C. Automotive qualified to AEC-Q101 standard. Compliant with J-STD-002, RoHS, UL 94, ISO 16750-2, ISO 7637-2, and JESD 22-B102 standards. Low incremental surge resistance and very fast response time.
Moisture Sensitivity Level 1 per J-STD-020, lead-free finish. Package type: DO-214AB (SMC), surface mount.
The Vishay SMC3K85CAHM3_A/H Bi-Directional TVS Diode is a reliable solution for protecting sensitive electronics in industrial, automotive, communications, and consumer product environments. Browse the Electronics & Electricals > Semiconductor > TVS Diode category in EnvMart for compatible components and related devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay SMC3K85CAHM3_A/H has a peak pulse power dissipation rating of 3000 W.
The minimum breakdown voltage for this diode is 94.4 V.
The maximum reverse stand-off voltage is 120 V.
It can handle a maximum peak pulse current of 21.9 A.
The clamping voltage is 137 V.
This model operates reliably within a temperature range of -55°C to 175°C.
The package type is DO-214AB (SMC), which is a surface mount design.
It complies with the automotive standard AEC-Q101, ensuring high reliability in automotive applications.
This diode conforms to several standards including J-STD-002, RoHS, UL 94, ISO 16750-2, ISO 7637-2, and JESD 22-B102.
The maximum reverse leakage current is 1 μA.
It is optimized for protection against voltage transients caused by inductive load switching and lightning spikes, suitable for consumer electronics, industrial control systems, and automotive electronics.
The moisture sensitivity level is MSL 1 per J-STD-020, making it suitable for standard PCB assembly processes.
