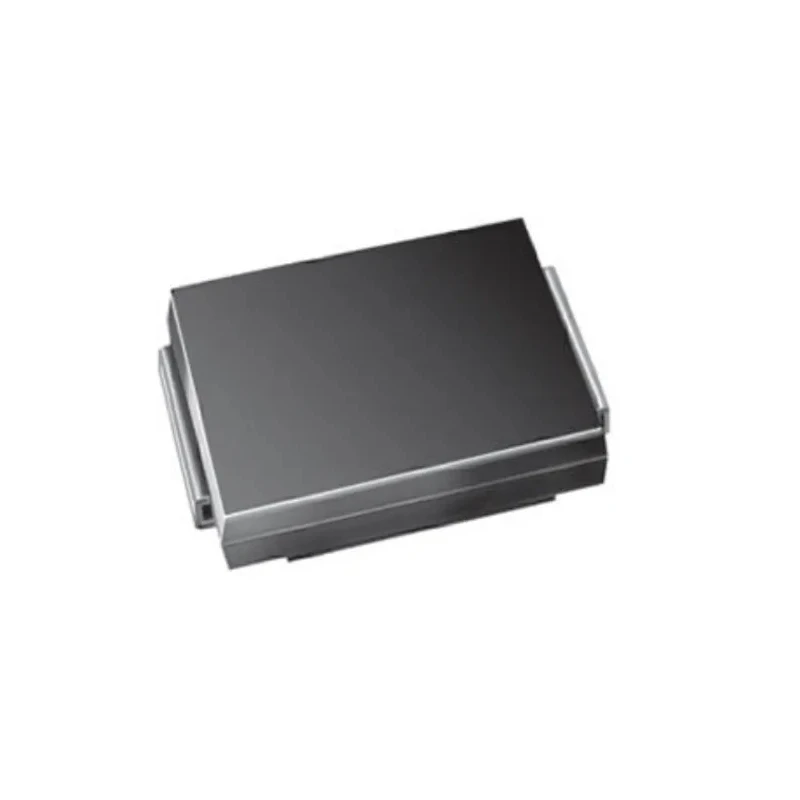

Vishay Bi-Directional TVS Diode 3000 W Peak Pulse Power Surface Mount DO-214AB Package SMC3K60CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SMC3K60CAHM3_A/H |
| Mount Type | Surface |
| Series | SMC3K |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Clamping Voltage VC | 96.8V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 66.7V |
| Maximum Reverse Stand-off Voltage Vwm | 60V |
| Peak Pulse Power Dissipation Pppm | 3000W |
| Test Current It | 1μA |
| Maximum Peak Pulse Current Ippm | 31A |
| Maximum Reverse Leakage Current | 1μA |
| Standards/ApprovalsJESD 22-B102, J-STD-002, ISO 16750-2, ISO 7637-2 | 2011, UL 94, RoHS |
Key Features
- Offers bi-directional voltage transient protection with a minimum breakdown voltage of 66.7 V.
- Maximum reverse stand-off voltage is rated at 60 V for reliable clamping.
- Peak pulse current capacity reaches up to 31 A with excellent clamping voltage performance at 96.8 V.
- Designed to operate across a wide temperature range from -55°C to 175°C for harsh environments.
- ESD protection is integrated, complying with automotive AEC-Q101 standards.
- Meets multiple international standards including JESD 22-B102, J-STD-002, ISO 16750-2, and RoHS.
- Compact surface mount DO-214AB (SMC) package supports easy PCB integration.
- Very fast response time with low incremental surge resistance for enhanced reliability.
Product Description
Vishay SMC3K60CAHM3_A/H is a bi-directional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes induced by inductive load switching and lightning. With a peak pulse power dissipation rating of 3000 W and a compact DO-214AB (SMC) surface mount package, it is suitable for applications across consumer, industrial, automotive, and telecommunication sectors.
This TVS diode offers robust protection with a minimum breakdown voltage of 66.7 V and maximum reverse stand-off voltage of 60 V, ensuring effective voltage clamping at 96.8 V. It supports a peak pulse current of 31 A and provides ESD protection suitable for high-reliability automotive applications meeting AEC-Q101 standards.
Operating across a temperature range from -55°C to 175°C, this component withstands harsh environmental conditions while maintaining excellent transient voltage suppression capabilities. It complies with recognized standards such as JESD 22-B102, J-STD-002, ISO 16750-2, ISO 7637-2:2011, UL 94, and RoHS directives.
The Vishay SMC3K60CAHM3_A/H TVS diode is ideal for protecting integrated circuits, MOSFETs, and signal lines in sensitive electronics, thereby enhancing device longevity and system reliability. The surface mount design facilitates easy PCB implementation providing compact footprint advantages.
Bi-directional transient voltage suppression device with fast response. 3000 W peak pulse power dissipation capability with 10/1000 µs waveform. Low incremental surge resistance improves performance under transient conditions.
Meets peak thermal and surge handling standards - MSL level 1, J-STD-020. Vehicle-grade AEC-Q101 qualification for automotive industry use. Compliant with multiple safety and environmental standards ensuring high reliability.
This product is widely used in designing robust electronic circuits requiring transient voltage protection in industrial, automotive, telecommunication, and consumer electronics sectors. Browse more Vishay semiconductor components and TVS Diodes at EnvMart to find the right solution for your protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMC3K60CAHM3_A/H is rated at 3000 W.
The maximum reverse stand-off voltage for this diode is rated at 60 V.
The minimum breakdown voltage is 66.7 V.
It can handle a maximum peak pulse current of 31 A.
The clamping voltage for this model is 96.8 V.
This diode operates across a temperature range from -55°C to 175°C.
It uses a compact surface mount DO-214AB (SMC) package.
It complies with the automotive standard AEC-Q101.
It meets multiple international standards including JESD 22-B102, J-STD-002, ISO 16750-2, and RoHS.
The maximum reverse leakage current is rated at 1μA.
This TVS diode is suitable for applications in consumer, industrial, automotive, and telecommunication sectors.
The test current for the Vishay SMC3K60CAHM3_A/H is 1μA.
