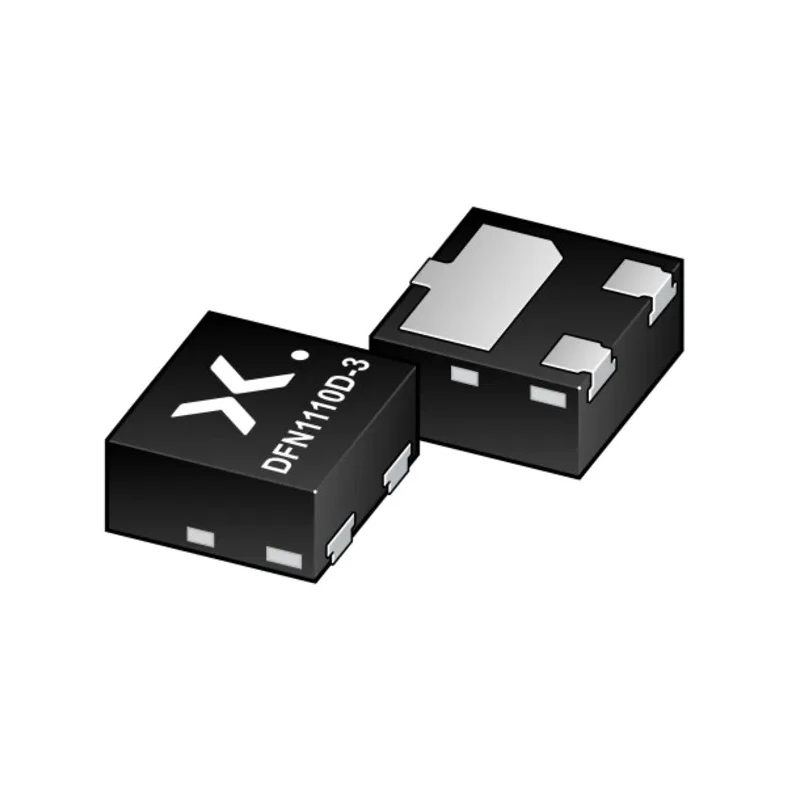

Nexperia Resistor-Equipped Transistor NPN 100 mA 50 V 3-Pin DFN1110D-3 PDTC143ZQBZ

The Nexperia PDTC143ZQBZ is a resistor-equipped NPN transistor designed for modern electronic applications requiring efficient switching and signal amplification. Featuring a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, this transistor is built in an ultra-small 3-pin DFN1110D-3 plastic package with side-wettable flanks, offering a low profile height of only 0.5 mm ideal for space-constrained PCB designs.

The integrated resistors within the transistor simplify circuit architecture by reducing external component requirements and lowering overall design complexity. This feature also decreases the number of pick and place operations in assembly, reducing manufacturing costs and enhancing production efficiency.

Engineered for durability, the device operates reliably over a broad temperature range from -55°C to a maximum of 150°C, making it suitable for both standard and automotive electronic systems meeting the AEC-Q101 standard. Additionally, the transistor complies with RoHS environmental standards supporting green manufacturing practices.

Its compatibility with automatic optical inspection (AOI) facilitates quality assurance during soldering processes, improving overall product reliability. The PDTC143ZQBZ is an effective digital component increasingly favored as a cost-saving replacement for traditional BC857 transistors in switching digital loads and controlling inputs on integrated circuits.

Use cases include industrial electronics, automotive controls, consumer digital devices, and other semiconductor applications where compact size, reliability, and integrated resistor functionality are advantageous. Its surface-mount package type matches industry standards for automated assembly and high-volume production environments.

Supports maximum DC collector current of 100 mA. Maximum collector-emitter voltage of 50 V for robust operation. Compact 3-pin DFN1110D-3 surface mount package (0.5 mm height). Integrated resistors reduce external components and simplify circuitry.

Wide operating temperature range from -55°C up to 150°C. RoHS compliant and meets automotive AEC-Q101 standards. Suitable for automatic optical inspection of solder joints. Cost saving alternative to BC857 series in digital switching applications.

Ideal for controlling IC inputs and switching loads efficiently. Explore EnvMart’s extensive range of Nexperia semiconductor components for your industrial, automotive, and consumer electronics design needs.
