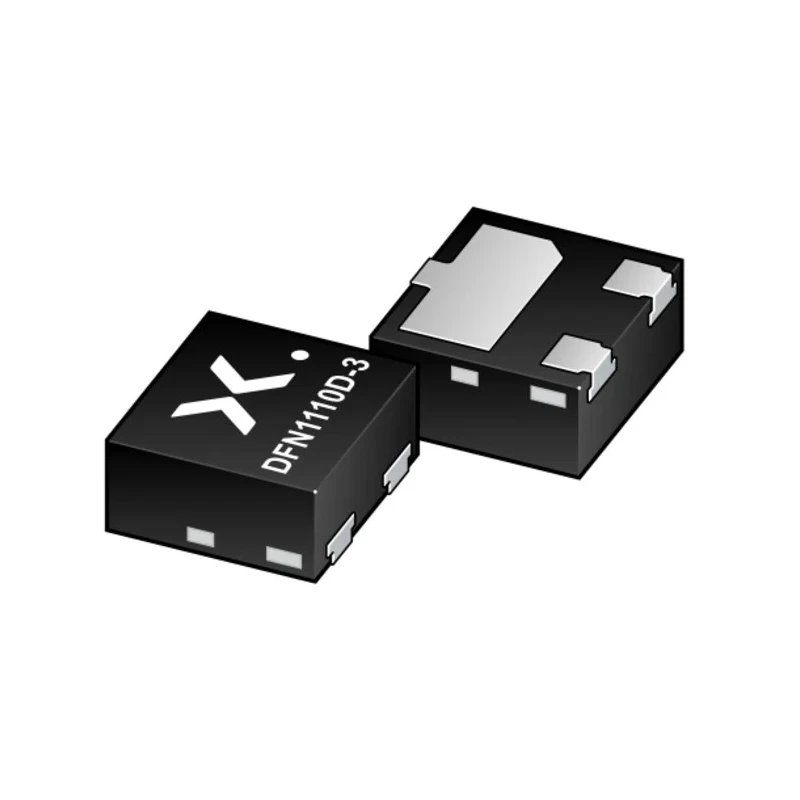

Nexperia Resistor-Equipped Transistor, NPN, 100 mA, 50 V, 3-Pin DFN1110D-3 PDTC124EQBZ

Nexperia PDTC124EQBZ is a resistor-equipped NPN transistor designed for digital and automotive semiconductor applications. It supports a maximum DC collector current of 100 mA and can withstand collector-emitter voltages up to 50 V in a compact 3-pin DFN1110D-3 surface-mount package. The built-in resistors reduce overall component count and simplify circuit assembly, making it ideal for controlling IC inputs and switching loads in industrial and commercial electronics.

Packaged in an ultra-small plastic SMD with side-wettable flanks and a low profile height of 0.5 mm, this transistor facilitates automated optical inspection (AOI) techniques, ensuring assembly quality and manufacturing efficiency. Its operating temperature range from -55°C to 150°C and compliance with automotive standard AEC-Q101 make it suitable for harsh environments and automotive electronics.

The device’s guaranteed minimum DC current gain (hFE) of 60 and a transition frequency (ft) of 230 MHz ensure reliable performance in high-frequency switching applications. It features a maximum emitter base voltage of 10 V and a maximum collector base voltage of 50 V, supporting robust transistor operation under various electrical loads.

This transistor family provides a cost-saving alternative to the BC857 series for designers seeking compact, high-performance digital transistors with integrated resistors. Typical applications include industrial control systems, automotive electronics, and digital switching circuits.

This transistor has a 3-pin surface mount DFN1110D-3 package optimized for space-saving PCB designs. Featuring built-in resistors, it simplifies circuit design and reduces component count. Offers a maximum DC collector current of 100 mA and collector-emitter voltage of 50 V.

Designed for digital applications, it provides a cost-effective alternative for BC857 series transistors. Supports a maximum operating temperature up to 150°C and operates effectively down to -55°C. Ideal for controlling IC inputs, switching loads, and use in automotive AEC-Q101 compliant environments.

Its low package height of 0.5 mm and side-wettable flanks allow suitability for automated optical inspection (AOI).
