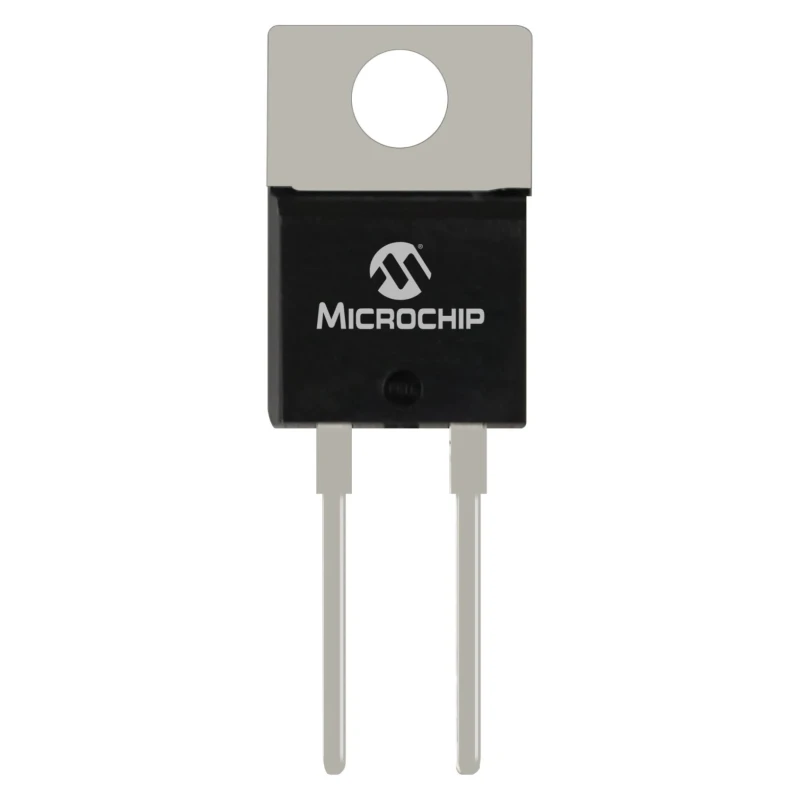

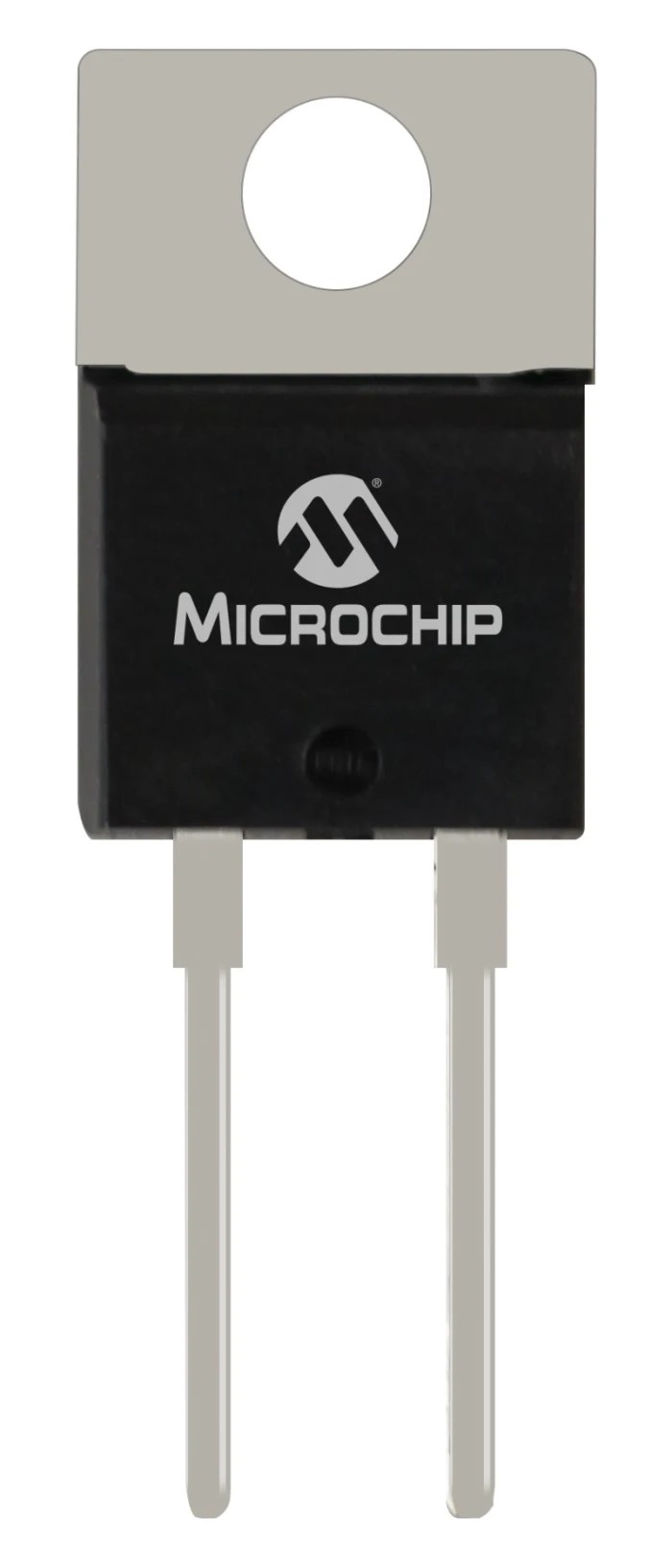

Microchip 700 V 10 A Schottky Barrier Diode Through Hole TO-220 MSC010SDA070K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Model | MSC010SDA070K |
| Mount Type | Through Hole |
| Series | MSC0 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 700V |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 58A |
| Maximum Forward Voltage Vf | 1.8V |
Key Features
- Features low forward voltage of 1.8 V ensuring efficient conduction.
- Supports a maximum continuous forward current of 10 A for robust operation.
- Peak reverse repetitive voltage rating of 700 V for high voltage applications.
- Operates reliably in temperatures ranging from -55°C to 175°C.
- Designed with avalanche energy rating and low leakage current for enhanced durability.
- Ideal for power factor correction, freewheeling diode, and anti-parallel diode applications.
- RoHS compliant and manufactured to stringent quality standards.
- Peak non-repetitive forward surge current rating of 58 A for transient conditions.
Product Description
Microchip MSC010SDA070K Schottky Barrier Diode is a high performance discrete semiconductor device rated for 700 V peak reverse voltage and 10 A maximum continuous forward current. Packaged in a TO-220 through hole mount, this diode offers low forward voltage of 1.8 V and minimal leakage current, making it suitable for power electronics requiring high efficiency and reliability.
The device features a wide operating temperature range from -55°C to 175°C, supporting applications in demanding industrial and commercial environments. Its robust avalanche energy rating and high peak non-repetitive surge current capability (58 A) ensures resilience during transient electrical stress.
This Schottky diode is perfect for use in power factor correction circuits, as a freewheeling diode, or as an anti-parallel diode in various power management and switching power supply systems. Conforming to RoHS standards, it is an environmentally friendly choice for semiconductor applications.
Microchip is a trusted global brand known for quality semiconductor products, providing reliable solutions for electronics manufacturing, industrial automation, and electrical system design.
Low forward voltage of 1.8 V for improved efficiency. Maximum continuous forward current up to 10 A for durable operation. Peak reverse repetitive voltage of 700 V suitable for high voltage circuits. Wide operational temperature range from -55°C to 175°C ensures reliability.
Avalanche energy rated for transient voltage protection. RoHS compliant for environmental safety. Through hole TO-220 package for easy mounting and heat dissipation. Peak surge current up to 58 A withstands high transient conditions.
This Microchip Schottky Barrier Diode MSC010SDA070K is ideal for industrial electronics, power supply design, renewable energy systems, automotive electronics, and other semiconductor-based applications. Browse the full Microchip range on EnvMart for compatible and complementary components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Microchip MSC010SDA070K Schottky diode is 10 A.
This model has a peak reverse repetitive voltage rating of 700 V, making it suitable for high voltage applications.
The forward voltage drop of this diode is 1.8 V, ensuring efficient conduction during operation.
It operates reliably in temperatures ranging from -55°C to 175°C, suitable for various environments.
This diode is packaged in a TO-220 through hole mount, facilitating easy installation and heat dissipation.
The peak non-repetitive forward surge current rating for this model is 58 A, allowing it to withstand transient conditions.
Yes, the Microchip MSC010SDA070K is RoHS compliant, ensuring it meets environmental safety standards.
It is ideal for applications such as power factor correction, freewheeling diode, and anti-parallel diode in power management systems.
The diode features an avalanche energy rating that provides enhanced durability during transient electrical stress.
This model belongs to the MSC0 series of Schottky diodes manufactured by Microchip.
The Microchip MSC010SDA070K is manufactured in India.
This diode is a Schottky type rectifier, known for its low forward voltage and fast switching capabilities.
