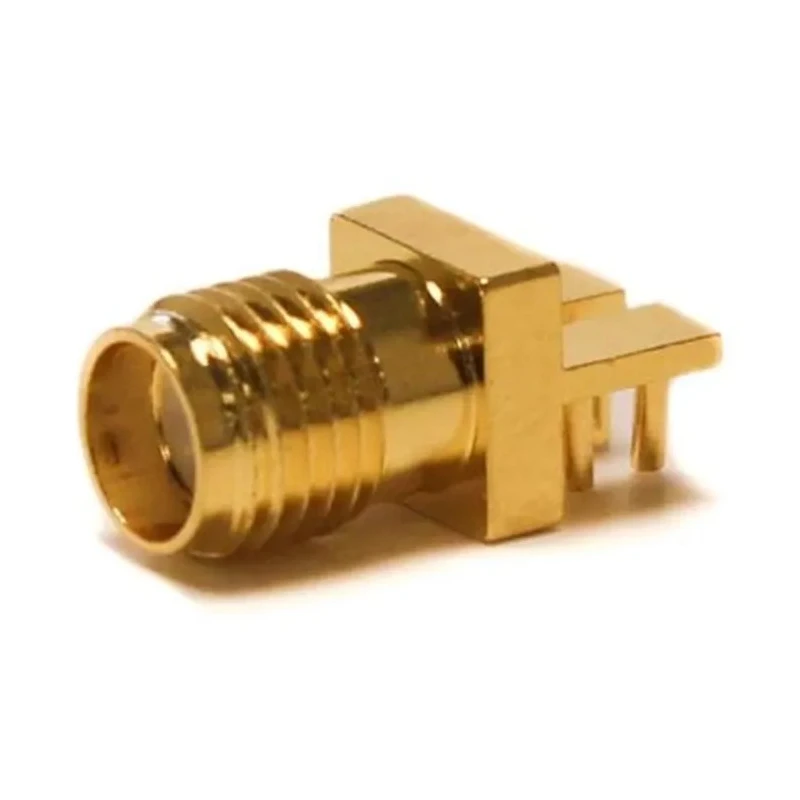

Mueller Electric SMA Series Coaxial Connector Edge Female SMA 50 Ω, Straight Body Solder BU-1420761811
Specifications
| Country of Origin | China |
|---|---|
| Brand | Mueller Electric |
| Orientation | Straight |
| Model | BU-1420761811 |
| Mount Type | Edge |
| Operating Frequency | 18GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | SMA |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Impedance | 50Ω |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Brass |
Key Features
- Constructed with gold plated brass body providing durability and corrosion resistance.
- 50 ohm impedance suitable for RF and coaxial cable use.
- Supports operating frequency up to 18 GHz ensuring high performance.
- Operates reliably in temperature range from -65°C to 150°C.
- Features gold plated beryllium copper alloy contact for superior conductivity.
- Designed as a female edge mount SMA coaxial connector for easy integration.
- Termination type is solder suitable for stable, permanent cable connections.
- RoHS compliant ensuring environmental safety and restriction of hazardous substances.
Product Description
Mueller Electric BU-1420761811 SMA Series Coaxial Connector is a high-quality edge mount female SMA coaxial connector designed for electronic and RF applications requiring reliable signal transmission. It has a gold plated brass body ensuring strong mechanical durability and excellent corrosion resistance.
This connector features a 50 ohm impedance matched to coaxial cables for optimum signal integrity and supports frequencies up to 18 GHz, making it ideal for telecommunications, instrumentation, and laboratory applications.
The connector termination is solder type, providing dependable, long-lasting cable attachment. Operating temperature ranges from -65°C to 150°C, enabling use in diverse environmental conditions.
The contact material is gold plated beryllium copper alloy, selected for its high conductivity and resistance to wear. As an RoHS compliant component, it meets international standards for environmental safety.
Gold plated brass body construction for durability. 50 ohm impedance for signal compatibility. Operating frequency up to 18 GHz for high-performance applications. Wide operating temperature range from -65°C to 150°C. Gold plated beryllium copper alloy contact material.
Female SMA edge mount connector with straight orientation. Solder termination type for secure cable connection. RoHS compliant for hazardous substance restriction compliance.
This Coaxial Connector is widely used in electronics manufacturing, telecommunications, laboratory testing, and other electrical engineering applications where dependable high-frequency connections are essential.
Explore more connectors and accessories within the Electronics Components category at EnvMart to find compatible parts for your systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector has an impedance of 50 ohms, making it suitable for RF and coaxial cable applications.
It supports an operating frequency of up to 18 GHz, ensuring high performance in telecommunications and instrumentation applications.
The connector operates reliably in a temperature range from -65°C to 150°C, allowing for use in various environmental conditions.
The body is constructed from gold plated brass for durability, and the contact material is gold plated beryllium copper alloy for superior conductivity.
This model features a solder termination type, which provides a stable and permanent connection for coaxial cables.
It is designed as an edge mount SMA coaxial connector, facilitating easy integration into various applications.
Yes, this connector is RoHS compliant, ensuring it meets international standards for the restriction of hazardous substances.
The connector has a straight orientation, which is standard for many applications requiring coaxial connections.
It is widely used in electronics manufacturing, telecommunications, laboratory testing, and other electrical engineering applications.
The contact is gold plated, which enhances conductivity and provides resistance to wear.
This connector is manufactured in China.
This connector belongs to the SMA series, which is known for its reliability in high-frequency applications.
