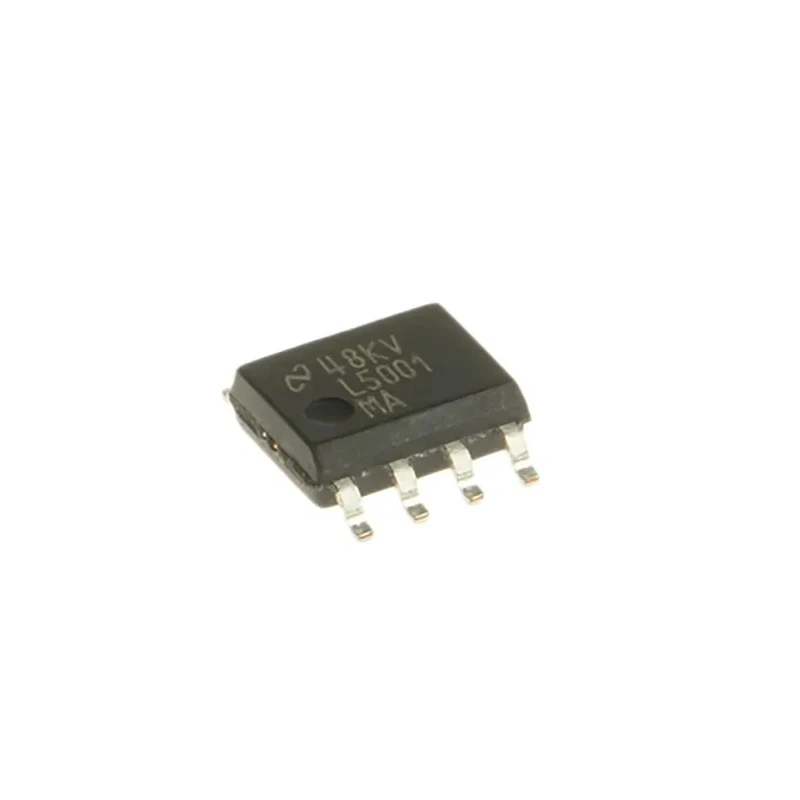

Texas Instruments 1-Channel High Voltage Boost Converter, 1 A, 1.26V, 1500 kHz, SOIC 8-Pin LM5001MA/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.45mm |
| Length | 4.9mm |
| Model | LM5001MA/NOPB |
| Width | 3.9mm |
| Mount Type | Surface |
| Output type | Adjustable |
| Series | LM5001 |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | High Voltage |
| Switching Frequency | 1500kHz |
| Number of outputs | 1 |
| Maximum Input Voltage | 75V |
| Output Voltage | 1.26V |
| Quiescent Current | 3.1mA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 3.1V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- This boost converter is designed for high voltage applications with a maximum input voltage of 75V.
- The device supports a minimum input voltage of 3.1V and delivers an adjustable positive output voltage.
- Comes packaged in a compact SOIC 8-pin form factor with dimensions 4.9mm length, 3.9mm width, and 1.45mm height.
- Designed to operate within a temperature range of -40°C to 125°C, suitable for automotive grade applications meeting the AEC-Q100 standard.
- It has a low quiescent current of 3.1mA ensuring energy efficiency during operation.
- The converter implements integrated switching regulator technology to provide efficient voltage step-up conversion.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
Texas Instruments LM5001MA/NOPB is a highly integrated 1-Channel High Voltage Boost Converter designed for demanding DC voltage regulation applications. The device outputs a 1 A maximum current and operates at an efficient switching frequency of 1500 kHz with an adjustable positive output voltage typically at 1.26V. Housed in a compact SOIC 8-pin package measuring 4.9mm in length, 3.9mm in width, and 1.45mm in height, it is suitable for surface mounting on PCB assemblies.
Designed for robustness, this boost converter supports input voltages from 3.1V up to a high maximum of 75V and is qualified under the AEC-Q100 automotive standard, making it ideal for automotive, industrial, and embedded system applications requiring precise voltage step-up regulation within harsh environments. It features a low quiescent current of 3.1mA enhancing energy efficiency and reducing power loss during standby.
The LM5001MA/NOPB is RoHS compliant and offers reliable switching regulator operation in applications such as battery-powered devices, power management subsystems, and industrial power supplies. Its high voltage capability makes it suitable for powering sensors, microcontrollers, and high-voltage loads from a lower voltage battery or power supply.
This boost converter is designed for high voltage applications with a maximum input voltage of 75V. The device supports a minimum input voltage of 3.1V and delivers an adjustable positive output voltage. Comes packaged in a compact SOIC 8-pin form factor with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height.
Operates over a temperature range of -40°C to 125°C, meeting automotive AEC-Q100 standards for quality and reliability. Features a low quiescent current of 3.1mA for low power consumption in idle states. Integrated switching regulator technology ensures efficient voltage step-up operation.
Complies with the RoHS directive, ensuring reduced environmental impact in manufacturing.
This product is a vital component for engineers and designers working in electronics, automotive systems, industrial controls, and power management solutions. Explore the Electronics & Electricals category in EnvMart for more DC/DC Converters and power management devices from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this boost converter is 75V.
This model can deliver a maximum output current of 1 A.
It operates at an efficient switching frequency of 1500 kHz.
The minimum input voltage supported is 3.1V.
The SOIC package measures 4.9mm in length, 3.9mm in width, and 1.45mm in height.
It operates within a temperature range of -40°C to 125°C.
Yes, it meets the AEC-Q100 automotive standard for quality and reliability.
It provides an adjustable positive output voltage, typically at 1.26V.
The quiescent current is 3.1mA, enhancing energy efficiency during operation.
This model is designed for surface mounting on PCB assemblies.
Yes, it complies with RoHS standards, ensuring environmentally friendly manufacturing.
It is suitable for automotive, industrial, and embedded system applications requiring precise voltage step-up regulation.
