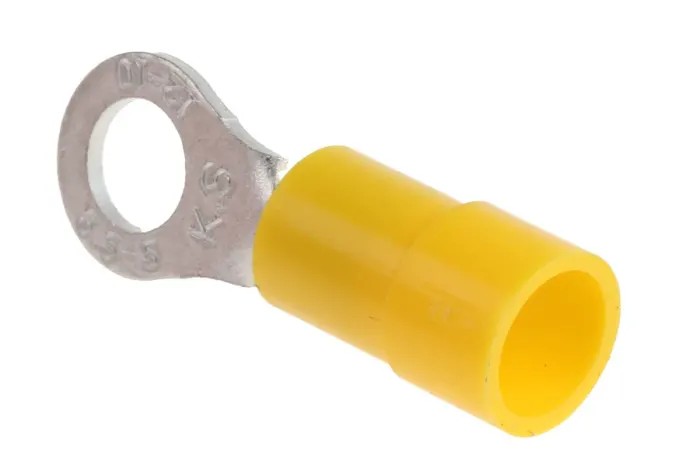

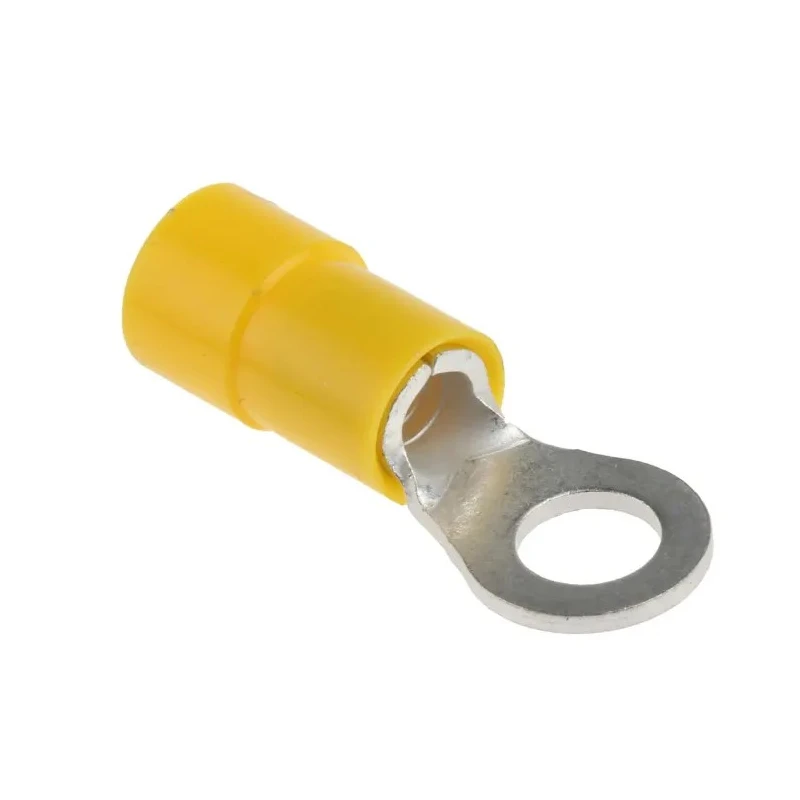

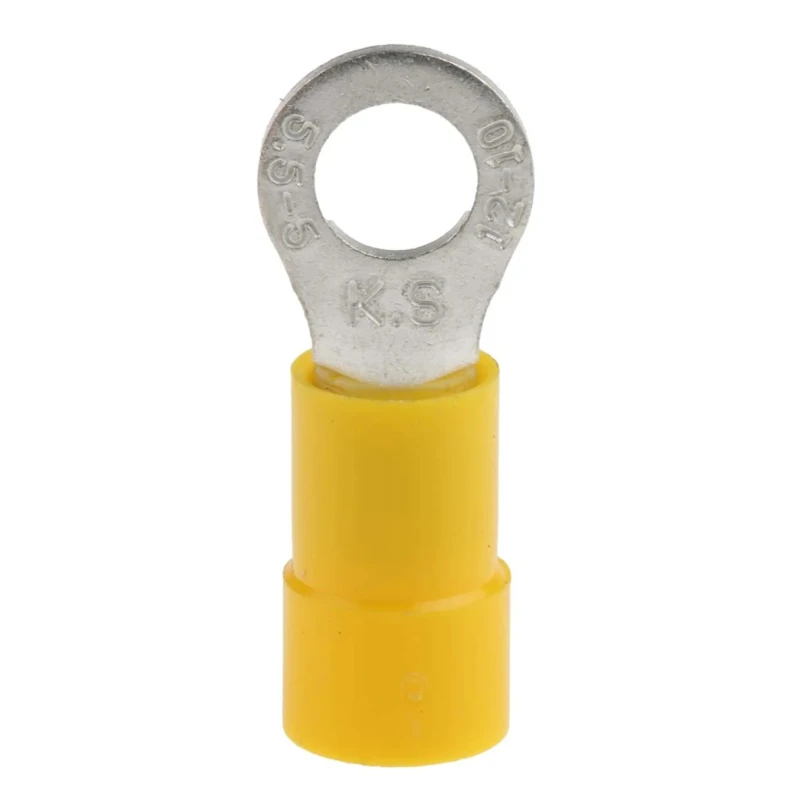

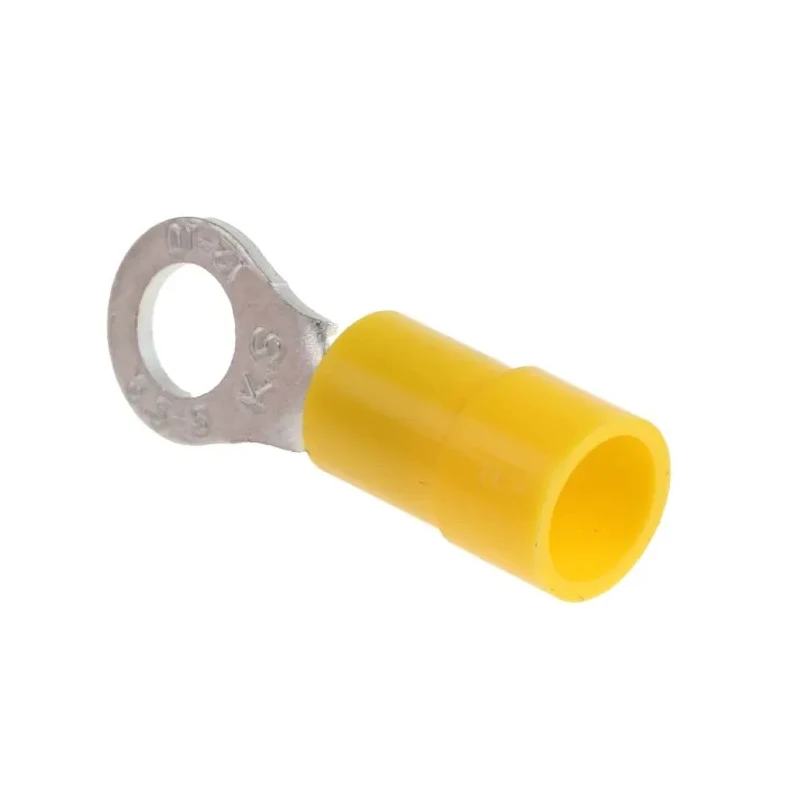

RS PRO Insulated Vinyl Ring Terminal M5 Stud Size 12 AWG to 10 AWG Yellow E245391 613-9659
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| THICKNESS | 1mm |
| Model | 613-9659 |
| Insulation | Insulated |
| Overall Length | 26mm |
| Contact Material | Copper |
| Series | E245391 |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Per Unit, RS stock no | 613-9659 |
| RS stock no | 270-7643 |
| Outer Ring Diameter | 9.5mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | M5 |
| Yellow M5 ring terminal,4-6sq.mm wireBrand | NEUTRAL |
Key Features
- Constructed from copper with tin plating for enhanced conductivity and corrosion resistance.
- Vinyl insulation provides electrical protection and quick size identification.
- Suitable for crimping with compatible tools for secure wire termination.
- Designed for use in industrial machines, automotive, communication equipment, and power supplies.
- Operational temperature range is -40°C to 105°C for diverse industrial environments.
- Compact design with overall length of 26mm and 9.5mm outer ring diameter.
- Expanded insulation entry facilitates easy wire insertion.
- Color coding aligns with industry standards for wire gauges 4 to 6 mm².
Product Description
RS PRO 613-9659 insulated ring terminal is a high-quality electrical connector designed for applications requiring a secure and effective connection to M5 stud posts. Constructed from highly conductive copper and plated with tin, this ring terminal ensures exceptional electrical conductivity and resistance to corrosion. The terminal is insulated with yellow vinyl, providing both electrical safety and a clear visual indication of the terminal size suitable for wire sizes from 12 AWG to 10 AWG (4 to 6 mm²).
The overall length measures 26mm with an outer ring diameter of 9.5mm and inner ring diameter of 5.3mm. Its 1mm thick design guarantees mechanical robustness while maintaining ease of use. The expanded insulation entry simplifies wire insertion, enabling fast and reliable crimps when used with the recommended crimp tools such as stock number 125-1964.
Operating reliably across a temperature range from -40°C to 105°C, this ring terminal is appropriate for various industrial, automotive, communication, and power supply systems. It is frequently employed in industrial machines, control systems, and domestic electrical appliances, ensuring safe and durable wire-to-post connections.
Made from copper with tin plating for high conductivity and corrosion resistance. Yellow vinyl insulation offers electrical protection and quick identification. Compatible with standard crimping tools for secure installation.
Wide operational temperature range suitable for industrial and automotive use. Compact form factor with precise stud and wire size compatibility. Color-coded insulation aligns with international wire size standards. Expanded insulation entry eases wire insertion and crimping process.
Designed for dependable wire connections in various electrical applications. Set contains 1 Pc RS PRO Insulated Vinyl Ring Terminal, M5 stud size, suitable for wire sizes 12 AWG to 10 AWG, yellow insulation. Explore more electronics components including connectors and wire terminals at EnvMart for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated ring terminal is compatible with wire sizes from 12 AWG to 10 AWG, which corresponds to 4 mm² to 6 mm².
It is constructed from copper with tin plating, which enhances electrical conductivity and provides corrosion resistance.
The operational temperature range is from -40°C to 105°C, making it suitable for diverse industrial environments.
The overall length of the terminal is 26 mm, with an outer ring diameter of 9.5 mm and an inner ring diameter of 5.3 mm.
The insulation thickness is 1 mm, providing electrical protection and mechanical robustness.
The insulation is yellow, which aligns with industry standards for wire gauge identification.
Yes, it is designed for crimping with compatible tools, ensuring secure wire termination.
It is suitable for use in industrial machines, automotive, communication equipment, and power supplies.
The stud size for this terminal is M5, which is compatible with various mounting applications.
The contact material is copper, which ensures effective electrical connections.
This ring terminal is manufactured in Taiwan.
The series designation for this ring terminal is E245391.
