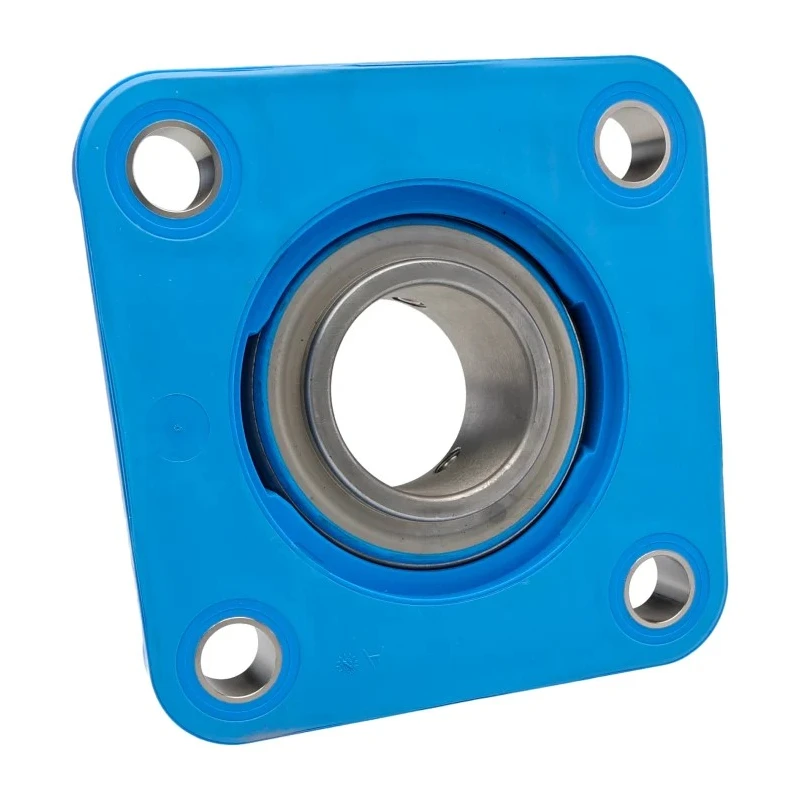

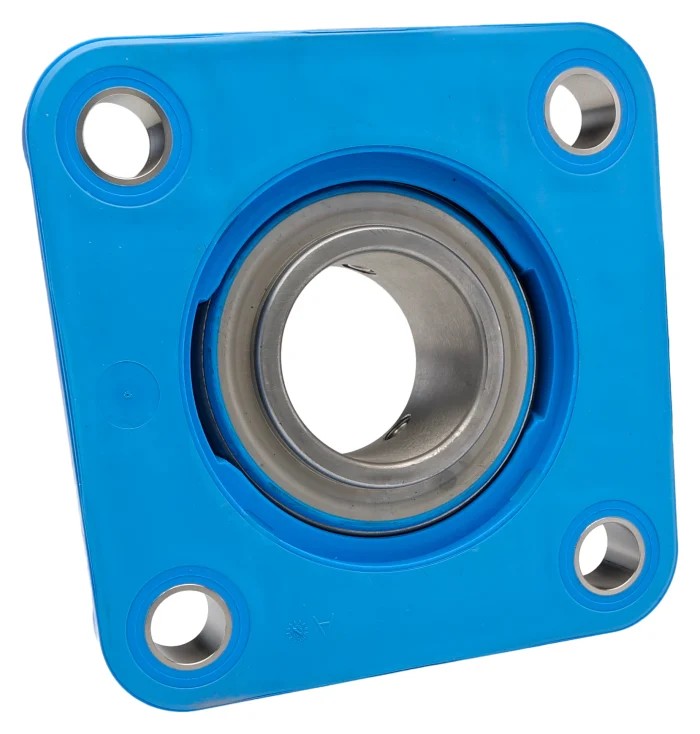

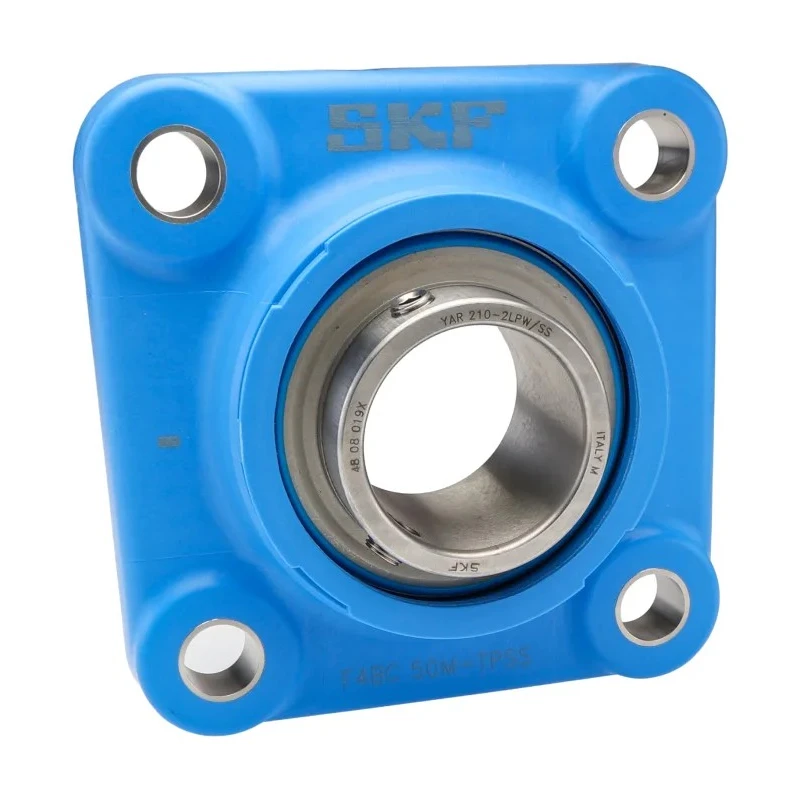

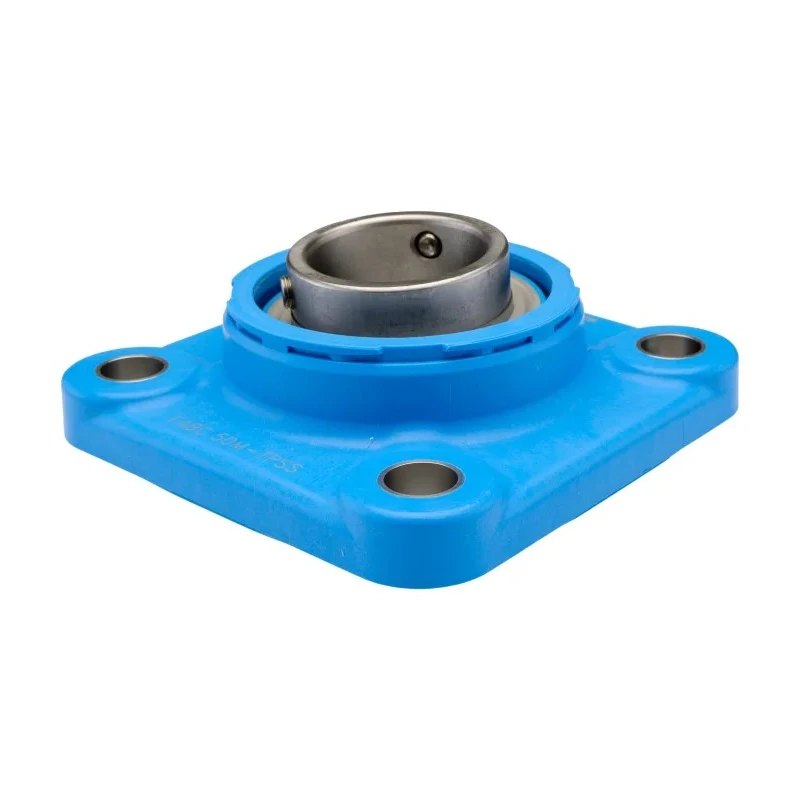

SKF Flanged Bearing Unit 50 mm Inside Diameter Stainless Steel Composite Housing Set Screw Locking F4BC 50M-TPSS

SKF F4BC 50M-TPSS is a high-performance flanged bearing unit designed specifically for food and beverage machinery applications. It features a 50 mm inside diameter stainless steel bearing housed in a composite material flange unit, combining corrosion resistance, durability, and compliance with strict hygiene standards. The unit incorporates four mounting holes and set screw locking for versatile and secure attachment in conveyor systems, packaging machines, and automation equipment.

The composite housing lowers overall weight while maintaining strength and integrity, making it ideal for high-speed washdown environments with a limiting speed of 2200 rpm. Gutter seals and flingers provide robust protection against contaminants, enhancing service life in demanding industrial settings.

This bearing unit supports dynamic loads up to 29.6 kN and static loads of 23.2 kN, ensuring reliable operation under varied mechanical stresses. Its cylindrical bore with h6 shaft tolerance guarantees precise fitment and efficient performance.

Common applications include conveyor belt systems, food packaging automation, and machinery requiring frequent cleaning to meet hygiene compliance.

Dimensions include a length of 153 mm, width and depth of 74 mm, with mounting holes sized at 17.5 mm and spaced 111 mm centre-to-centre, enabling simple installation and integration into existing systems.

Manufactured in Italy, the SKF F4BC 50M-TPSS flanged bearing unit is part of SKF's Better World line, offering extended product life and sustainability benefits tailored for industrial users.

Constructed with stainless steel bearing and composite housing for hygiene and durability. Features four mounting holes with set screw locking for secure installation. Designed for high-speed operation up to 2200 rpm. Provides dynamic load rating of 29.6 kN and static load rating of 23.2 kN.

Open end type bore with cylindrical bore suitable for shafts with h6 tolerance. Composite housing reduces weight while maintaining mechanical strength. Integrated gutter seals and flingers protect against contaminants and washdowns.

Optimized for food and beverage industry requiring frequent sanitation. Dimensions: length 153 mm, width 74 mm, depth 74 mm with 17.5 mm mounting holes centre-to-centre at 111 mm. Country of origin is Italy ensuring quality manufacturing standards.

Enhanced product life with SKF Better World extended product claim.
