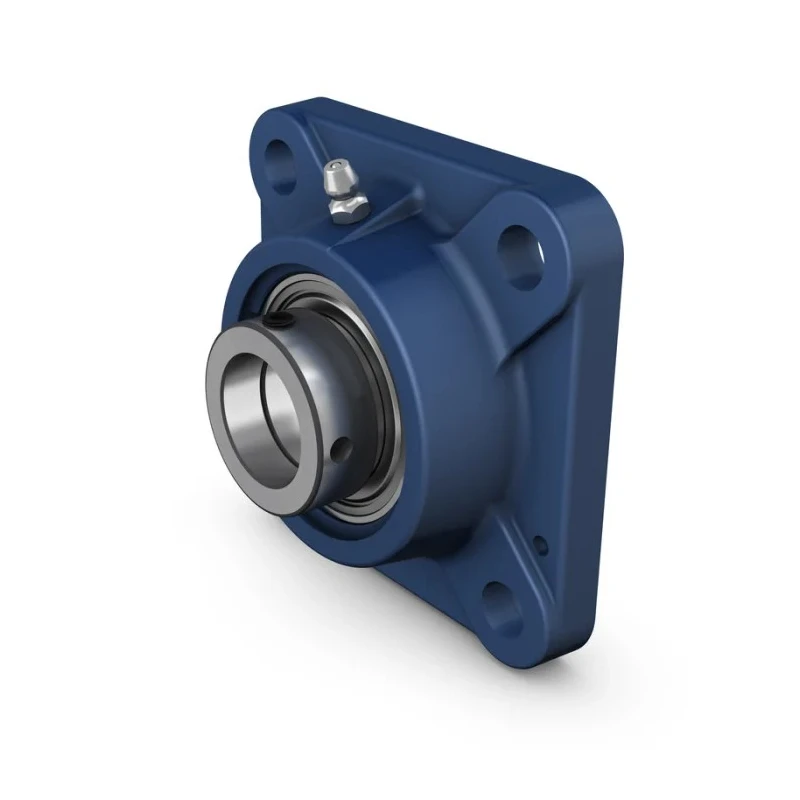

SKF 4 Hole Cylindrical Flange Bearing Unit Cast Iron 45 mm ID Eccentric Locking Collar FY 45 WF



Category Bearing Units Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Cast Iron
Length	137mm
Model	FY 45 WF
Depth	58.9mm
Width	58.9mm
Series	FY
Inside Diameter	45mm
Limiting Speed	4300rpm
End Type	Open
Bore Type	Cylindrical
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	212-4554 Brand: [SKF](https://in.rsdelivers.com/brands/skf)Manufacturers Part No.: FY 45 WF
Static Load Rating	21.6kN
Dynamic Load Rating	33.2kN
Mount Hole Size	16 mm
Mount Hole Centre-to-Centre	105mm
Number of Mount Holes	4
Locking Type	Eccentric Locking Collar

Key Features

Designed for 4-hole ball bearing installation enabling easy and secure mounting.
Constructed of cast iron for enhanced strength and wear resistance.
Equipped with an eccentric locking collar for reliable shaft locking.
Maximum limiting speed of 4300 RPM for high-speed operations.
Standard seals with extra flingers provide effective contaminant exclusion.
Compact dimensions optimize space within machinery setups.
Ideal for use in material handling, conveyor systems, automated machinery, and electric motors.
Includes a DN 6.5 mm grease fitting compatible with typical lubrication systems.

Product Description

SKF FY 45 WF flange bearing unit is a high-quality 4-hole cylindrical bearing unit with a 45 mm inside diameter and solid cast iron construction designed for durable and efficient performance in industrial applications. This unit features an eccentric locking collar that ensures secure shaft locking, suitable for robust machinery demands.

Engineered for material handling systems, conveyor applications, automated machinery, and electric motors, this bearing unit offers a maximum limiting speed of 4300 RPM, supporting high-speed operations without compromising reliability. The incorporated standard seals with extra flingers effectively protect the bearing from contaminants, enhancing service life and reducing maintenance frequency.

The compact dimensions of length 137 mm, width 58.9 mm, and depth 58.9 mm facilitate integration into tight machinery spaces. The flank mounting with 4 holes and mount hole centre-to-centre spacing of 105 mm allows for secure installation using attachment bolts of 14 mm diameter, with a recommended tightening torque of 16.5 N·m for optimum stability.

Maintenance is straightforward with the DN 6.5 mm grease fitting, compatible with standard lubrication systems, promoting longevity through regular lubrication and seal inspections.

Manufactured in Italy, this flange bearing unit meets high standards of quality and durability. It is optimal for applications requiring high dynamic load capabilities up to 33.2 kN and static load rating of 21.6 kN, making it suitable for demanding industrial environments.

Designed for 4-hole ball bearing installation enabling easy and secure mounting. Constructed of cast iron for enhanced strength and wear resistance. Equipped with an eccentric locking collar for reliable shaft locking. Maximum limiting speed of 4300 RPM for high-speed operations.

Standard seals with extra flingers provide effective contaminant exclusion. Compact dimensions optimize space within machinery setups. Ideal for use in material handling, conveyor systems, automated machinery, and electric motors.

Includes a DN 6.5 mm grease fitting compatible with typical lubrication systems. Recommended tightening torque for set screw is 16.5 N·m using 14 mm diameter attachment bolts. Originates from Italy, ensuring high manufacturing quality.
