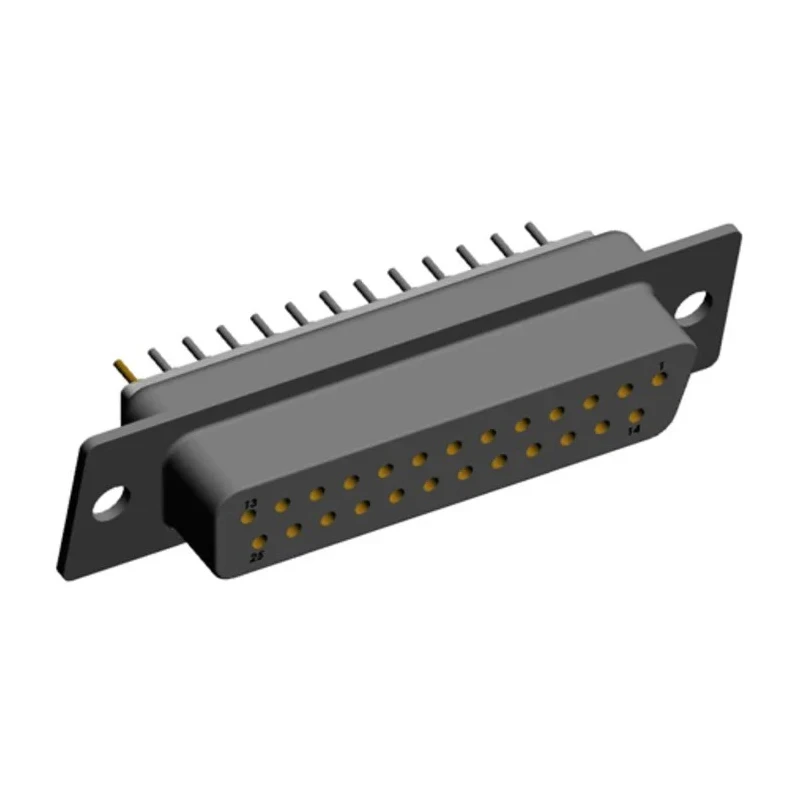

Norcomp 25 Way Straight Through Hole D-Sub Connector Female 2.769 mm Pitch 500V 5A 772-E25-213R001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Straight |
| Current | 5A |
| Model | 772-E25-213R001 |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | 772 |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- Constructed with a steel housing for durability and shielding.
- Features gold-plated brass contacts for reliable electrical connection.
- Designed for through hole mounting with solder termination type.
- Operating temperature range from -50°C to 100°C.
- Provides IEC-529-IP67 sealing for outdoor and harsh environment protection.
- Connector orientation is straight, and connector gender is female.
- Ideal for applications in industrial, medical, and data logging equipment.
- Maintains standard D-sub physical size for easy enclosure integration.
Product Description
Norcomp 772-E25-213R001 25 Way Straight Through Hole D-Sub Connector Female is engineered for reliable connectivity with a pitch of 2.769 mm and rated for 5 amps at 500 volts. The connector features a robust steel housing coated with nickel plating to enhance shielding and electrical grounding, complemented by gold-plated brass contacts that provide superior conductivity and corrosion resistance.
With solder termination and through hole mount type, it ensures secure PCB attachment. Its temperature operating range from -50°C to 100°C suits diverse industrial and commercial environments. The connector maintains the standard D-sub profile and footprint, facilitating upgrades to IP67 sealed environments without redesign challenges.
This SEAL-D series connector meets IEC-529-IP67 sealing standards, making it ideal for outdoor exposure and temporary washdown scenarios. Typical applications include hand held computers, scanners, remote sensors, data loggers, industrial and medical devices, transmitters, and marine electronics.
Steel housing provides improved shielding and mechanical integrity. Gold-plated brass contacts ensure durability and high quality signal transmission. Through hole mounting and solder termination guarantee robust PCB connection.
Operates reliably within -50°C to 100°C temperature range. IP67 sealing enables use in harsh and wet environments. Standard D-sub size simplifies enclosure design and replacement upgrades. Designed for female connector gender with straight orientation.
Trusted use in industrial, medical, and commercial electrical systems.
Package includes Norcomp 772 series SEAL-D 25 way straight D-Sub connector with high reliability screw machined contacts and nickel plated steel shell. Originating from the United States, this connector is produced to exacting standards to ensure quality and longevity.
Explore more high-quality D-Sub Connectors and power connectivity solutions in electronics and electrical categories at EnvMart.
