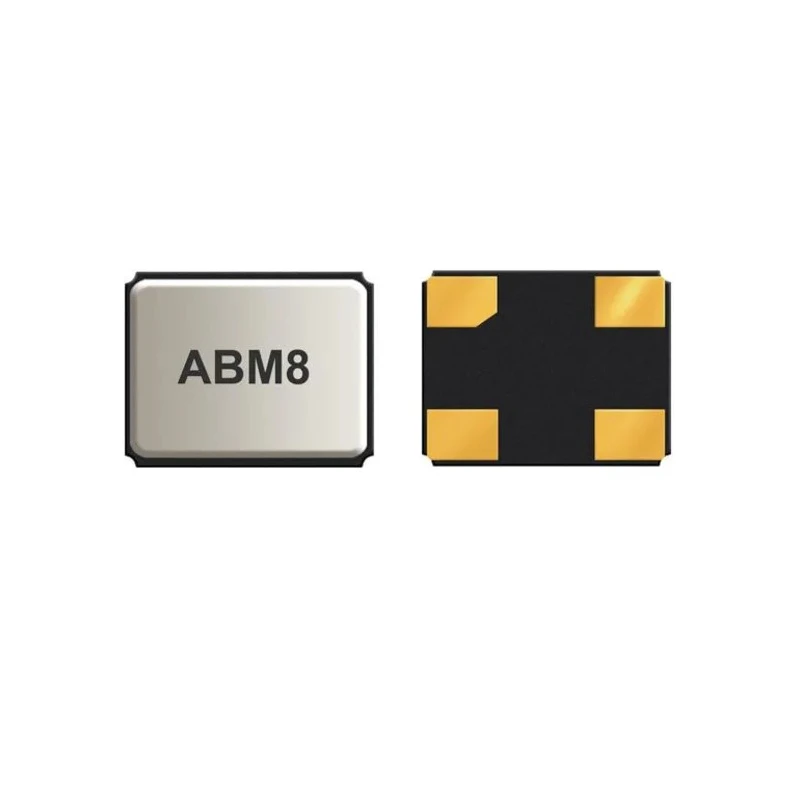

Abracon 32 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.8 mm Height 3.2 mm Length 2.5 mm Width ABM8-32.000MHZ-B2-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8-32.000MHZ-B2-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 32MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
Key Features
- Seam sealed package ensures high reliability and stability.
- Standard frequency of 32 MHz with ±50 ppm frequency tolerance.
- Compact dimensions with 3.2 mm length, 2.5 mm width, and 0.8 mm height.
- Load capacitance is 18 pF optimized for precise oscillation frequency.
- Operates within a temperature range of -10°C to 60°C for versatile environmental use.
- Series resistance rated at 40 Ω for stable electronic performance.
- Package type is surface mount with tape and reel packaging for efficient assembly.
- Designed for modems, communication equipment, PMCIA, and wireless applications.
Product Description
Abracon ABM8-32.000MHZ-B2-T is a 32 MHz surface mount crystal component designed for reliable frequency generation in electronic circuits. This 4-pin ceramic SMD crystal features a seam sealed package that provides high reliability, making it ideal for use in dense electronic assemblies such as modems, communication devices, PMCIA modules, and wireless systems.
The crystal offers a standard operating frequency of 32 MHz with a tight frequency tolerance and stability of ±50 ppm. Its load capacitance is specified at 18 pF to ensure precise oscillation performance. The compact package dimensions are 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height, which facilitates high-density PCB layouts.
Operating temperature ranges from -10°C to 60°C, allowing the component to perform reliably under typical industrial and commercial conditions. The crystal has a series resistance of 40 Ω, contributing to stable electronic characteristics in oscillators and frequency control circuits.
Packaged on tape and reel, the Abracon ABM8 series crystals support efficient automated assembly processes. This product complies with RoHS restrictions, aligning with environmental regulations and sustainability practices.
The Abracon ABM8-32.000MHZ-B2-T crystal unit is especially well-suited for industrial electronics, telecommunications equipment, and consumer devices where precision frequency reference and compact form factor are essential.
Seam sealed ceramic SMD construction for enhanced reliability. Surface mount packaging on tape and reel supports automated PCB assembly. High frequency accuracy with ±50 ppm tolerance and stability. Wide application scope including modems, communication equipment, and wireless technology.
Compact dimensions suitable for high-density electronic designs. Compliant with RoHS environmental standards. Durable performance across a broad temperature range. Optimized load capacitance for stable oscillation. Explore more electronics components and precision Crystal Units at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 32 MHz.
The load capacitance is specified at 18 pF, which is optimized for precise oscillation performance.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.
It operates within a temperature range of -10°C to 60°C.
The series resistance is rated at 40 Ω, contributing to stable electronic performance.
It is packaged on tape and reel, which supports efficient automated assembly processes.
Yes, it complies with RoHS environmental standards.
This crystal unit has a pin count of 4.
It is designed for use in modems, communication equipment, PMCIA modules, and wireless applications.
This model uses a surface mount type.
The seam sealed package ensures high reliability and stability, making it suitable for dense electronic assemblies.
This crystal belongs to the ABM8 series.
