| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C62-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 62V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 450Ω |
| Typical Voltage Temperature Coefficient | 58.8mV/K |
The Nexperia BZX884S-C62-QYL is a general purpose Zener diode designed for voltage regulation and overvoltage protection in electronic circuits. It features a nominal Zener voltage of 62 V with a tight voltage tolerance of ±2%, enabling stable voltage referencing and clamping.

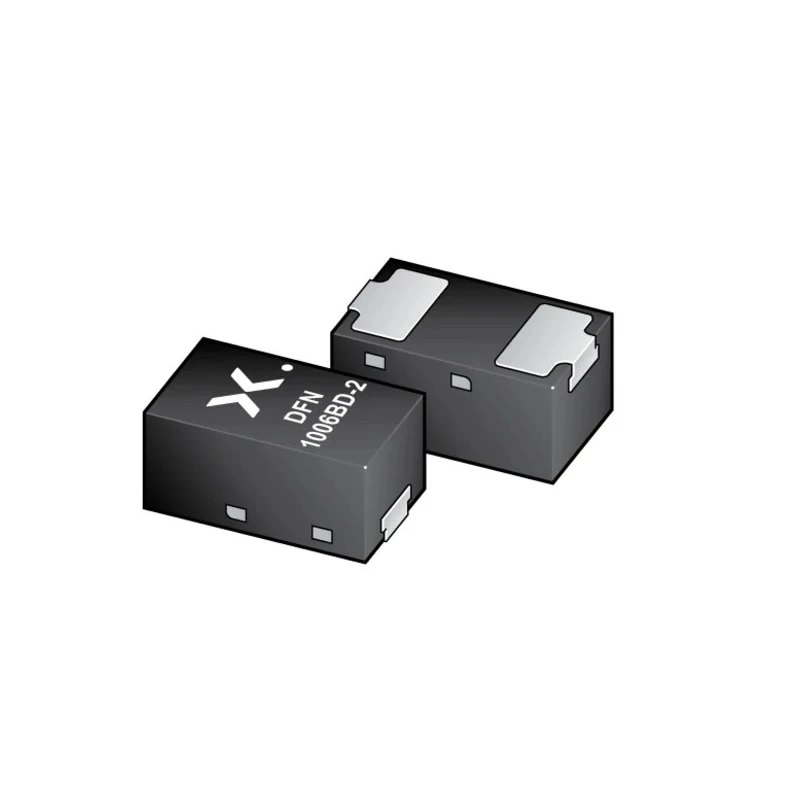

Housed in a compact DFN1006BD-2 leadless surface mount package, this diode measures 1 mm in length and 0.47 mm in height, making it suitable for high-density PCB layouts and space-constrained applications.
Its maximum power dissipation of 365 mW supports reliable operation in low to moderate power circuits. The diode includes a single element configuration, is tested at a 5 mA current, and offers low leakage current of 50 nA, ensuring minimal energy loss during operation.
Designed and qualified according to the AEC-Q101 automotive standard, the diode is ideal for use in automotive and industrial electronics requiring robustness over a wide temperature range from -55°C up to 150°C.
Additional features include a maximum Zener impedance of 450 Ω and RoHS compliance, emphasizing environmentally responsible manufacturing standards suitable for modern electronic components.
This diode provides stable voltage regulation in electronic applications. Compact leadless surface mount package ensures space efficiency on PCBs. Wide operating temperature range supports automotive and industrial use. Low leakage and test current ratings enhance energy efficiency.
AEC-Q101 qualification assures reliability in harsh environments. RoHS compliance ensures adherence to environmental regulations.
This Zener diode is commonly used in voltage stabilizing circuits, surge protectors, and reference voltage sources within electronic devices across automotive, industrial, and consumer sectors.
