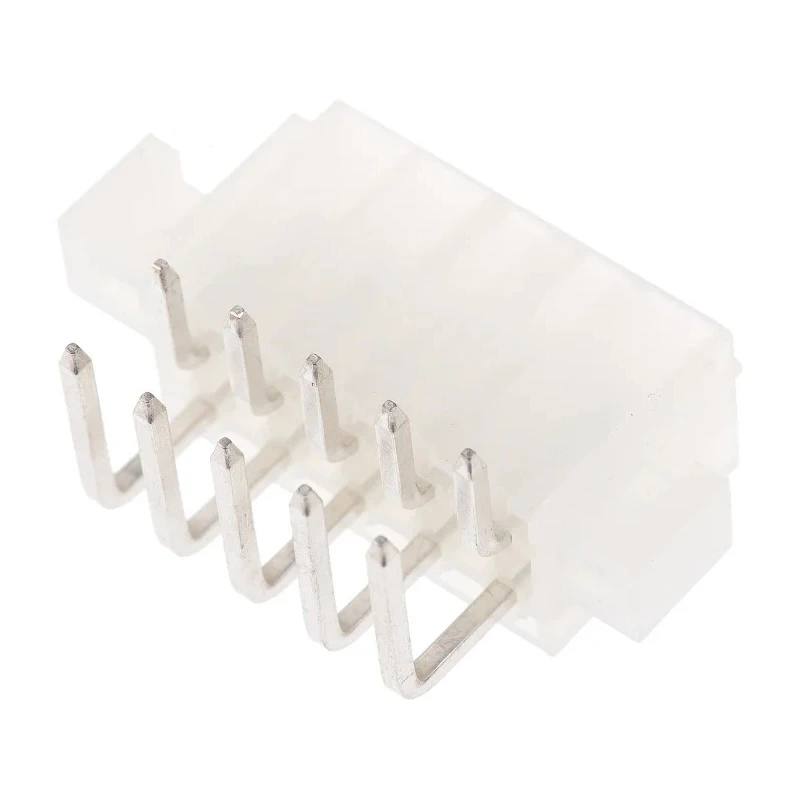

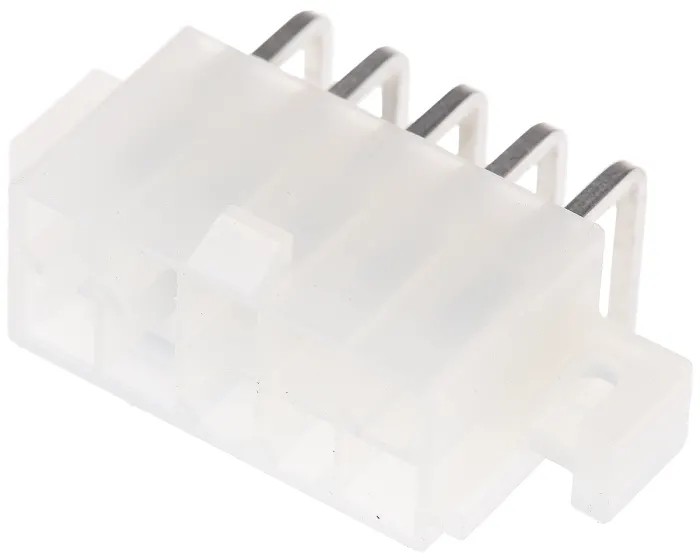

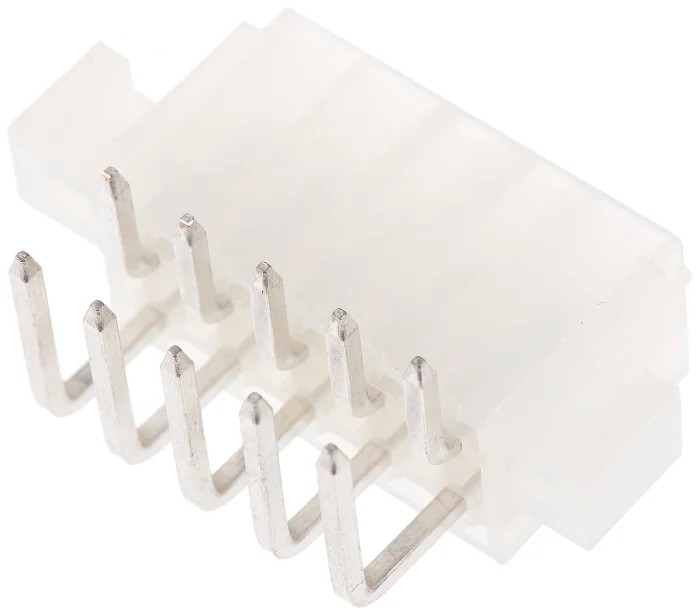

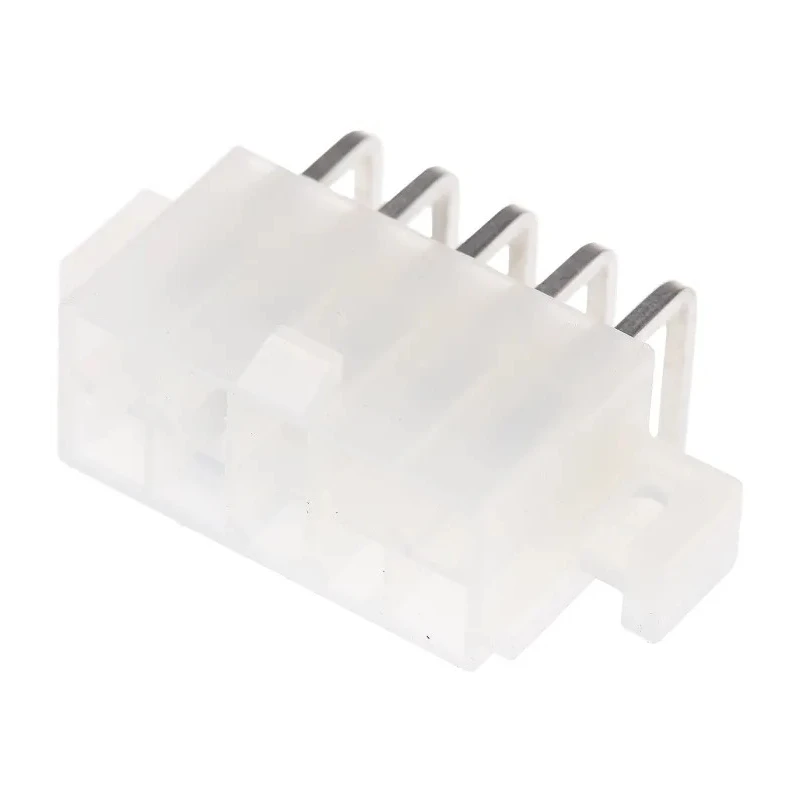

TE Connectivity Mini-Fit Jr Series Right Angle Through Hole PCB Header 10 Contact 4.2 mm Pitch 2 Row Shrouded 39-29-1108
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Supports up to 7A current per circuit ensuring high-power performance.
- Features a 4.2 mm pitch and 2-row configuration for compact, dense mounting.
- Constructed with nylon housing and brass male contacts plated in tin.
- Right angle orientation and shrouded design provide secure and protected connections.
- Through-hole mount type designed for durable, soldered PCB attachment.
- Operates reliably in a wide temperature range from -40°C to 105°C.
- Incorporates scoop-proof housings, polarization, and keying to prevent damage and misalignment.
- Includes a positive locking mechanism with audible click for mating confirmation.
Product Description
Molex 39-29-1108 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a compact and durable connector designed for high current applications up to 7A per circuit. This 10-contact, 2-row header features a 4.2 mm pitch and shrouded design, which provide excellent protection against debris, arcing, and mechanical mishandling.
The nylon housing and brass contacts plated with tin ensure reliable electrical connections and robust mechanical strength. Right angle orientation facilitates PCB mounting in space-constrained assemblies.
These PCB headers incorporate scoop-proof housings to prevent pin damage during severe angle mating, polarization and keying for misalignment prevention, and a positive locking mechanism with an audible click to confirm secure mating. The through-hole solder termination assures permanent and stable PCB attachment.
They are rated for operation across -40°C to 105°C and support a maximum voltage of 600V, making them suitable for diverse environments and applications.
Typical uses include consumer white goods, industrial automation, office equipment, servers, routers, and industrial networking devices requiring reliable wire-to-board power interconnection.
Supports up to 7A current per circuit ensuring high-power performance. Features a 4.2 mm pitch and 2-row configuration for compact, dense mounting. Constructed with nylon housing and brass male contacts plated in tin. Right angle orientation and shrouded design provide secure and protected connections.
Through-hole mount type designed for durable, soldered PCB attachment. Operates reliably in a wide temperature range from -40°C to 105°C. Incorporates scoop-proof housings, polarization, and keying to prevent damage and misalignment.
Includes a positive locking mechanism with audible click for mating confirmation. Ideal for consumer electronics, industrial automation, office equipment, and networking devices. Explore the extensive range of Molex Mini-Fit Junior connectors and other high-quality PCB Headers and connectors at EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 7A per circuit, ensuring high-power performance.
It is rated for a maximum voltage of 600V, making it suitable for various applications.
The housing is made of nylon, and the male contacts are brass plated with tin, ensuring reliable electrical connections.
It features a 4.2 mm pitch and a 2-row configuration, allowing for compact and dense mounting.
The right angle orientation facilitates PCB mounting in space-constrained assemblies, optimizing layout efficiency.
This header uses a solder termination type, ensuring a permanent and stable attachment to the PCB.
It operates reliably within a temperature range from -40°C to 105°C, suitable for diverse environments.
It incorporates polarization and keying features to prevent misalignment, along with scoop-proof housings to protect pins.
Typical uses include consumer white goods, industrial automation, office equipment, servers, routers, and industrial networking devices.
Yes, it includes a positive locking mechanism with an audible click to confirm secure mating, enhancing connection reliability.
The country of origin for this PCB header is India.
This header has 10 male contacts, designed for wire-to-board connections.
