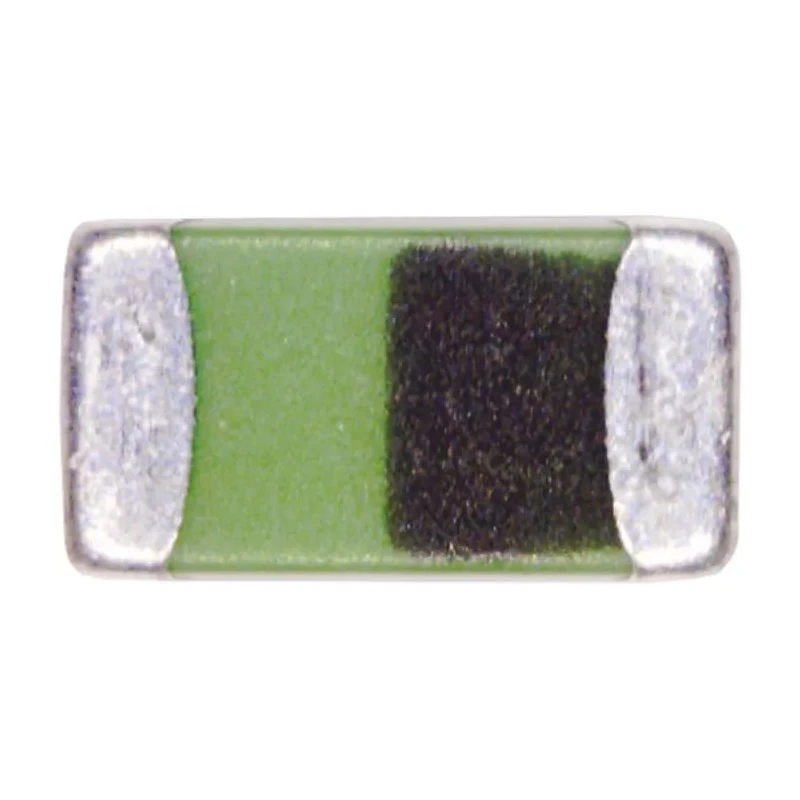

Murata Wirewound Surface Mount Inductor 0603 3.3 nH ±0.3 nH 500 mA Idc Q:12 LQG18H

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor 0603 3.3 nH ±0.3 nH 500 mA Idc Q:12 LQG18H

Name: Murata Wirewound Surface Mount Inductor 0603 3.3 nH ±0.3 nH 500 mA Idc Q:12 LQG18H
Brand: Murata
SKU: 128659
Price: 0.06 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	0.8mm
Length	1.6mm
Model	LQG18H
Depth	0.8mm
Packaging	Paper Tape
Series	LQG18H
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Interfaces	LAN networks, etc
Inductance	3.3nH
Package/Case	0603
Maximum DC Current	500mA
Pin Count	2
Maximum DC Resistance	150mΩ
Inductance Tolerance	±0.3 nH
Termination Style	Solder
Maximum Self Resonant Frequency	6GHz
Minimum Quality Factor	12
Inductor Construction	Wirewound

Key Features

Compact 0603 size suitable for dense PCB layouts.
Maximum DC current of 500 mA with high reliability.
Quality factor (Q) minimum of 12 ensures efficient performance.
Maximum DC resistance capped at 150 mΩ for low power loss.
Operates between -40°C and 85°C for versatile environments.
Moulded wirewound construction enhances durability and stability.
No shielding, suitable for applications where external magnetic interference is less critical.
Maximum self-resonant frequency of 6 GHz supports high-frequency circuits.

Product Description

Murata LQG18H wirewound surface mount inductor in 0603 package features a precise inductance value of 3.3 nH with a tolerance of ±0.3 nH, making it ideal for high frequency circuit designs.

This inductor supports a maximum DC current of 500 mA and maintains low DC resistance of 150 mΩ, ensuring energy efficiency and minimal heat generation.

It operates reliably within a temperature range from -40°C to 85°C, making it suitable for various industrial and commercial electronic applications including mobile telephony, Bluetooth devices, and W-LAN networks.

The moulded wirewound construction provides enhanced mechanical stability and consistent electrical characteristics. Its solder termination style ensures robust electrical connection compatible with automated SMT assembly lines.

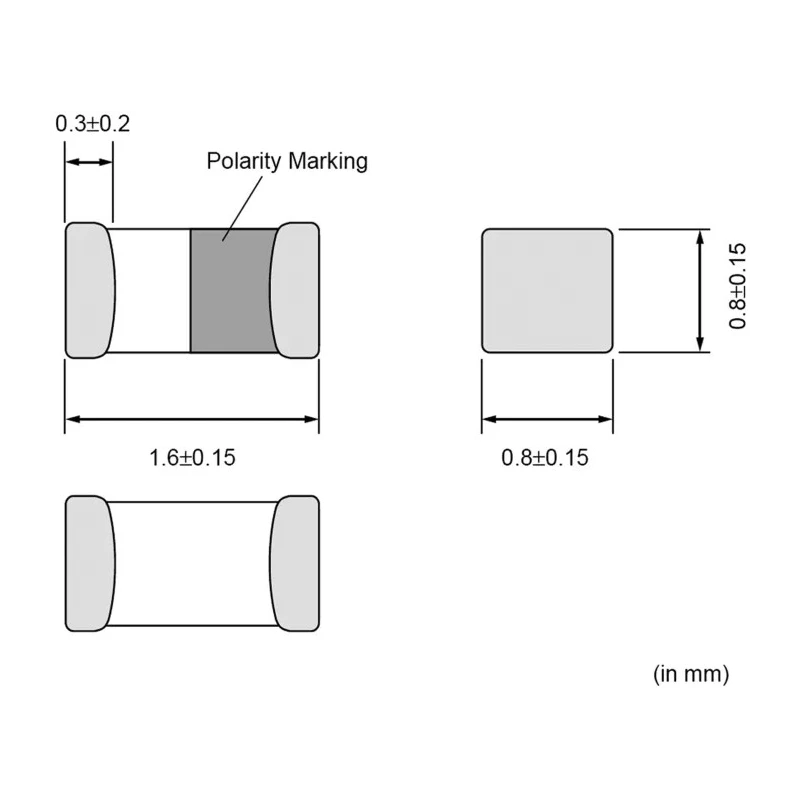

The 0603 package size (1.6 mm length x 0.8 mm height x 0.8 mm depth) allows integration into compact PCB layouts for space-constrained applications. This product is packaged in paper tape facilitating high speed pick and place operations in manufacturing.

Compact 0603 size suitable for dense PCB layouts. Maximum DC current of 500 mA with high reliability. Quality factor minimum of 12 ensures efficient performance. Maximum DC resistance capped at 150 mΩ for low power loss.

Operates between -40°C and 85°C. Moulded wirewound construction enhances durability and stability. No shielding, suitable for low interference environments. Maximum self-resonant frequency of 6 GHz for high frequency applications.

Solder termination style suitable for SMT assembly. Paper tape packaging for automated placement. Made in Japan ensuring quality manufacturing standards.

This inductor is suitable for use in industrial electronics, telecommunications, wireless communication devices, and sophisticated electronic circuit manufacturing requiring precision and stability at high frequencies.
