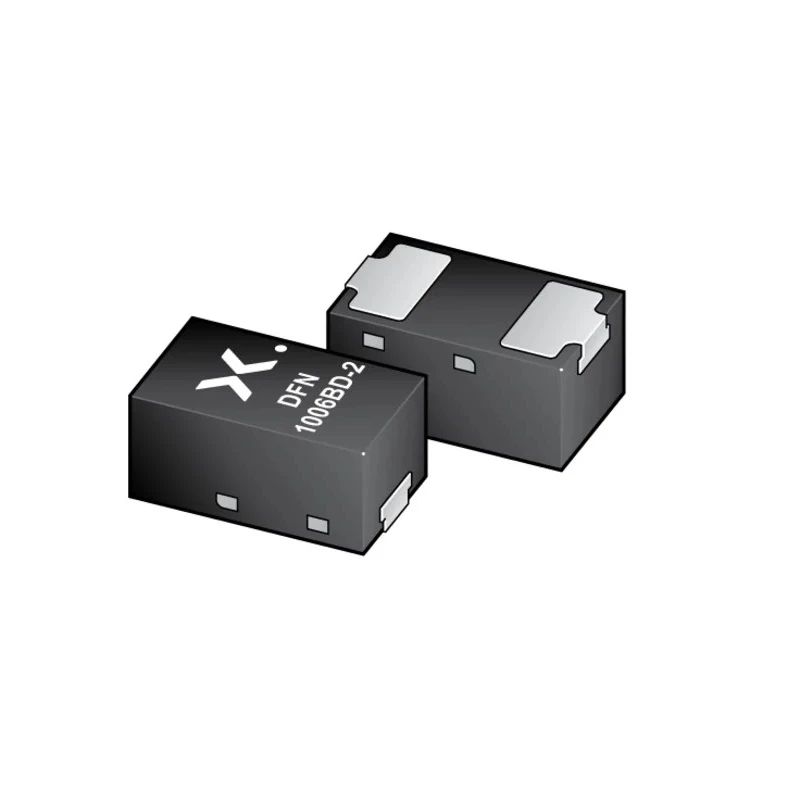

Nexperia General Purpose 8.2 V Zener Diode, Single 365 mW Surface Mount 2-Pin DFN1006BD-2 BZX884S-B8V2-QYL

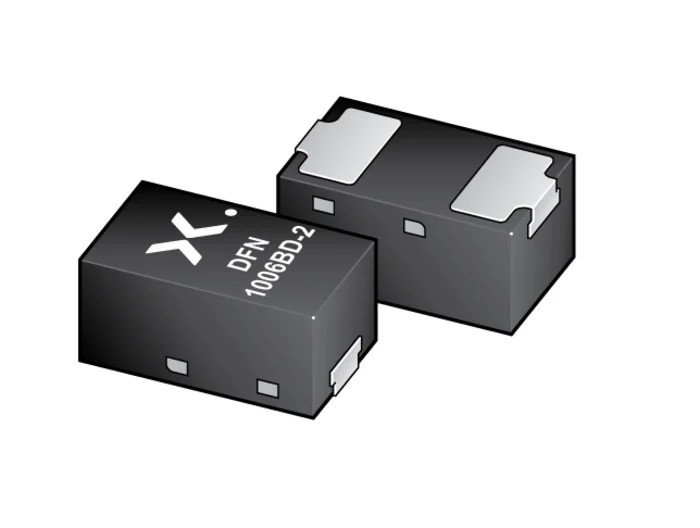

Nexperia BZX884S-B8V2-QYL is a general purpose 8.2 V Zener diode suited for surface mounting applications within various electronic and automotive systems. It features a compact 2-pin DFN1006BD-2 leadless surface mount package with side-wettable flanks for reliable PCB assembly and soldering. The diode supports a maximum power dissipation of 365 mW and is designed to provide precise voltage regulation with ±2% tolerance.

This diode has a nominal Zener voltage of 8.2 V with a test current of 5 mA and a maximum Zener impedance of 80 Ω, which ensures effective voltage stabilization in the circuit. Operating temperature range is wide, from -55°C up to 150°C, making it suitable for harsh operating environments found in automotive and industrial applications. It’s qualified under the AEC-Q101 automotive standard, ensuring high reliability for use in automotive electronic control units and other power management applications.

Its compact form factor includes a length of 1 mm and a height of 0.47 mm, enabling high-density PCB layouts without compromising electrical performance. The maximum reverse leakage current of 700 nA minimizes power loss during operation. The device’s typical voltage temperature coefficient of 4.5 mV/K ensures temperature stability, which is critical for sensitive electronic equipment.

Key benefits include low leakage current, high operating temperature range, automotive-grade qualification, and easy surface-mount assembly. Typical uses involve voltage regulation, protection circuits, and power supply stabilization within industrial electronic assemblies and automotive subsystems.

The diode has a power dissipation rating of 365 mW. It features a ±2% Zener voltage tolerance and a test current of 5 mA. Maximum Zener impedance is 80 Ω ensuring stable voltage regulation. Operating temperature range extends from -55°C to 150°C.

Meets RoHS and AEC-Q101 automotive quality standards. Compact 2-pin DFN1006BD-2 leadless surface mount package. Maximum reverse leakage current of 700 nA reduces power loss significantly. Typical voltage temperature coefficient of 4.5 mV/K improves temperature stability.

Ideal for automotive electronics and precise voltage regulation applications. Single element chip simplifies circuit design and assembly. Explore a wide range of semiconductor components and electronic parts in the EnvMart catalog for your industrial, automotive, or electronics manufacturing requirements.
