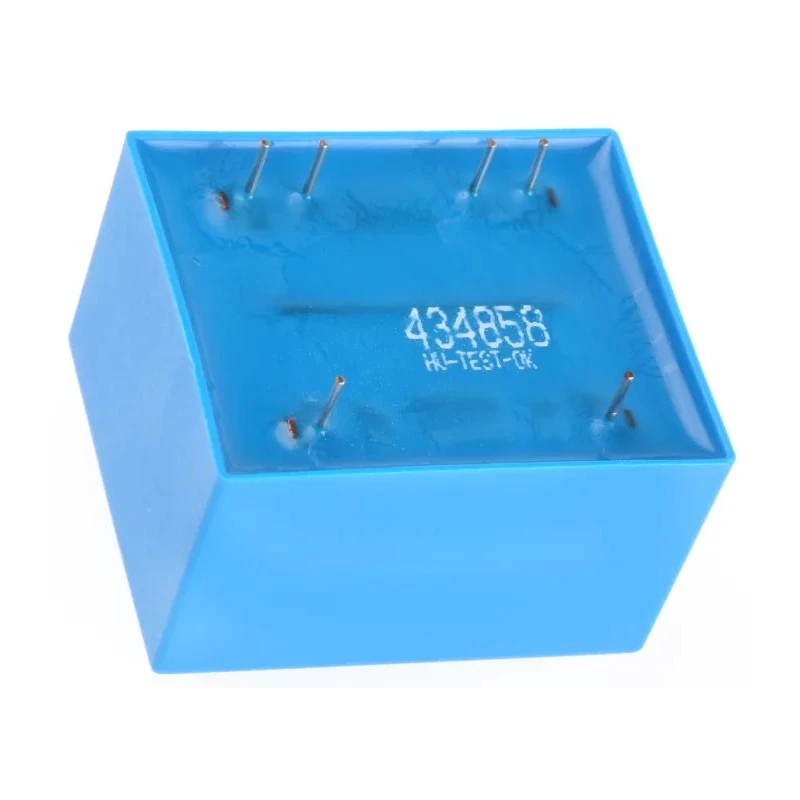

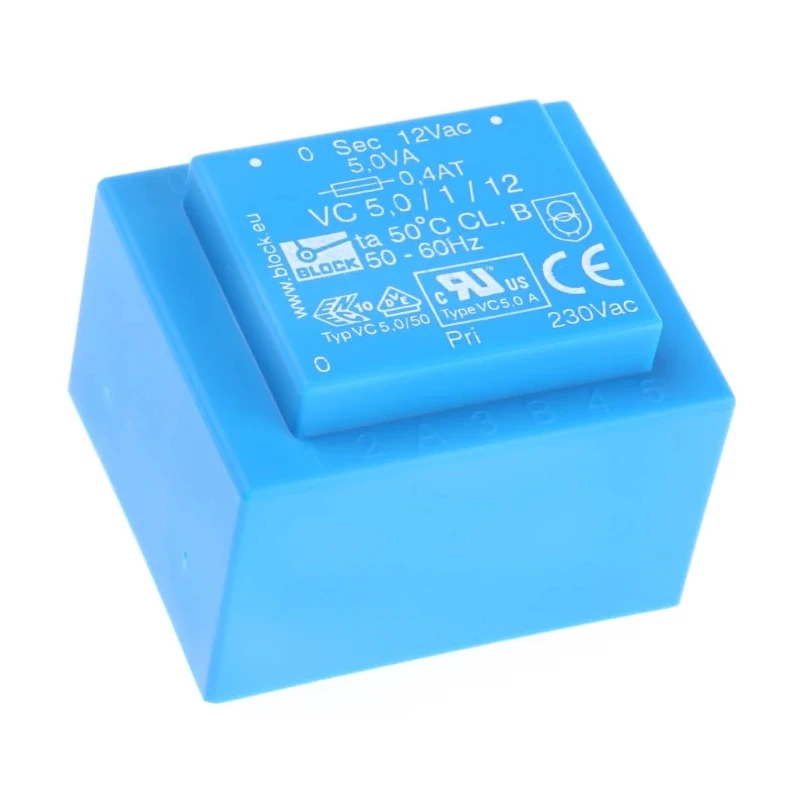

Block PCB Transformer 12 V ac 1 Output Pin, 5 VA, 230 V ac Primary, ENEC 10 (VDE) VC 5,0/1/12
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Block |
| Efficiency | 68% |
| Length | 44mm |
| Model | VC 5,0/1/12 |
| Depth | 33mm |
| Gross Weight | 190g |
| Width | 37mm |
| Mount Type | Pin |
| Series | VC 5.0/1/12 |
| Maximum Operating Temperature | 50°C |
| Number of outputs | 1 |
| Standards/Approvals | ENEC 10 (VDE), C-UL-US |
| Isolation Voltage | 5000V |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 12 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Myrra 1 Output SMPS Transformer 5 W Output, 370 V dc, 265 V ac, 12 V dcBrand | Myrra |
Key Features
- This transformer is vacuum resin moulded to UL94-V0 rating for enhanced safety.
- It operates with an efficiency of 68% and withstands isolation voltage up to 5000 V.
- Maximum operating temperature is 50°C, suitable for a range of applications.
- Designed to operate within frequency range of 50 Hz to 60 Hz.
- Mount type is pin, ensuring secure PCB installation.
- Approved under ENEC 10 (VDE) and C-UL-US standards.
- Its compact dimensions measure 44 mm length, 37 mm width, and 33 mm depth.
Product Description
Block VC 5,0/1/12 PCB Transformer is engineered for electronic applications requiring reliable power conversion with a 12 V ac output and single output pin configuration. This transformer supports a primary voltage of 230 V ac and power rating of 5 VA, making it suitable for various power supply designs.
The vacuum resin moulded construction ensures compliance with UL94-V0 safety standard, providing flame retardant properties and long-term durability. It features low inter-winding capacitance and low radiated noise, crucial for sensitive electronic applications.
With an isolation voltage capacity of 5000 V, it provides excellent safety margins in electrical isolation between primary and secondary sides. Its operating temperature range up to 50°C and efficiency of 68% allow for dependable performance in diverse industrial, laboratory, and commercial uses.
The mount type uses pins for secure PCB attachment, ensuring stable mechanical and electrical connection. Vacuum resin moulded to UL94-V0 rating for enhanced fire safety. Low inter-winding capacitance and radiated noise for improved signal integrity.
Single output pin design with 12 V ac secondary voltage. Primary voltage of 230 V ac supporting standard mains supply. Operating frequency range from 50 to 60 Hz. Isolation voltage rated 5000 V for health and safety compliance.
Certified with ENEC 10 (VDE) and C-UL-US approvals. Compact size with dimensions of 44x37x33 mm and weight of 190 g. This transformer is ideal for integration in electronic power supplies and industrial equipment requiring efficient and safe voltage transformation.
Applications include industrial machines, laboratory instruments, commercial electronics, and automotive electrical systems. Originating from Germany, this product stands as a high-quality PCB Transformer option within the Block VC 5.0/1 series.
Explore more transformers and electronic components by Block and browse the Electronics & Electricals catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V ac.
This model provides a secondary output voltage of 12 V ac.
The maximum operating temperature for this transformer is 50°C.
It operates with an efficiency of 68%.
The dimensions of this transformer are 44 mm in length, 37 mm in width, and 33 mm in depth.
The isolation voltage rating for this transformer is 5000 V.
It is certified under ENEC 10 (VDE) and C-UL-US standards.
This transformer uses a pin mount type for secure PCB installation.
It operates within a frequency range of 50 Hz to 60 Hz.
The weight of this transformer is 190 g.
This transformer is manufactured in Germany.
It is suitable for applications in industrial machines, laboratory instruments, commercial electronics, and automotive electrical systems.
