| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BC807-40QC-QZ |
| Mount Type | Surface |
| Series | BC807QB-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -45V |
| Minimum DC Current Gain hFE | 250 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -5V |
| Maximum Collector Base Voltage VCBO | -50V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | PNP |

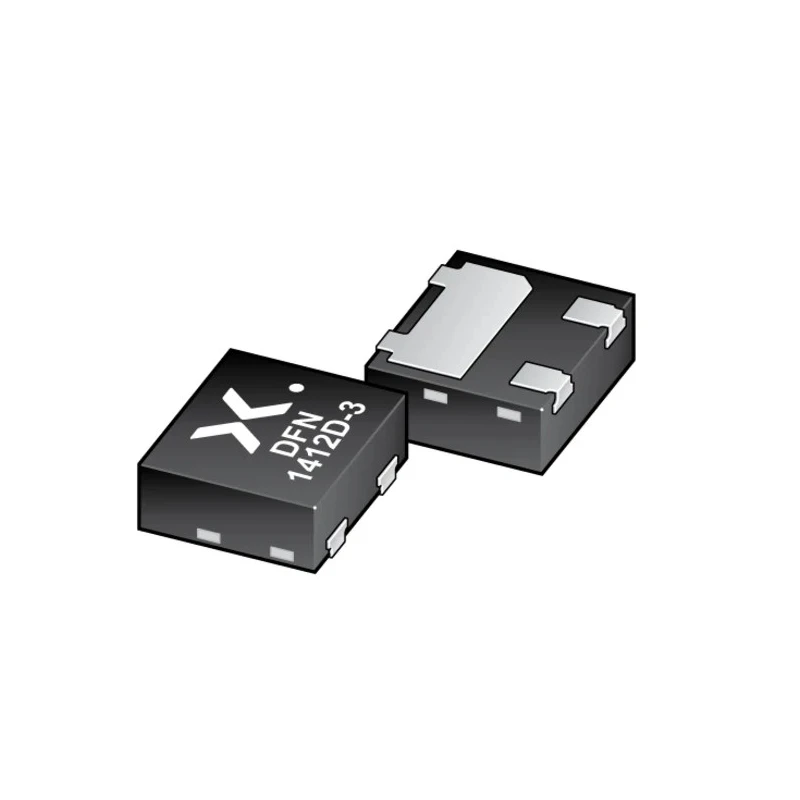

The Nexperia BC807-40QC-QZ is a bipolar PNP transistor engineered for applications requiring moderate current and voltage capabilities in a space-efficient surface mount package. It is housed in an ultra-small DFN1412D-3 (SOT8009) leadless plastic package with side-wettable flanks, enabling superior solder joint inspection and reliable assembly.
This transistor offers a maximum collector current of 500 mA and maximum collector-emitter voltage of 45 V, with a high minimum current gain of 250, making it well suited for amplification and switching roles in industrial, automotive, and consumer electronics.
The device supports automatic optical inspection (AOI) to enhance quality control during production. It operates reliably in temperatures ranging from -55°C to 150°C, conforming to the demands of industrial-grade deployments.
Certified to AEC-Q101 automotive standards, the BC807-40QC-QZ transistor assures robustness and reliability in automotive electronic circuits. Its small footprint and low profile aid in board space optimization. Multiple current gain options enable tailored performance in various circuit configurations.
Maximum DC collector current: 500 mA. Maximum collector-emitter voltage: 45 V. Package type: DFN1412D-3 surface mount. Minimum DC current gain (hFE): 250. Operating temperature range: -55°C to 150°C. Automotive standard compliance: AEC-Q101.
Low package height: 0.5 mm. Three available current gain selections.
This transistor is ideal for usage in industrial automation, automotive control systems, power management circuits, and general-purpose electronics requiring reliable transistor switching or amplification performance.
