Nexperia Bipolar Transistor PNP, Maximum DC Collector Current 500 mA, Maximum Collector Emitter Voltage 45 V BC807-16QB-QZ

Nexperia BC807-16QB-QZ Bipolar Transistor is a PNP transistor designed for surface mounting in compact, high-efficiency electronic circuits. It features a maximum DC collector current of 500 mA and a collector emitter voltage rating of 45 V, providing reliable performance in signal amplification and switching applications.

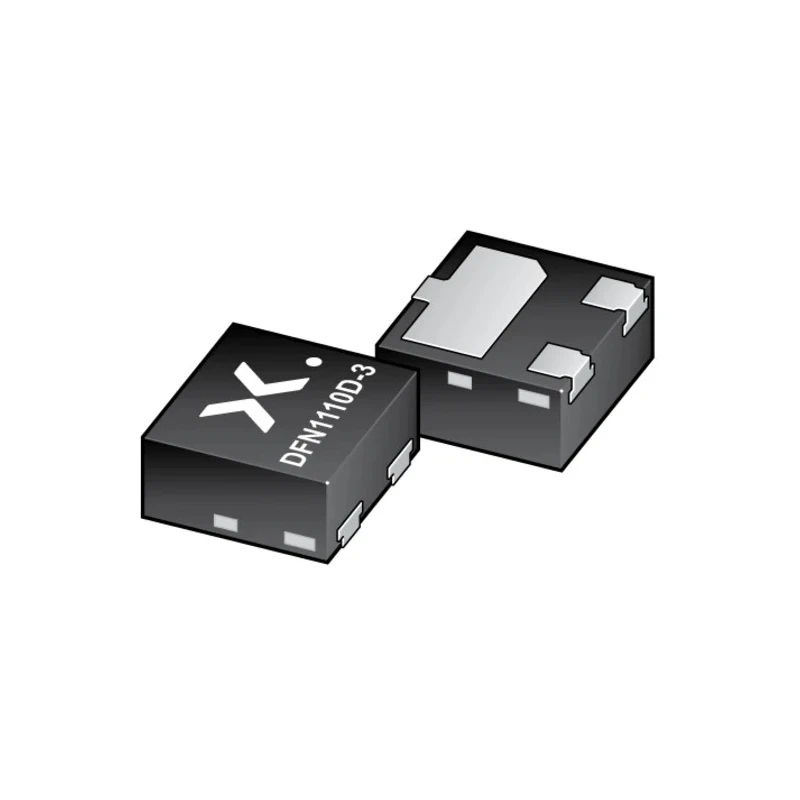

This transistor is supplied in an ultra-small DFN1110D-3 plastic package that supports side-wettable flanks, enabling robust solder joints and compatibility with automatic optical inspection systems. The device is rated to operate over a broad temperature range from -55°C to 150°C, making it suitable for automotive and industrial electronics demanding temperature resilience.

It boasts a minimum DC current gain of 100, ensuring effective amplification with low distortion. The device’s compact footprint (1.1 mm length, 1 mm width, 0.5 mm height) allows for space-saving PCB designs. Compliance with RoHS and AEC-Q101 automotive standards guarantees manufacturing quality and environmental compliance.

Typical applications include automotive electronic control units, power management circuits, and general-purpose signal amplification in industrial and consumer electronics. Key features:. High power dissipation capability and high current handling.

Three current gain selections providing design flexibility. Suitable for automatic optical inspection (AOI) for quality manufacturing control. Smaller footprint compared to conventional leaded SMD packages enables high-density PCB layouts.

Low package height of 0.5 mm for thin profile designs.

Set includes the single BC807-16QB-QZ Bipolar Transistor in surface mount DFN1110D-3 package. Suitable for designers and engineers requiring reliable, space-efficient PNP transistors with automotive-grade quality.
