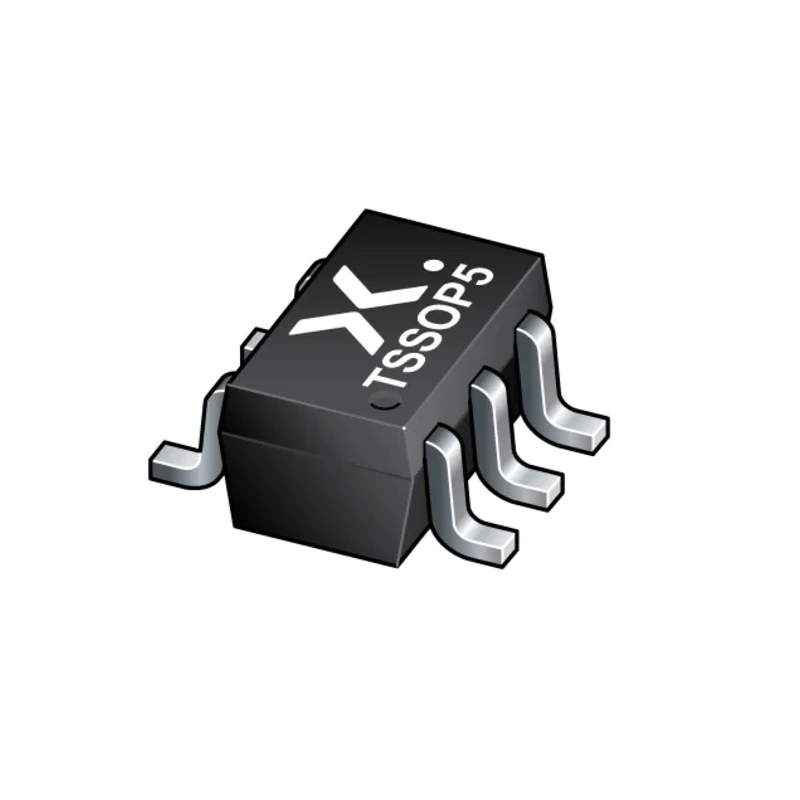

Nexperia 2-Input AND Schmitt Trigger Input Logic Gate, 5-Pin TSSOP-5 74AUP1T08GW-Q100H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.25mm |
| Model | 74AUP1T08GW-Q100H |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP-5 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | AUP |
| Logic Function | AND |
| Minimum Supply Voltage | 2.3V |
| Maximum High Level Output Current | -4mA |
| Maximum Propagation Delay Time @ CL | 4.8ns |
| Maximum Low Level Output Current | 4mA |
| Number of Inputs per Gate | 2 |
Key Features
- Operates at supply voltages from 2.3V to 3.6V ensuring versatility.
- Includes a Schmitt Trigger input for improved noise immunity.
- Features low static power consumption with ICC maximum 1.5 μA.
- Maximum propagation delay time of 4.8 nanoseconds allows fast switching.
- Designed to meet automotive standard AEC-Q100 requirements.
- Latch-up performance exceeds 100 mA based on JESD 78 Class II standards.
- Compact 5-Pin TSSOP package size of 2.25 mm by 1.1 mm for space-saving applications.
- Operating temperature range from -40°C to 125°C for broad industrial use cases.
Product Description
Nexperia 74AUP1T08GW-Q100H is a 2-input AND logic gate with Schmitt Trigger input housed in a 5-pin TSSOP-5 surface mount package. It supports low-voltage operation from 2.3 V to 3.6 V, enabling use in a wide range of electronic and automotive applications.
This device integrates a voltage-level translator with very low static and dynamic power consumption, achieving a maximum ICC of 1.5 μA. The Schmitt Trigger input enhances noise immunity, minimizing signal distortion in industrial environments.
Featuring a propagation delay time of only 4.8 nanoseconds, it facilitates fast switching performance. Adhering to the automotive AEC-Q100 standard, it is suitable for automotive-grade electronics demanding reliability over wide temperature ranges from -40°C to 125°C.
The package's compact dimensions (2.25 mm length and 1.1 mm height) allow efficient circuit board space utilization. The chip provides maximum output currents of -4 mA (high level) and 4 mA (low level), supporting typical logic interfacing needs.
Operates over a supply voltage range of 2.3 V to 3.6 V. Schmitt Trigger input for improved noise rejection. Low static power consumption (ICC 1.5 μA max). Fast switching with 4.8 ns maximum propagation delay. Meets automotive AEC-Q100 standard for reliability.
Latch-up performance exceeds 100 mA as per JESD 78 Class II. Compact 5-Pin TSSOP package size. Wide operating temperature: -40°C to 125°C. Maximum high level output current: -4 mA. Maximum low level output current: 4 mA.
This Logic Gate is ideal for industrial automation, automotive electronics, consumer devices, and any application requiring reliable, low-power logic functions with enhanced signal integrity. Its efficient power usage and robust design ensure long-term performance in harsh environments.
Explore the Electronics & Electricals category on EnvMart for a broad range of semiconductor logic components including this and related Nexperia ICs.
