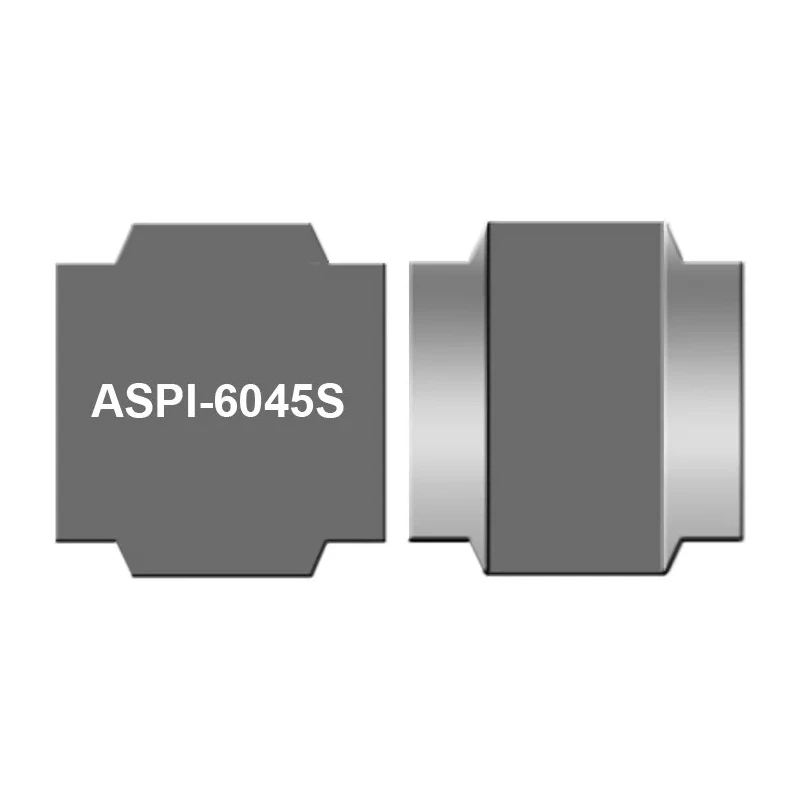

Abracon Shielded Surface Mount Inductor with Ferrite Core 22μH Flat Wire Winding ±20% 1.8A Max DC Current ASPI-6045S-220M-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.5mm |
| Length | 6mm |
| Model | ASPI-6045S-220M-T |
| Depth | 4.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-6045S |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 0.09Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Features a ferrite core that provides efficient magnetic shielding.
- Flat wire winding design offers high energy storage and low DC resistance.
- Supports a maximum DC current of 1.8 A suitable for power applications.
- Constructed for surface mount PCB assembly with tape and reel packaging.
- Operates within a temperature range of -40°C to 125°C ensuring reliability.
- Compact dimensions of 6 mm length and 4.5 mm height and depth enable use in space-constrained devices.
- Compliant with RoHS standards for environmental safety and sustainability.
- Ideal for DC/DC converter circuits, portable communication equipment, and consumer electronics.
Product Description
Abracon ASPI-6045S-220M-T is a shielded surface mount inductor designed with a ferrite core and flat wire winding construction, providing a nominal inductance of 22μH with a ±20% tolerance.
This inductor supports a maximum DC current of 1.8 A and features a low DC resistance of 0.09Ω, making it suitable for efficient power storage and delivery. Constructed with high-quality materials, including a ferrite core and molded surface mount termination, it offers excellent PCB bonding due to its large terminal surfaces.
The compact size of 6 mm in length and 4.5 mm in both height and depth allows integration into tight spaces in modern electronic devices.
The device is RoHS compliant, assuring adherence to environmental regulations, and is suitable for operating temperatures ranging from -40°C up to 125°C, ensuring durability and performance in varied environments.
This inductor is ideal for use in DC/DC converters, portable communication equipment, OA equipment, LCDs, modems, set-top boxes, and DVD players requiring effective magnetic shielding and energy storage.
Ferrite core construction provides effective shielding against electromagnetic interference. Flat wire winding enables high energy storage capability with low power loss. Surface mount termination allows easy automation in PCB assembly.
Tape and reel packaging supports efficient manufacturing processes. Wide operating temperature range ensures reliability in various industrial and consumer applications. Compact size supports high-density electronic circuit designs.
RoHS standard compliance for reduced environmental impact. Designed for high current handling in power electronics applications. Explore more components in Surface Mount Inductors category on EnvMart for diverse industrial and electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 22μH with a tolerance of ±20%.
It supports a maximum DC current of 1.8 A, making it suitable for power applications.
This unit has a length of 6 mm and a height and depth of 4.5 mm, allowing for use in space-constrained devices.
It operates within a temperature range of -40°C to 125°C, ensuring reliability in various environments.
The inductor is constructed with a ferrite core, which provides efficient magnetic shielding.
It is packaged in tape and reel format, which supports efficient automation in PCB assembly.
The maximum DC resistance is 0.09Ω, contributing to its efficiency in power storage and delivery.
Yes, it is RoHS compliant, ensuring adherence to environmental safety and sustainability regulations.
It features a surface mount termination style, which facilitates easy integration onto PCBs.
It is ideal for use in DC/DC converters, portable communication equipment, and consumer electronics.
It features a flat wire winding design, which offers high energy storage capability and low power loss.
This model is part of the ASPI-6045S series, which includes various surface mount inductors.
