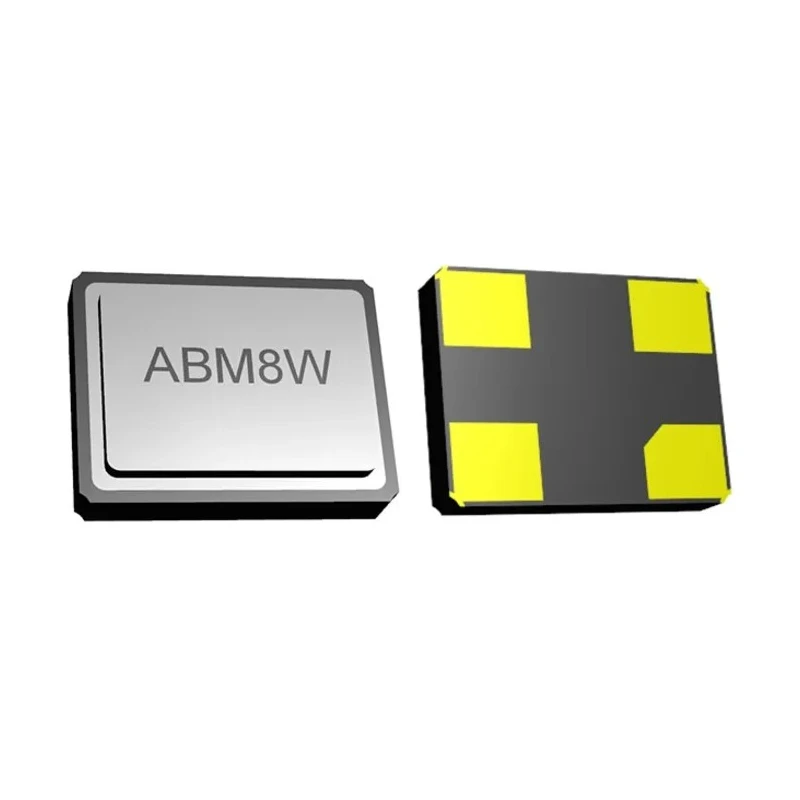

Abracon 32 MHz Crystal Unit Surface Mount 4-Pin 3.2 mm x 2.5 mm x 0.75 mm ±10 ppm ABM8W-32.0000MHZ-8-B1U-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | ABM8W-32.0000MHZ-8-B1U-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8W |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 32MHz |
| Load Capacitance | 4pF |
| Series Resistance | 40Ω |
Key Features
- Low profile surface mount design with a maximum height of 0.75 mm.
- Package dimensions are 3.2 mm length by 2.5 mm width.
- Operating temperature range from -40°C to 125°C ensures reliable performance.
- Load capacitance is 4 pF optimized for energy-saving applications.
- Series resistance of 40 ohms suited for precision frequency control.
- Lead-free construction compliant with RoHS and RoHS II standards.
- Seam sealed for long-term reliability in industrial applications.
- Ideal for IoT, wearables, Bluetooth Low Energy, and wireless module integrations.
Product Description
Abracon ABM8W-32.0000MHZ-8-B1U-T3 is a 32 MHz crystal unit designed with a surface mount 4-pin configuration, measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height. It features a frequency tolerance and stability of ±10 ppm, ensuring high precision suitable for demanding electronic applications.
This crystal unit supports load capacitance of 4 pF and has a series resistance of 40 ohms, delivering stable oscillation characteristics. Its operating temperature range from -40°C to 125°C allows for resilience in a wide variety of industrial, commercial, and IoT environments.
Manufactured with high-quality materials, the unit is seam sealed for enhanced long-term reliability and is lead-free in compliance with RoHS and RoHS II directives, making it environmentally safe for contemporary manufacturing requirements.
Due to its low profile and tape and reel packaging, this crystal unit is optimized for use in automated PCB assembly lines and suits applications including wearables, IoT devices, Bluetooth and BLE modules, wireless communication modules, and ultra-low power microcontroller units.
Low profile surface mount design with 0.75 mm height. Precise 32 MHz standard frequency with ±10 ppm stability. Supports 4 pF load capacitance for optimized energy savings. Durable construction with long-term reliability sealing.
Wide operating temperature range: -40°C to 125°C. Series resistance of 40 ohms for stable oscillation. Lead-free and RoHS compliant to meet industry standards. Tape & reel packaging suitable for mass production automation.
This Abracon crystal unit is widely used across electronics manufacturing industries, including IoT, wearables, wireless communication modules, and industrial instrumentation. Its compact size and precise frequency control provide reliable performance for critical timing applications.
Explore EnvMart's comprehensive electronics components selection for quality Crystal Units, oscillators, and related parts that meet stringent industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures 3.2 mm in length, 2.5 mm in width, and has a height of 0.75 mm.
It operates at a standard frequency of 32 MHz.
The load capacitance is 4 pF, optimized for energy-saving applications.
The series resistance is 40 ohms, which supports stable oscillation characteristics.
It has an operating temperature range from -40°C to 125°C, allowing for use in various environments.
It is packaged in tape and reel format, suitable for automated PCB assembly.
Yes, this unit is lead-free and compliant with RoHS and RoHS II standards.
This model features a 4-pin configuration.
It is ideal for use in IoT devices, wearables, Bluetooth Low Energy, and wireless communication modules.
This model is designed for surface mount installation.
The country of origin for this product is India.
It belongs to the ABM8W series.
