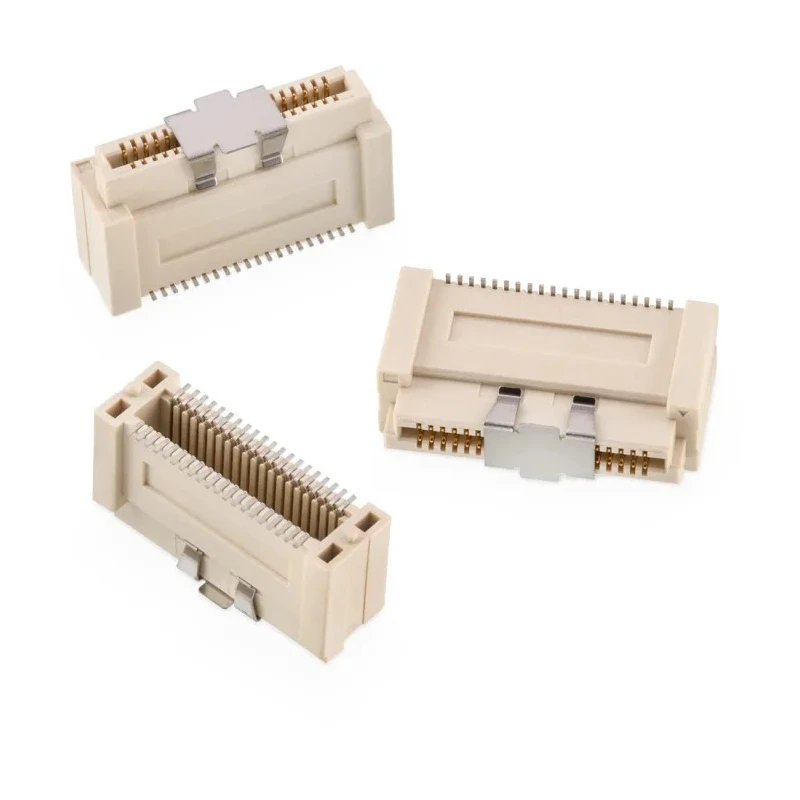

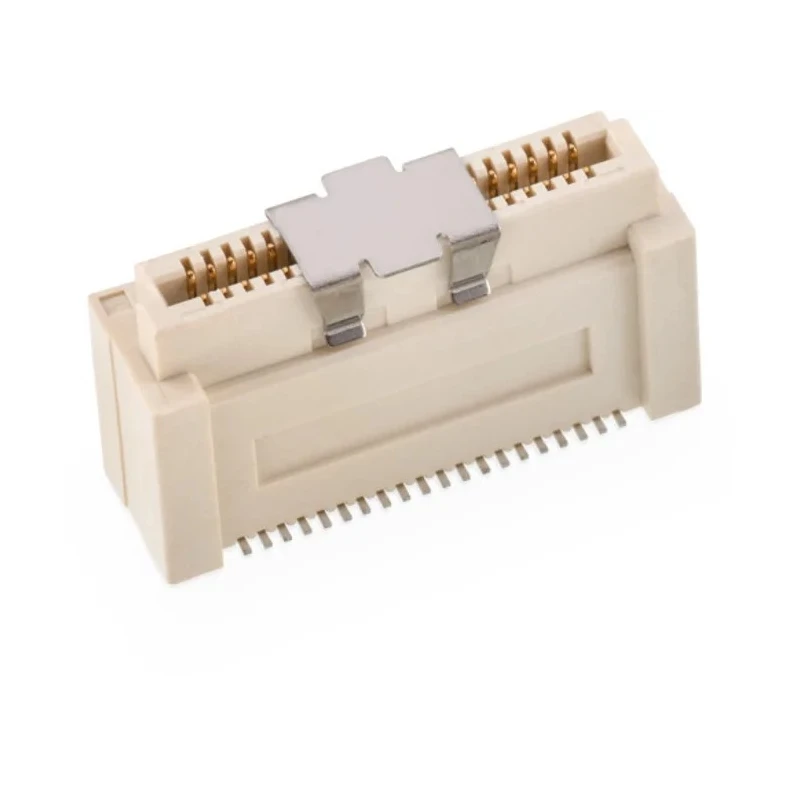

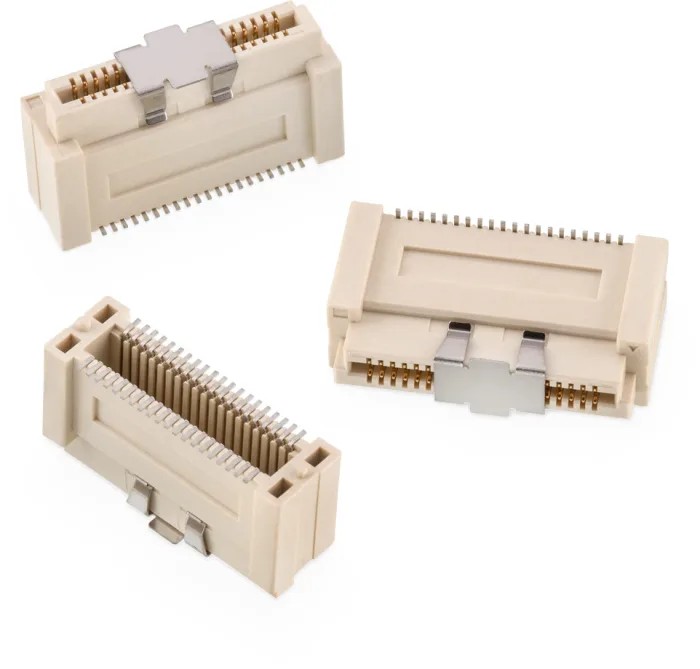

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 40-Contact, 1 Row, 0.8 mm Pitch Solder, Model 658801103040

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 40-Contact, 1 Row, 0.8 mm Pitch Solder, Model 658801103040

Name: Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket, 40-Contact, 1 Row, 0.8 mm Pitch Solder, Model 658801103040
Brand: Wurth Elektronik
SKU: 112370
Price: 5.17 USD
Availability: InStock



Category PCB Sockets Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	50V
Brand	Wurth Elektronik
Orientation	Vertical
Current	500mA
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	WR-BTB
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Female
Connector System	Board-to-Board
Withstanding Voltage	500 V (AC)
Insulator Material	LCP

Key Features

Features a single row with 40 female contacts for optimal connectivity.
Constructed using Liquid Crystal Polymer (LCP) housing for high durability and stability.
Operates at a voltage rating of 50 V and supports a current of 500 mA.
Contact material is copper alloy with gold plating for excellent signal integrity and corrosion resistance.
Supports operating temperatures from -55°C to 85°C, suitable for harsh industrial environments.
Designed for surface mount technology with vertical orientation to optimize PCB layout.
Ideal for electronic components requiring board-to-board connector systems.
Has a pitch of 0.8 mm and a withstanding voltage of 500 V AC to ensure safety and performance.

Product Description

Wurth Elektronik 658801103040 WR-BTB Series Vertical Surface PCB Socket is a high-quality electronic connector tailored for board-to-board connection tasks. This 40-contact, single-row socket features a 0.8 mm pitch, making it precise and reliable for compact circuit board designs.

The housing is fabricated from Liquid Crystal Polymer (LCP), renowned for high mechanical and thermal stability, enhancing the connector's durability in demanding industrial environments. The contacts use a copper alloy core plated with gold, ensuring optimal conductivity and resistance to corrosion over extended use.

With an operating temperature range from -55°C to 85°C, this PCB socket is suitable for applications requiring robustness against temperature extremes, including industrial, manufacturing, and electronic laboratory equipment. The socket supports a maximum current of 500 mA and a voltage of 50 V, aligning with common electrical standards for sensitive PCB components.

The vertical SMT mount type and single-row configuration simplify PCB assembly and layout, allowing efficient construction of electronic devices requiring secure and repeatable connections.

Single-row 40 female contacts enhance compactness and reliability. Liquid Crystal Polymer housing offers superior thermal resistance. Gold-plated copper alloy contacts maintain secure, corrosion-free signal paths. Wide operating temperature range supports diverse industrial applications.

Surface mount vertical orientation facilitates optimized PCB design. Supports board-to-board connector systems with 0.8 mm pin pitch. Designed and manufactured for environment durability and electrical safety.

This product is manufactured in China and is offered in new condition. It is ideal for electronics assembly in sectors such as industrial tooling, manufacturing line equipment, and electronic research labs. Browse more high-quality Wurth Elektronik components and connectors on EnvMart for reliable and efficient solutions.

Explore more products in our PCB Sockets category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pitch of this PCB socket is 0.8 mm, which is designed for precise and reliable connections in compact circuit board designs.

This model features 40 female contacts, allowing for optimal connectivity in board-to-board applications.

The maximum operating temperature for this socket is 85°C, making it suitable for use in harsh industrial environments.

It operates at a voltage rating of 50 V, which aligns with common electrical standards for sensitive PCB components.

The housing is made from Liquid Crystal Polymer (LCP), while the contacts are copper alloy with gold plating for enhanced conductivity and corrosion resistance.

This PCB socket supports a maximum current of 500 mA, suitable for various electronic applications.

It is designed for surface mount technology (SMT) with a vertical orientation, facilitating efficient PCB assembly and layout.

The withstanding voltage of this connector is 500 V AC, ensuring safety and performance in electrical applications.

The minimum operating temperature for this model is -55°C, allowing it to function in extreme cold conditions.

This socket supports a board-to-board connector system, making it suitable for applications that require secure connections between PCBs.

The gold plating on the copper alloy contacts provides excellent signal integrity and corrosion resistance, enhancing the reliability of the connections.

This PCB socket is manufactured in China, ensuring compliance with relevant manufacturing standards.
