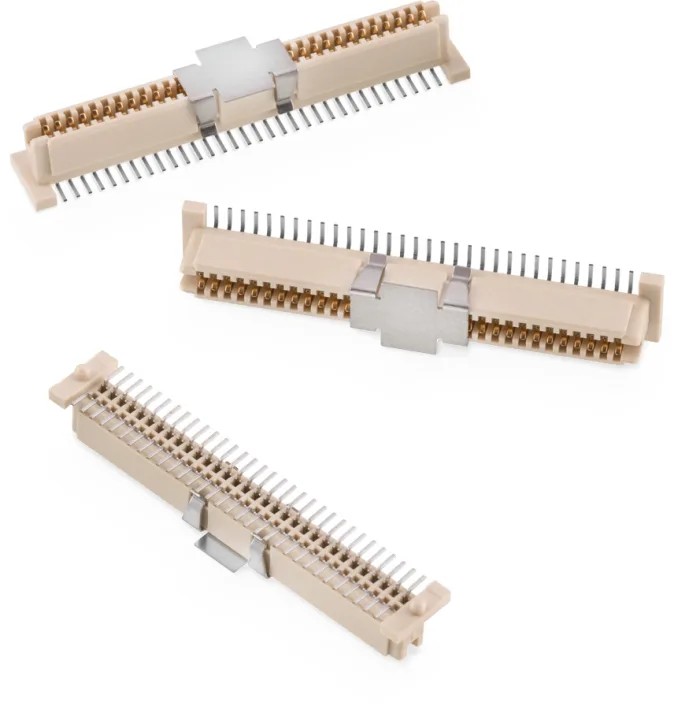

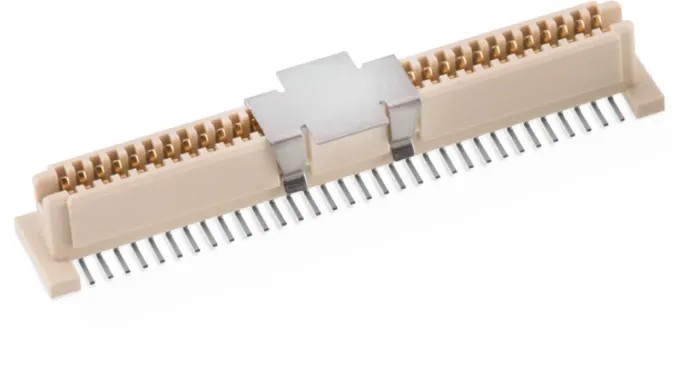

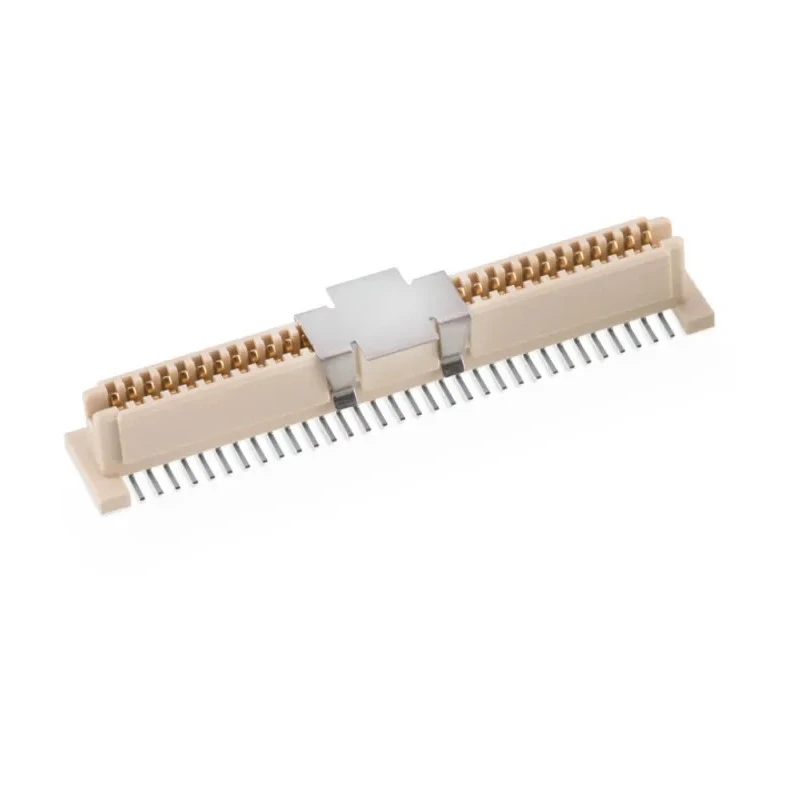

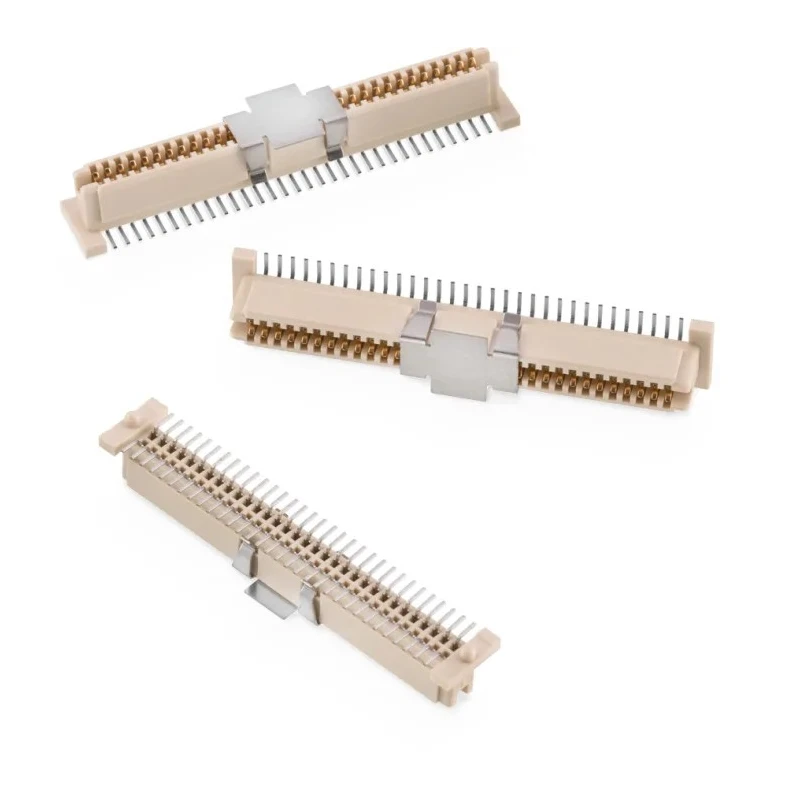

Wurth Elektronik WR-BTB Series Vertical Surface PCB Socket 64-Contact 1 Row 1 mm Pitch Solder 658105303064
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-BTB |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 64 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 250 V (AC) |
| Insulator Material | LCP |
Key Features
- Features a single row with 64 female contacts.
- 1 mm pitch ensures compact and precise connectivity.
- Terminated by solder type suitable for surface mount technology.
- Housing made from Liquid Crystal Polymer for high durability.
- Operates reliably between -55°C and 85°C temperature range.
- Contact material is phosphor bronze with gold plating for excellent conductivity.
- Supports a current rating of 1 A and voltage rating of 100 V.
- Designed for vertical orientation in board-to-board connector systems.
Product Description
Wurth Elektronik 658105303064 WR-BTB Series vertical surface PCB socket is designed for efficient and reliable board-to-board connections in electronic assemblies. Featuring 64 female contacts arranged in a single row with a precise 1 mm pitch, this component provides compact interconnection solutions suitable for various industrial and electronic applications.
The socket's housing is constructed from high-quality Liquid Crystal Polymer, ensuring durability and heat resistance, which supports operational temperatures ranging from -55°C to 85°C. Contacts are made from phosphor bronze and plated with gold, combining excellent electrical conductivity with corrosion resistance. It carries a current of 1 A and can handle voltages of up to 100 V, withstanding surges of up to 250 V (AC).
This socket uses solder termination suitable for surface mount technology (SMT) and is oriented vertically to facilitate streamlined PCB layouts. The insulator material LCP further enhances thermal and mechanical stability, making this socket ideal for demanding environments in industrial electronics, manufacturing, telecommunications, and instrumentation.
Single-row socket with 64 female contacts. 1 mm pitch designed for compact PCB layouts. Solder termination for SMT assembly compatibility. Liquid Crystal Polymer housing for thermal resilience. Phosphor bronze contact material with gold plating.
Current rating of 1 A and voltage rating of 100 V. Operating temperature from -55°C to 85°C. Vertical orientation for board-to-board connections. Insulator material LCP for enhanced stability. Withstands 250 V (AC) voltage for reliable performance.
This Wurth Elektronik socket series is suitable for applications in electronic manufacturing, industrial equipment, communication devices, and other PCB interconnection requirements. It ensures dependable electrical contact under various environmental conditions and mechanical stresses.
Explore the broad range of Wurth Elektronik electronic components and PCB Sockets available for sophisticated electronic design and assembly solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB socket is 1 mm, allowing for compact and precise connectivity in electronic assemblies.
This model features 64 female contacts arranged in a single row, suitable for board-to-board connections.
The maximum voltage rating for this socket is 100 V, withstanding surges of up to 250 V (AC).
It supports a current rating of 1 A, making it suitable for various electronic applications.
The housing is made from Liquid Crystal Polymer, while the contacts are made from phosphor bronze with gold plating for enhanced conductivity.
This socket operates reliably between -55°C and 85°C, making it suitable for a variety of environments.
It uses solder termination, which is compatible with surface mount technology (SMT) assembly.
This model is designed for vertical orientation, facilitating streamlined PCB layouts.
The insulator material is Liquid Crystal Polymer (LCP), which enhances thermal and mechanical stability.
It is suitable for applications in electronic manufacturing, industrial equipment, communication devices, and other PCB interconnection requirements.
This socket has a single row configuration, which helps in maintaining a compact design.
The contact gender of this socket is female, designed for reliable connections in board-to-board systems.
